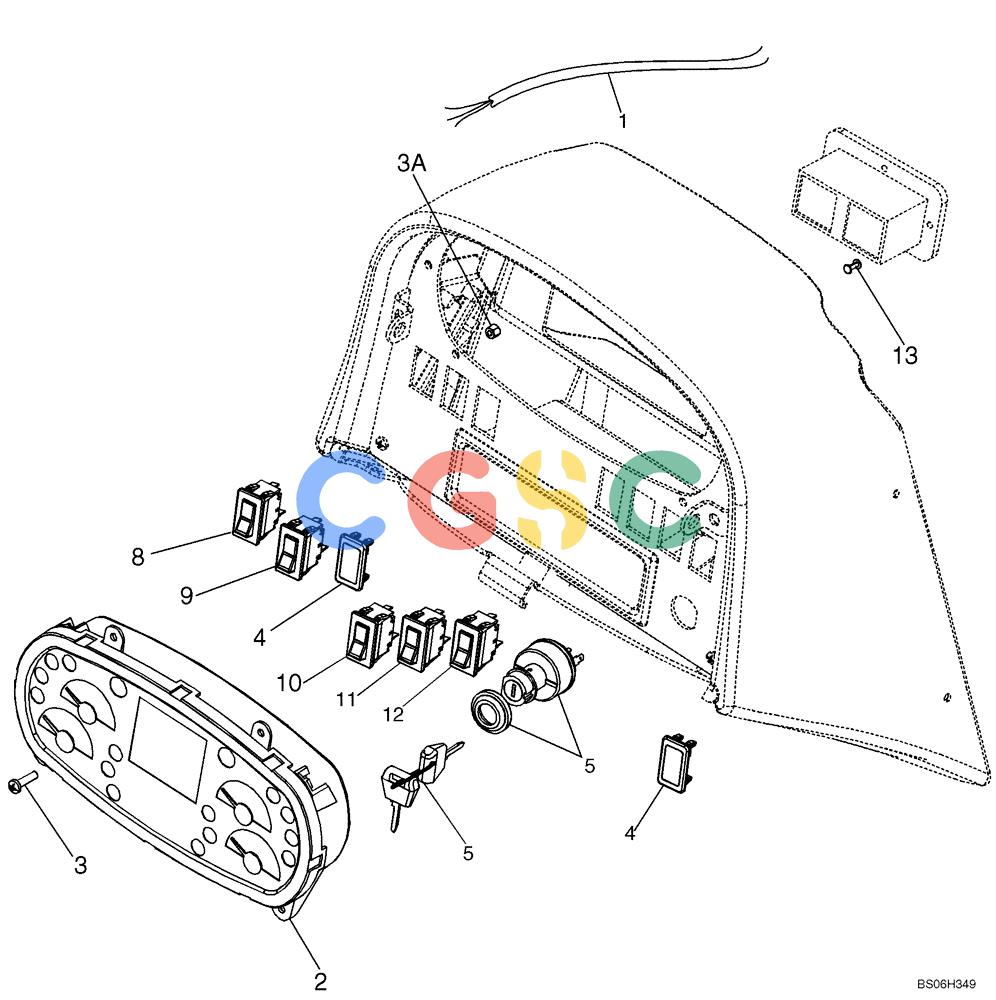

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-12) - HARNESS, FRONT CONSOLE AND SWITCHES - CANOPY, ROPS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87370163 | [1] | WIRE HARNESS | BURHARNESS, WIRE, Front Console; Dashboard, Canopy Models |
| 2. | 87598632 | [1] | CLUSTER, INSTR. | BURInstrument Cluster; Component Parts Not Serviced Separately |
| 3. | 540-701 | [4] | SCREW,Cross Pan Hd, M5 x 20 | CASSCREW Superseded by part number: 86511827 |
| 3A. | 832-10405 | [4] | NUT,M5 x .8, Cl 8 | CAS Superseded by part number: 86639241 |
| 4. | 126844A1 | [2] | PLUG | CASSwitch Hole Superseded by part number: 86000535 |
| 5. | 427182A1 | [1] | IGNITION SWITCH | RACIncludes Keys #86502201 Superseded by part number: 87416177 |
| 8. | 87536793 | [1] | LIGHT SWITCH | BURRocker; Front Work Lamps |
| 9. | 87536792 | [1] | LIGHT SWITCH | BURRocker; Rear Work Lamps |
| 10. | 87410087 | [1] | ROCKER SWITCH | BURRocker; Momentary, Up/Down |
| 11. | 87410091 | [1] | ROCKER SWITCH | BURRocker; Momentary, Display/Enter |
| 12. | 386852A2 | [1] | SWITCH | CASRocker; Horn |
| 13. | 86837478 | [4] | RIVET,Pop, 1/8" x .650" | RAC1/8 x 21/32 Rivet; Dashboard Harness to Rear of Console |
