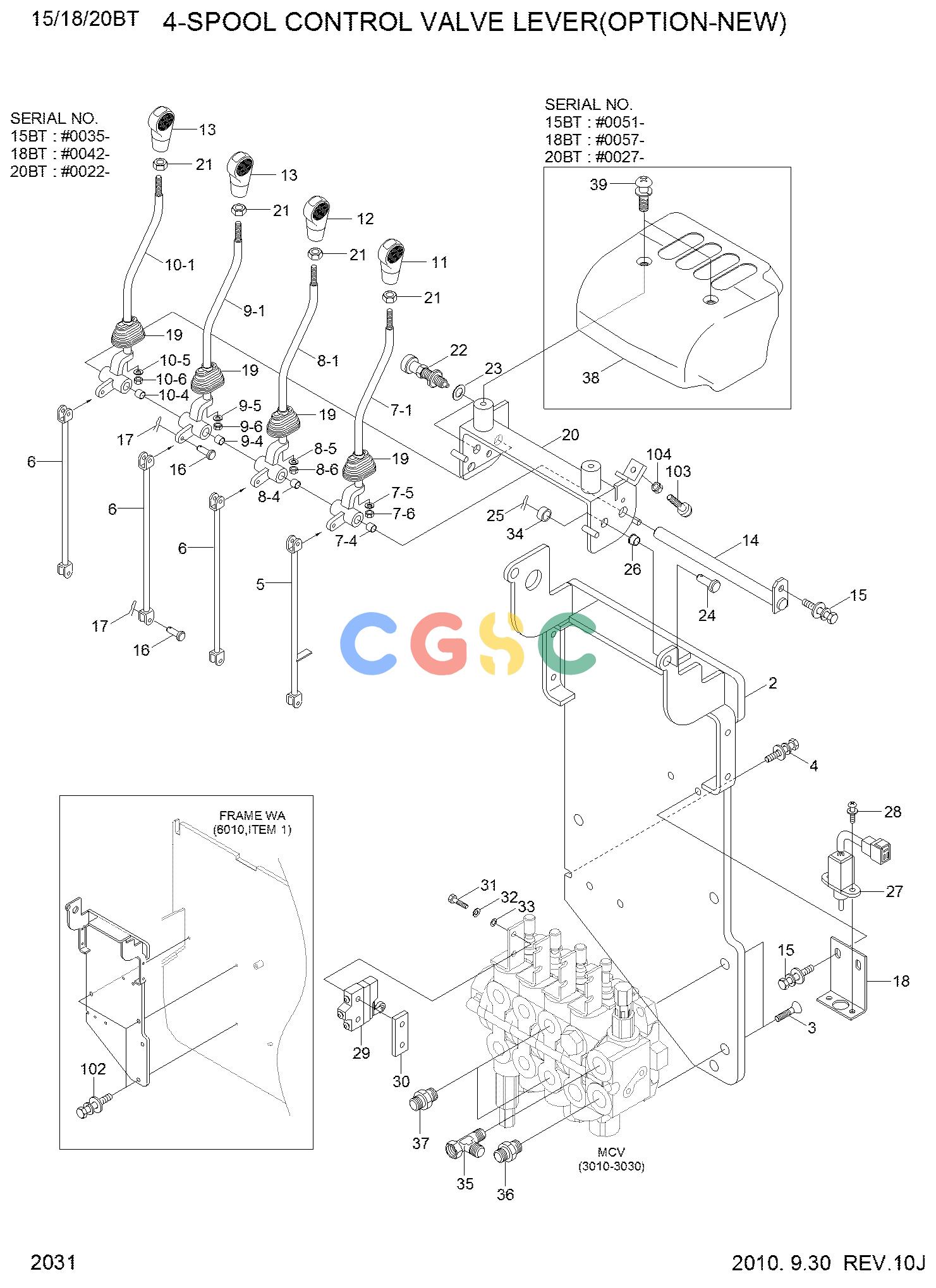

现代零件查询16/18/20B-7 4-SPOOL CONTROL VALVE LEVER(OPTION-NEW)EPC Hyundai _现代Hyundai_工程机械

Pos.	Part No	Qty	Parts name	Comments
.	31FH-40370	[1]	VALVE & LEVER SUB-4SP	16B
.	31FH-40371	[1]	VALVE & LEVER SUB-4SP	16B
.	31FH-40372	[1]	MCV & LEVER SUB AY-4SP	16B
.	31FH-40370	[1]	VALVE & LEVER SUB-4SP	18B
.	31FH-40371	[1]	VALVE & LEVER SUB-4SP	18B
.	31FH-40372	[1]	MCV & LEVER SUB AY-4SP	18B
.	31FH-40370	[1]	VALVE & LEVER SUB-4SP	20B
.	31FH-40371	[1]	VALVE & LEVER SUB-4SP	20B
.	31FH-40372	[1]	MCV & LEVER SUB AY-4SP	20B
2.	31FH-40170	[1]	BRACKET-VALVE MTG
3.	81HJ-20261	[2]	BOLT-SOCKET FLAT HEAD
4.	S037-103026	[1]	BOLT-W/WASHER
5.	31FY-40720	[1]	ROD-LIFT
6.	31FY-40710	[3]	ROD
7.	31FY-40611	[1]	LEVER-LIFT	16B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	16B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	16B-7
7.	31FY-40611	[1]	LEVER-LIFT	18B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	18B-7
7.	31FY-40611	[1]	LEVER-LIFT	18B-7
7.	31FY-40611	[1]	LEVER-LIFT	20B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	18B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	20B-7
7.	31FY-40611	[1]	LEVER-LIFT	20B-7
7.	31FY-40612	[1]	LEVER ASSY-LIFT	20B-7
7-1.	31FY-40612-1	[1]	LEVER
7-4.	31FY-40612	[1]	LEVER ASSY-LIFT
7-5.	S411-100006	[1]	WASHER-SPRING
7-6.	S205-101006	[1]	NUT-HEX
8.	31FY-40621	[1]	LEVER-TILT	16B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	16B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	16B-7
8.	31FY-40621	[1]	LEVER-TILT	18B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	18B-7
8.	31FY-40621	[1]	LEVER-TILT	18B-7
8.	31FY-40621	[1]	LEVER-TILT	20B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	18B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	20B-7
8.	31FY-40621	[1]	LEVER-TILT	20B-7
8.	31FY-40622	[1]	LEVER ASSY-TILT	20B-7
8-1.	31FY-40621-1	[1]	LEVER
8-4.	31FY-40622	[1]	LEVER ASSY-TILT
8-5.	S411-100006	[1]	WASHER-SPRING
8-6.	S205-101006	[1]	NUT-HEX
9.	31FY-40631	[1]	LEVER-AUX1	16B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	16B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	16B-7
9.	31FY-40631	[1]	LEVER-AUX1	18B-7
9.	31FY-40631	[1]	LEVER-AUX1	18B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	18B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	18B-7
9.	31FY-40631	[1]	LEVER-AUX1	20B-7
9.	31FY-40631	[1]	LEVER-AUX1	20B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	20B-7
9.	31FY-40632	[1]	LEVER ASSY-AUX1	20B-7
9-1.	31FY-40632-1	[1]	LEVER
9-4.	31FY-40632	[1]	LEVER ASSY-AUX1
9-5.	S411-100006	[1]	WASHER-SPRING
9-6.	S205-101006	[1]	NUT-HEX
10.	31FY-40641	[1]	LEVER-AUX2	16B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	16B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	16B-7
10.	31FY-40641	[1]	LEVER-AUX2	18B-7
10.	31FY-40641	[1]	LEVER-AUX2	18B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	18B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	18B-7
10.	31FY-40641	[1]	LEVER-AUX2	20B-7
10.	31FY-40641	[1]	LEVER-AUX2	20B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	20B-7
10.	31FY-40642	[1]	LEVER ASSY-AUX2	20B-7
10-1.	31FY-40642-1	[1]	LEVER
10-4.	31FY-40642	[1]	LEVER ASSY-AUX2
10-5.	S411-100006	[1]	WASHER-SPRING
10-6.	S205-101006	[1]	NUT-HEX
11.	31HA-40500	[1]	KNOB-MINI,LIFT
12.	31HA-40510	[1]	KNOB-MINI,TILT
13.	31HA-40520	[2]	KNOB-MINI,ATTACH	NON SIDE SHIFT
13.	31HA-40520	[1]	KNOB-MINI,ATTACH	SIDE SHIFT
13.	31HA-40530	[1]	KNOB-MINI,SIDE SHIFT	SIDE SHIFT
14.	31FY-40660	[1]	SHAFT
15.	S035-061526	[3]	BOLT-W/WASHER
16.	S491-060222	[8]	PIN-CLEVIS
17.	S501-060002	[8]	PIN-SELF LOCKING
18.	31FH-40070	[1]	BRACKET-LIFT SENSOR
19.	71FH-16220	[4]	BELLOWS-LEVER
20.	31FY-40652	[1]	BRACKET-LEVER MTG
21.	S205-101006	[4]	NUT-HEX
22.	31FY-40670	[1]	PLUNGER	16B
22.	31FY-40760	[1]	PLUNGER	16B
22.	31FY-40670	[1]	PLUNGER	18B
22.	31FY-40760	[1]	PLUNGER	18B
22.	31FY-40670	[1]	PLUNGER	20B
22.	31FY-40760	[1]	PLUNGER	20B
23.	31FY-40691	[1]	WASHER-SPECIAL
24.	S491-100282	[2]	PIN-CLEVIS
25.	S501-100002	[2]	PIN-SELF LOCKING
26.	S741-100818	[2]	DU BUSHING-FLANGE
27.	B51830060	[1]	SENSOR-LIFT
28.	S131-051546	[2]	SCREW-W/WASHER
29.	21FY-72060	[1]	SWITCH ASSY-4 SPOOL	16B
29.	21FY-72061	[1]	SWITCH ASSY-4 SPOOL	16B
29.	21FY-72060	[1]	SWITCH ASSY-4 SPOOL	18B
29.	21FY-72061	[1]	SWITCH ASSY-4 SPOOL	18B
29.	21FY-72060	[1]	SWITCH ASSY-4 SPOOL	20B
29.	21FY-72061	[1]	SWITCH ASSY-4 SPOOL	20B
29-1.	21FH-02260	[4]	SWITCH-MICRO	16B,NOT SHOWN
29-1.	21FH-02280	[4]	SWITCH-MICRO	16B,NOT SHOWN
29-1.	21FH-02260	[4]	SWITCH-MICRO	18B,NOT SHOWN
29-1.	21FH-02280	[4]	SWITCH-MICRO	18B,NOT SHOWN
29-1.	21FH-02260	[4]	SWITCH-MICRO	20B,NOT SHOWN
29-1.	21FH-02280	[4]	SWITCH-MICRO	20B,NOT SHOWN
29-2.	21FY-75050	[1]	HARNESS-4 SPOOL	NOT SHOWN
30.	B52110070	[4]	BRACKET
31.	S015-040306	[8]	BOLT-HEX
32.	S411-040006	[8]	WASHER-SPRING
32.	S411-050006	[8]	WASHER-SPRING	16B
32.	S411-040006	[8]	WASHER-SPRING
32.	S411-050006	[8]	WASHER-SPRING	18B
32.	S411-040006	[8]	WASHER-SPRING
32.	S411-050006	[8]	WASHER-SPRING	20B
33.	S403-04100B	[8]	WASHER-PLAIN
33.	S403-05200B	[8]	WASHER-PLAIN	16B
33.	S403-04100B	[8]	WASHER-PLAIN
33.	S403-05200B	[8]	WASHER-PLAIN	18B
33.	S403-04100B	[8]	WASHER-PLAIN
33.	S403-05200B	[8]	WASHER-PLAIN	20B
34.	31FY-40681	[2]	SPACER
35.	31HH-20051	[1]	TEE-WITH GAUGE PORT
36.	31FG-20110	[1]	CONNECTOR
37.	31FG-80410	[2]	CONNECTOR-ORFS
38.	71FH-16211	[1]	UPPER COVER	16B
38.	71FH-16211	[1]	UPPER COVER	18B
38.	71FH-16211	[1]	UPPER COVER	20B
39.	S002-06015B	[2]	SCREW-TRUS HEAD	16B
39.	S002-06015B	[2]	SCREW-TRUS HEAD	18B
39.	S002-06015B	[2]	SCREW-TRUS HEAD	20B
102.	S035-082526	[2]	BOLT-W/WASHER
103.	71EH-13150	[1]	BUMPER-RUBBER
104.	S205-101006	[1]	NUT-HEX
