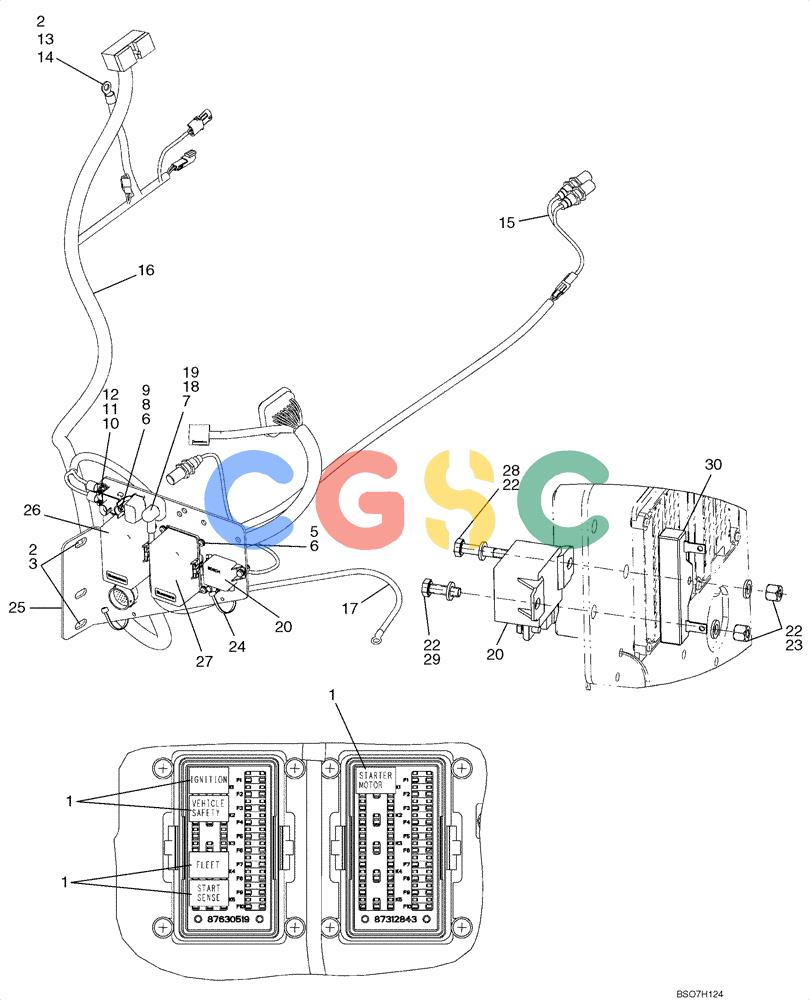

| 1. | 87696395 | [5] | RELAY | BURRelay Micro 5 Pin 280 Series (24V) |
| 2. | 140028 | [3] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 3. | 86500689 | [2] | NUT,M10, Cl 10 | NH |
| 5. | 86511826 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 16mm | FOR |
| 6. | 86588450 | [9] | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | ZED |
| 7. | 87315250 | [1] | MODULE | FARPower Relay |
| 8. | 840-1545 | [1] | SCREW,Phillips Drive, Pan HD, M5 x 45mm, Cl 4.8 | FAR |
| 9. | 86639241 | [1] | NUT,M5 x .8, Cl 8 | FAR |
| 10. | 86632601 | [2] | LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk | FORExternal Tooth Lock, 8 mm |
| 11. | 86625072 | [4] | NUT | BRRNut |
| 12. | 83990583 | [4] | LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk | BRR |
| 13. | 43138 | [1] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8 | NH |
| 14. | 86632602 | [1] | LOCK WASHER,Ext Tooth, M10 | FARExternal Tooth Lock, 10 mm |
| 15. | 87596056 | [2] | SWITCH | BURProximity Switch |
| 16. | 87370164 | [1] | WIRE HARNESS | BURMain |
| 17. | 87608546 | [1] | CABLE | BURWire, Alternator |
| 18. | 893-11008 | [1] | LOCK WASHER,Ext Tooth, M8 | CAS Superseded by part number: 86632601 |
| 19. | 832-10408 | [1] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 20. | 1546485C1 | [1] | RELAY,24V | CAS24V Power |
| 22. | 895-11006 | [4] | WASHER,M6 x 12mm OD x 1.6mm | CAS Superseded by part number: 86588450 |
| 23. | 832-10406 | [2] | NUT,M6 x 1, Cl 8 | CAS |
| 24. | L18331 | [2] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 25. | 87630667 | [1] | BRACKET, SUPPORTING | BURBRACKET, Fuse and Relay mounting |
| 26. | 87630519 | [1] | BOX, FUSE | BURRELAY, Fuse BoX |
| 27. | 87312843 | [1] | FUSE BOX | FAR |
| 28. | 814-6040 | [1] | BOLT,Hex, M6 x 1 x 40mm, Cl 8.8 | CAS Superseded by part number: 120102 |
| 29. | 614-6020 | [1] | BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120100 |
| 30. | F22316 | [1] | RESISTOR,75 Ohms 0.2 Amps DC | CASPorcelain |
