纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-16) - CONSOLE, FRONT - CAB New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
302 次

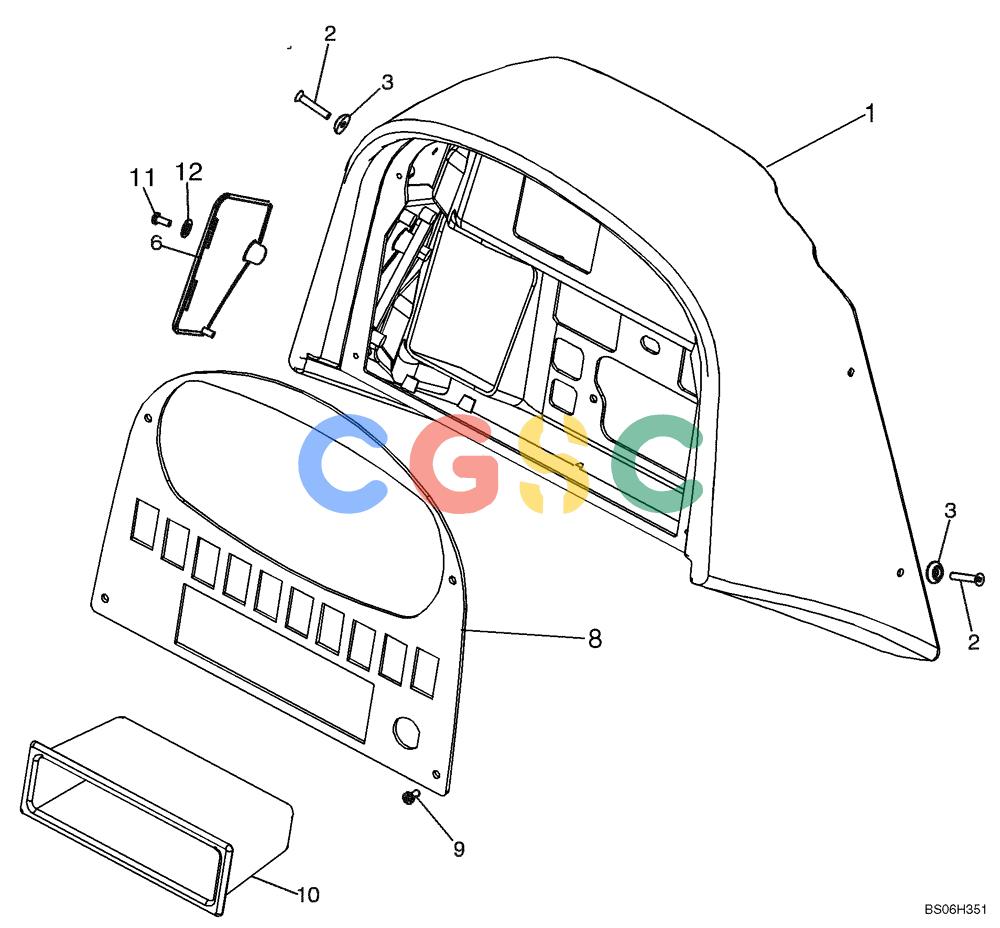

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87577762 | [1] | CONSOLE | BURFront Console |
| 2. | 543-713 | [4] | SCREW,Phil Flat Hd, M6 x 35, 4.8 | CAS |
| 3. | 79076208 | [4] | WASHER | LECNylon |
| 6. | 87434936 | [1] | PROTECTIVE COVER | BUROuter |
| 8. | 87541039 | [1] | FRONT PLATE | BURFace Plate, Front Console |
| 9. | 540-712 | [4] | SCREW,Cross Pan Hd, M5 x 12 | CAS |
| 10. | 4417913 | [1] | CONTAINER | BUR |
| 12. | 87428441 | [1] | RETAINER | BURM5 |
