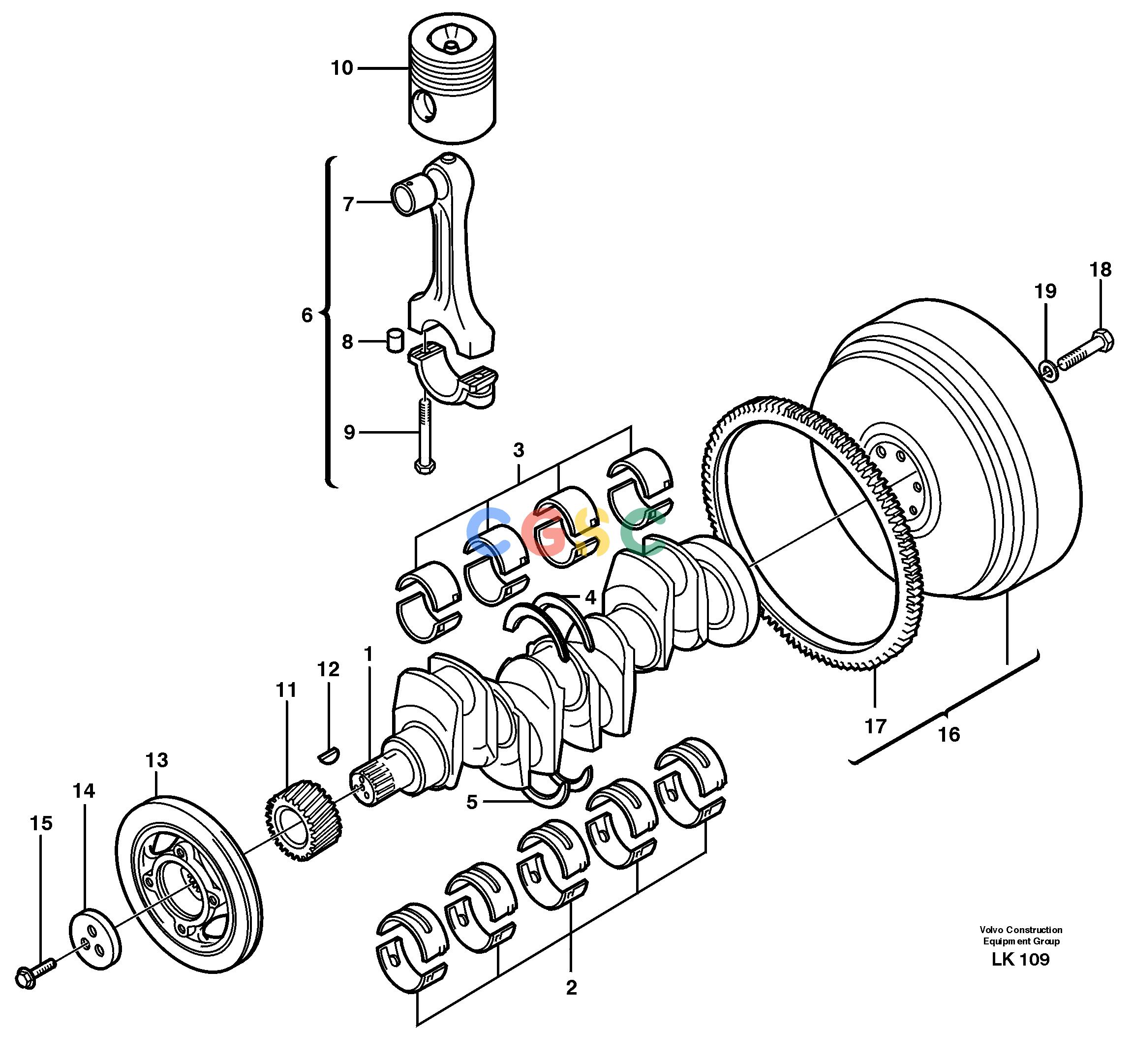

沃尔沃零件查询EW140 Crankshaft and related partsSER NO 1001-1487 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11994472
|
[1] |
Crankshaft
|
|
| 2. |
VOE483350
|
[1] |
Main bearing kit
|
STD SZ
|
| |
VOE483351
|
[1] |
Main bearing kit
|
0,25MM U SZ
|
| |
VOE483352
|
[1] |
Main bearing kit
|
0,50MM U SZ
|
| |
VOE483353
|
[1] |
Main bearing kit
|
0,75MM U SZ
|
| 3. |
VOE11997824
|
[1] |
Big End Brg Kit
|
STD SZ
|
| |
VOE11997825
|
[1] |
Big End Brg Kit
|
0,25MM U SZ
|
| |
VOE11997826
|
[1] |
Big End Brg Kit
|
0,50MM U SZ
|
| |
VOE11997827
|
[1] |
Big End Brg Kit
|
0,75MM U SZ
|
| 4. |
VOE483336
|
[2] |
Thrust washer
|
STD SZ
|
| |
VOE483338
|
[2] |
Thrust washer
|
0,19MM O SZ
|
| 5. |
VOE483337
|
[2] |
Thrust washer
|
STD SZ
|
| |
VOE483339
|
[2] |
Thrust washer
|
0,19MM O SZ
|
| 6. |
VOE11703872
|
[4] |
Connecting rod kit
|
|
| 7. |
VOE3976525
|
[4] |
Bushing
|
|
| 8. |
VOE11999005
|
[8] |
Sleeve
|
|
| 9. |
VOE11999004
|
[8] |
Screw
|
|
| 10. |
|
[4] |
Piston kit
|
|
| 11. |
VOE11997833
|
[1] |
Gear
|
|
| 12. |
VOE483448
|
[1] |
Key
|
|
| 13. |
VOE11707258
|
[1] |
Pulley
|
|
| 14. |
VOE11997970
|
[1] |
Block
|
|
| 15. |
VOE11997971
|
[3] |
Screw
|
|
| 16. |
VOE11705274
|
[1] |
Flywheel
|
|
| 17. |
VOE11997947
|
[1] |
Gear ring
|
|
| 18. |
VOE11997945
|
[6] |
Bolt
|
|
| 19. |
VOE11997946
|
[6] |
Washer
|
|
