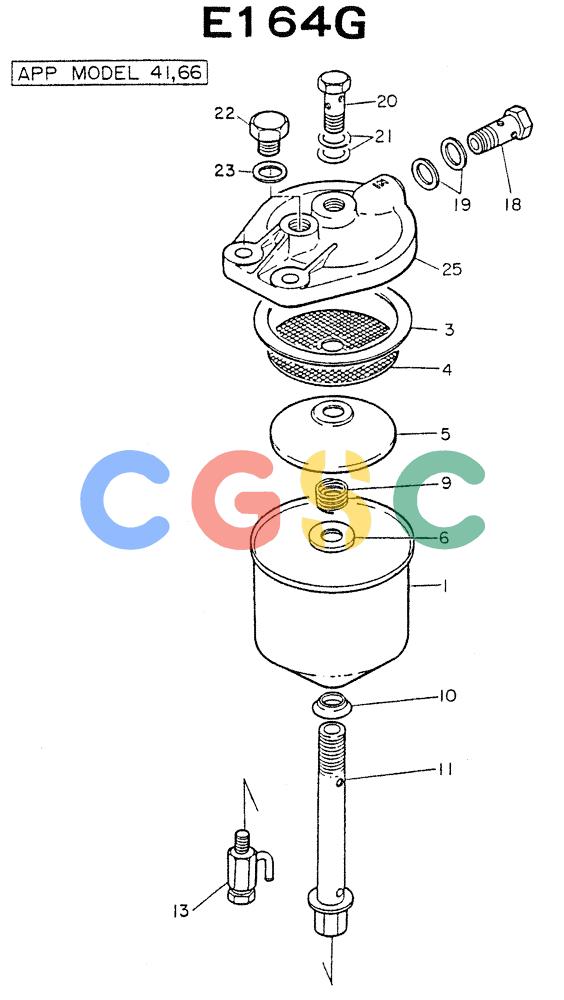

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (05-011) - STRAINER FUEL (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VG1640096016 | [1] | STRAINER ELEMENT | KOBSTRAINER-FUEL,FOR 1 ONLY |
| 1-25. | VG1640096063 | [1] | STRAINER ELEMENT | KOBSTRAINER-FUEL,FOR 2 ONLY (NOT FOR SALE INDIVIDUALLY) |
| 1. | VG1644599000 | [1] | BODY,FOR 1 ONLY | |
| 1. | VG1644599203 | [1] | CASE | KOBBODY,FOR 2 ONLY (NOT FOR SALE INDIVIDUALLY) |
| 3. | VG1644390000 | [1] | GASKET | KOBGASKET |
| 4. | VG1642199002 | [1] | SCREEN | KOBSCREEN |
| 5. | VG1644899006 | [1] | BAFFLE | |
| 6. | VG1644999007 | [1] | STOP | KOBSTOPPER |
| 9. | VG1644999006 | [1] | SPRING | KOBSPRING |
| 10. | VG1642837701 | [1] | GASKET | KOBGASKET |
| 11. | VG1644699013 | [1] | PRESSURE SWITCH | KOBBOLT-CENTER |
| 13. | VG1645299015 | [1] | COCK | KOBCOCK ASSY-DRAIN |
| 18. | VG1645499002 | [1] | SPECIAL BOLT | KOBBOLT-CONNECTOR Superseded by part number: 76550954 |
| 19. | VG0135122144 | [2] | GASKET | KOBGASKET |
| 20. | VG1645499002 | [1] | SPECIAL BOLT | KOBBOLT-CONNECTOR Superseded by part number: 76550954 |
| 21. | VG0135122144 | [2] | GASKET | KOBGASKET |
| 22. | VG1530337500 | [1] | DRAIN PLUG | KOBPLUG-DRAIN |
| 23. | VG0135122144 | [1] | GASKET | KOBGASKET |
| 25. | VG1644290000 | [1] | COVER | KOBCOVER-UPPER |
