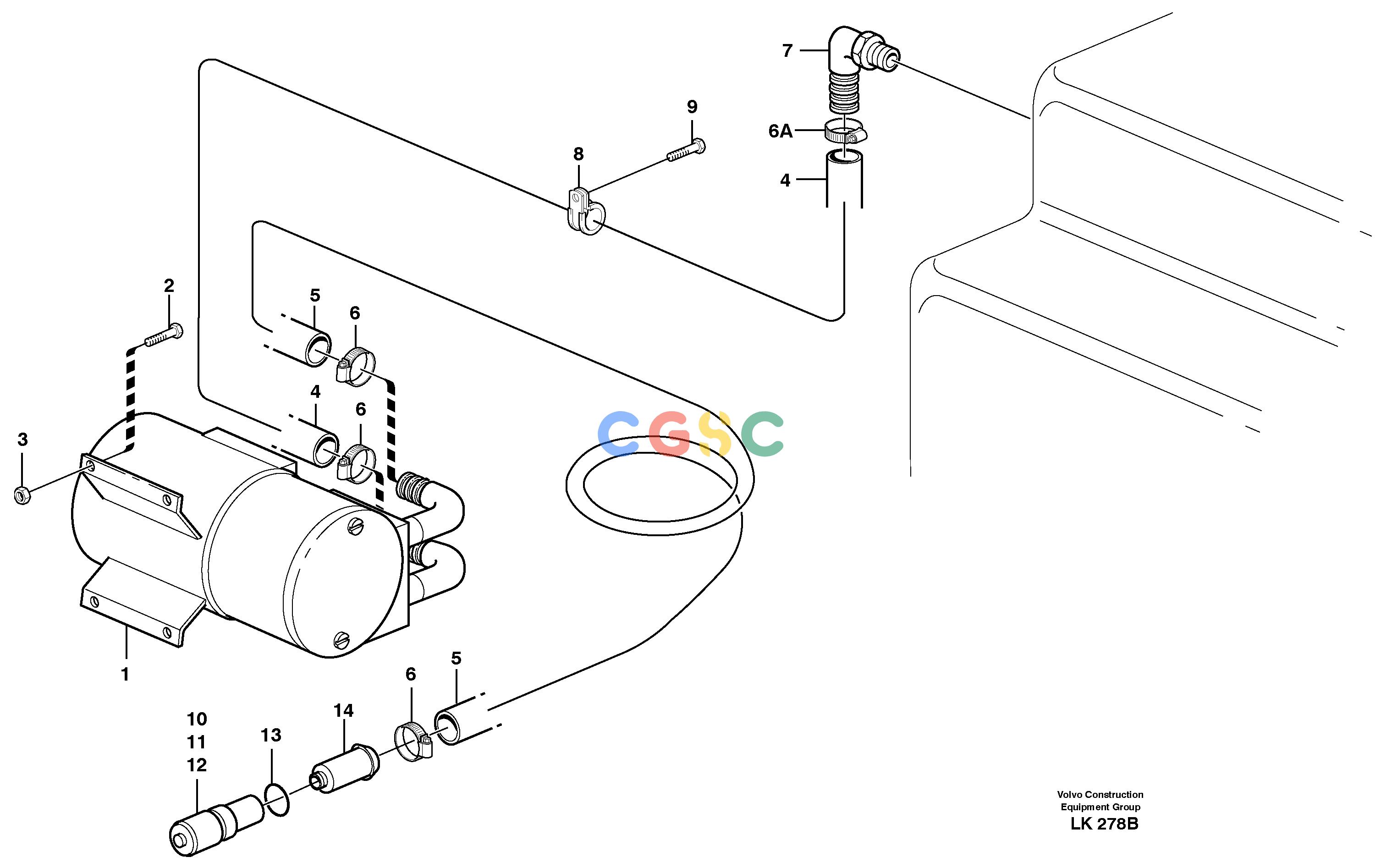

沃尔沃零件查询EW140 Fuel filling pump, electricalSER NO 1001-1487 NoneNone14302802Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Fuel pump
|
|
| 2. |
ZM2810327
|
[4] |
Screw
|
|
| 3. |
VOE13945407
|
[4] |
Nut
|
|
| 4. |
VOE14370444
|
[REQ] |
Fuel hose
|
L = 1960MM
|
| 5. |
VOE14370444
|
[REQ] |
Fuel hose
|
L = 3000MM
|
| 6. |
VOE13943472
|
[3] |
Hose clamp
|
|
| 6A. |
VOE13943472
|
[1] |
Hose clamp
|
|
| 7. |
VOE14371300
|
[1] |
Hose nipple
|
|
| 8. |
VOE943717
|
[2] |
Clamp
|
|
| 9. |
VOE13946173
|
[2] |
Screw
|
|
| 10. |
VOE14372794
|
[1] |
Suction pipe
|
|
| 11. |
VOE14079156
|
[1] |
Cover
|
|
| 12. |
VOE941762
|
[1] |
Hex. socket screw
|
|
| 13. |
VOE13949657
|
[1] |
O-ring
|
|
| 14. |
VOE11708187
|
[1] |
Non-return valve
|
|
