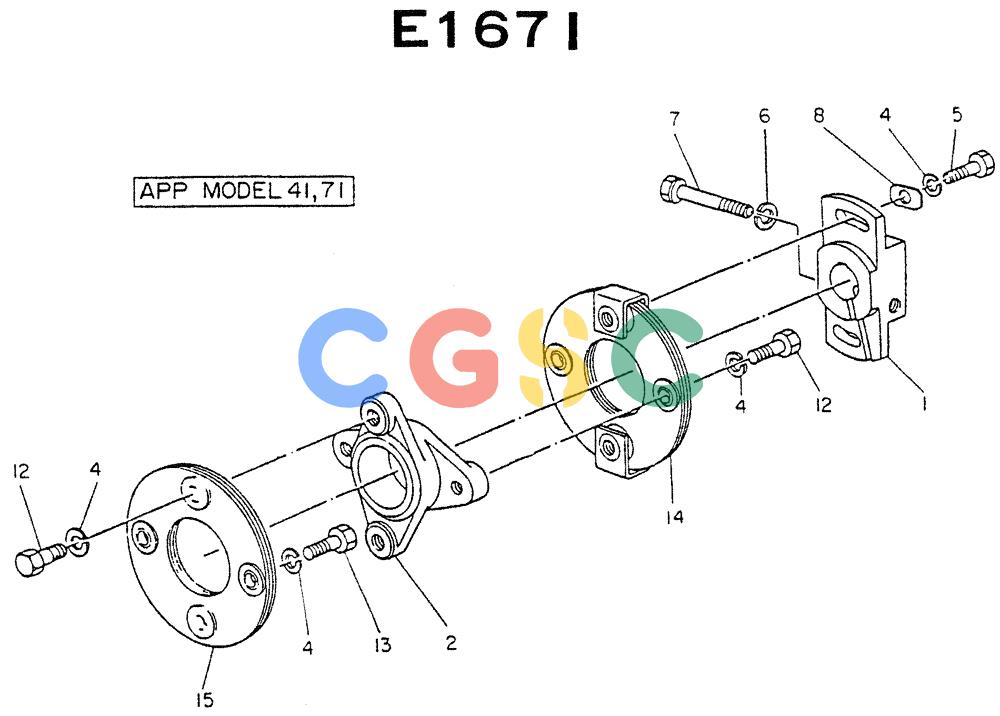

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (06-012) - COUPLING (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-15. | VG1682095002 | [1] | COUPLING | KOBCOUPLING |
| 1. | VG1682199004 | [1] | COUPLING | KOB |
| 2. | VG1682299001 | [1] | COUPLING | KOBJOW |
| 4. | VG1682590005 | [8] | WASHER-SPRING | |
| 5. | VG1682799006 | [2] | SCREW | KOB |
| 6. | VG1925699006 | [1] | WASHER-SPRING | |
| 7. | VG1682799009 | [1] | BOLT | |
| 8. | VG1683299012 | [2] | WASHER | |
| 12. | VG1682799007 | [4] | SCREW | KOB |
| 13. | VG1682799008 | [2] | BOLT | |
| 14. | VG1683399002 | [1] | PLATE | KOB |
| 15. | VG1683399003 | [1] | PLATE | KOB |
