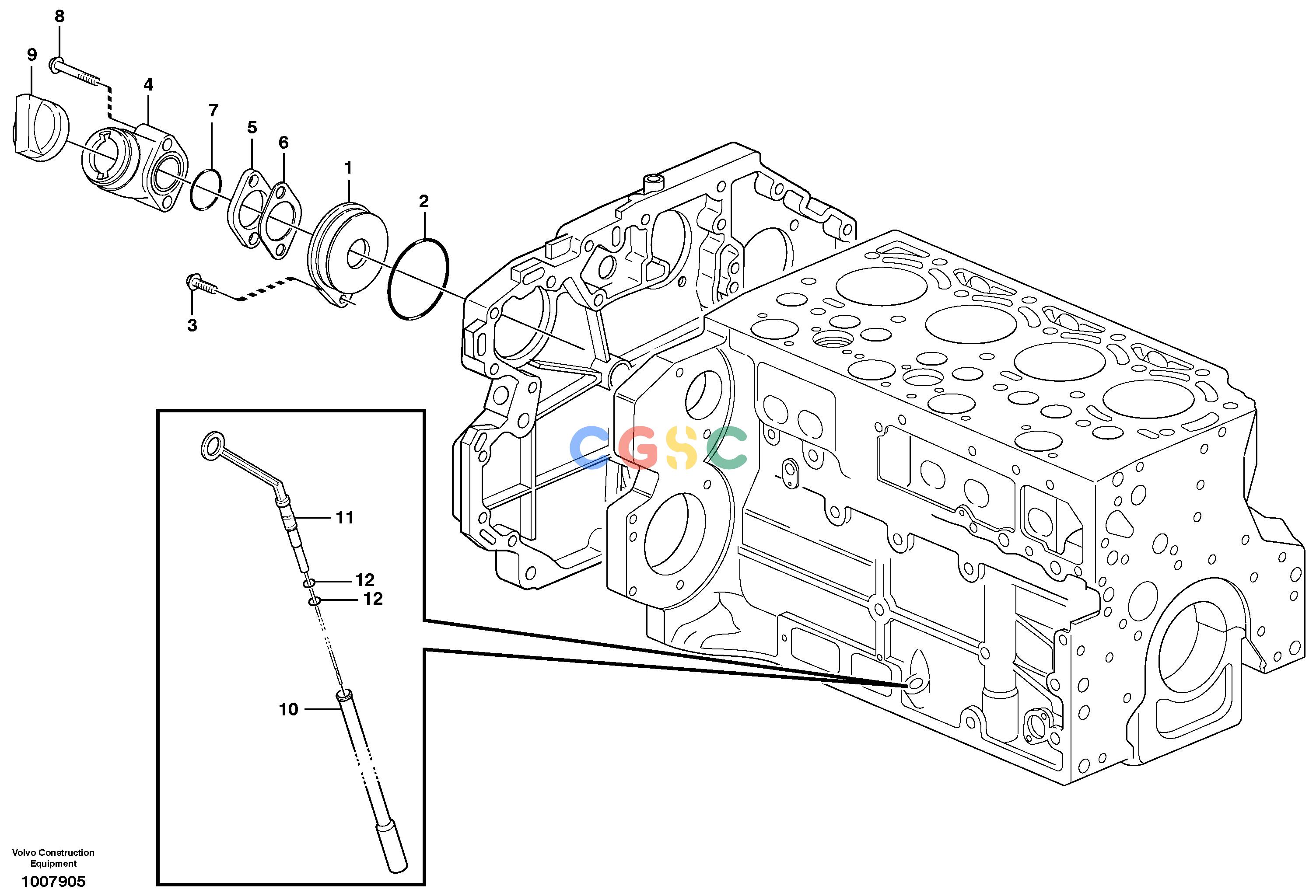

沃尔沃零件查询EW140B Oil filler and dipstickNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20558215
|
[1] |
Cover
|
|
| 2. |
VOE20405652
|
[1] |
Sealing ring
|
|
| 3. |
VOE11700269
|
[1] |
Screw
|
|
| 4. |
VOE20558211
|
[1] |
Oil Filler Pipe
|
|
| 5. |
VOE20558214
|
[1] |
Flange
|
|
| 6. |
VOE20558237
|
[1] |
Gasket
|
|
| 7. |
VOE20558213
|
[1] |
Sealing ring
|
|
| 8. |
VOE20450801
|
[2] |
Screw
|
|
| 9. |
VOE20412589
|
[1] |
Filler cap
|
|
| 10. |
VOE20450869
|
[1] |
Guide tube
|
|
| 11. |
VOE20529929
|
[1] |
Dipstick
|
ENG - 01099411
|
| 11. |
VOE20912376
|
[1] |
Dipstick
|
ENG 01099412 -
|
| 12. |
VOE20412343
|
[2] |
Sealing ring
|
|
