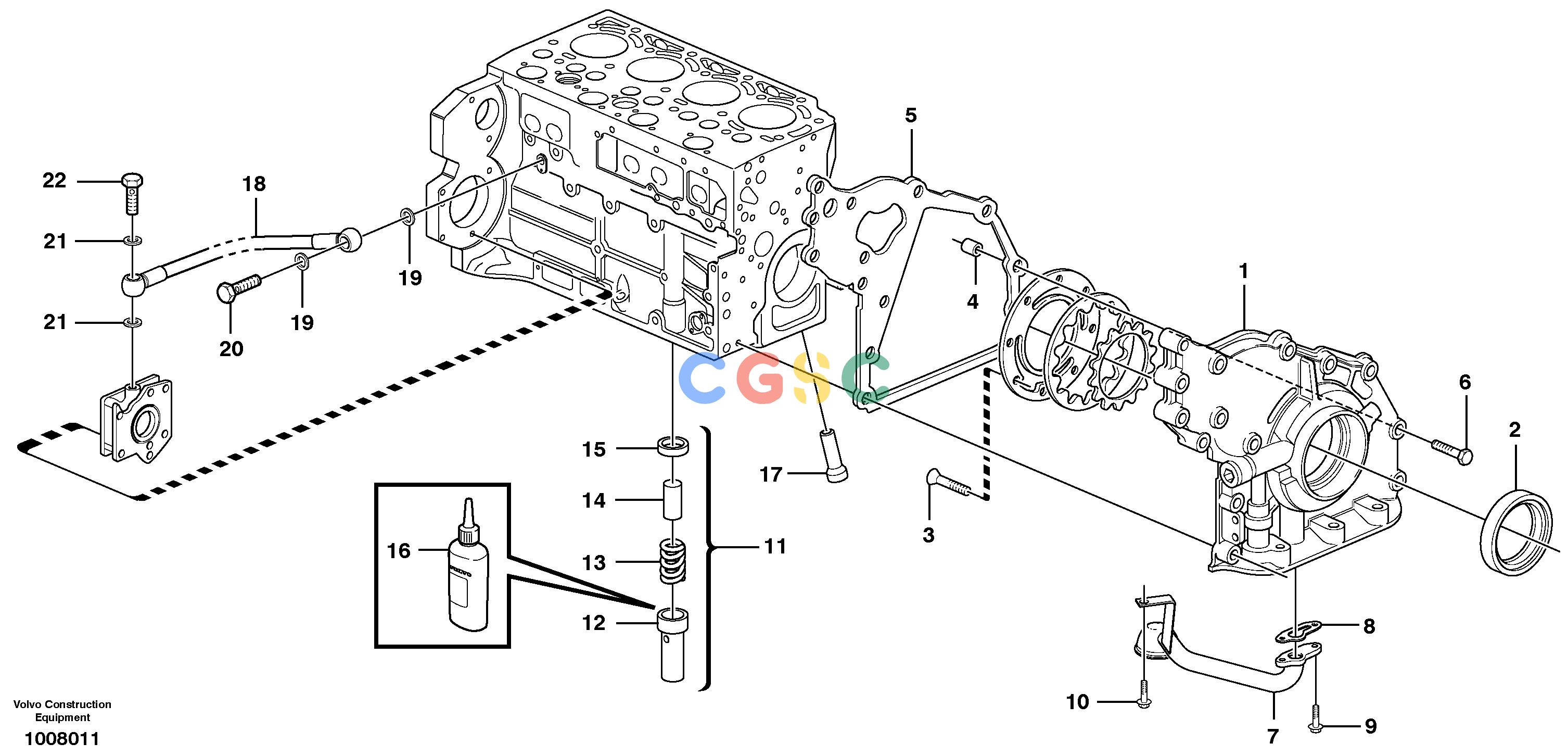

沃尔沃零件查询EW140B Lubricating oil systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE23171014
|
[1] |
Front Cover
|
|
| 2. |
VOE21486081
|
[1] |
Lip seal
|
|
| 3. |
VOE20451738
|
[8] |
Screw
|
|
| 4. |
VOE20405603
|
[1] |
Spring pin
|
|
| 5. |
VOE20742661
|
[1] |
Gasket
|
|
| 6. |
VOE20412324
|
[10] |
Screw
|
|
| 7. |
VOE20405635
|
[1] |
Suction pipe
|
|
| 8. |
VOE20405888
|
[1] |
Gasket
|
|
| 9. |
VOE13949578
|
[2] |
Screw
|
|
| 10. |
VOE20405792
|
[1] |
Screw
|
|
| 11. |
VOE11700271
|
[1] |
Delivery valve
|
|
| 12. |
VOE20405937
|
[1] |
Sleeve
|
|
| 13. |
VOE20405896
|
[1] |
Compression spring
|
|
| 14. |
VOE20405936
|
[1] |
Valve
|
|
| 15. |
VOE20405904
|
[1] |
Ring
|
|
| 16. |
|
[REQ] |
Locking agent
|
|
| 17. |
VOE20405561
|
[0005] |
Piston
|
|
| 18. |
VOE20450980
|
[1] |
Oil line
|
|
| 19. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 20. |
VOE980973
|
[1] |
Hollow screw
|
|
| 21. |
VOE13947281
|
[2] |
Gasket
|
|
| 22. |
VOE60113509
|
[1] |
Hollow screw
|
|
