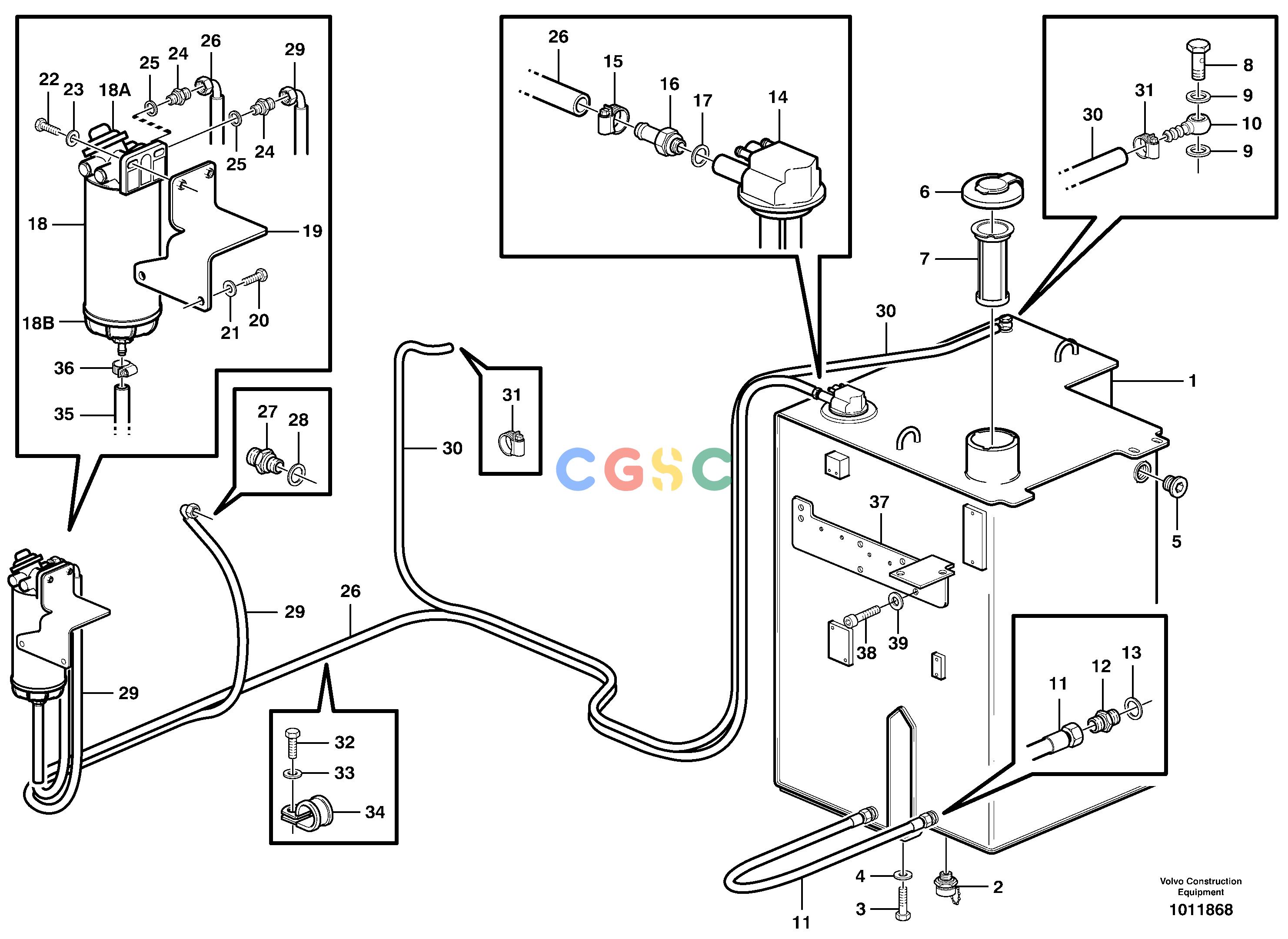

沃尔沃零件查询EW140B Fuel tank, fuel pipesNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14380075
|
[1] |
Fuel tank
|
|
| 2. |
ZM4384256
|
[1] |
Valve
|
|
| 3. |
VOE997446
|
[4] |
Hexagon screw
|
|
| 4. |
VOE60110353
|
[4] |
Washer
|
|
| 5. |
VOE14013477
|
[1] |
Tube Plug
|
|
| 6. |
VOE14528919
|
[1] |
Cap
|
|
| 7. |
VOE14537348
|
[1] |
Strainer
|
|
| 8. |
VOE941686
|
[1] |
Hollow screw
|
|
| 9. |
VOE13947622
|
[3] |
Plane gasket
|
|
| 10. |
VOE14377601
|
[1] |
Ring
|
|
| 11. |
VOE14380299
|
[1] |
Fuel hose
|
|
| 12. |
VOE14213266
|
[2] |
Fitting
|
|
| 13. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 14. |
VOE14375763
|
[1] |
Fuel level sensor
|
SE2303
|
| |
VOE11710873
|
[1] |
O-ring
|
|
| |
VOE11710874
|
[1] |
Nipple
|
|
| 15. |
VOE943471
|
[5] |
Hose clamp
|
|
| 16. |
VOE14880382
|
[1] |
Hose nipple
|
|
| 17. |
VOE13947622
|
[1] |
Plane gasket
|
|
| |
VOE11110471
|
[1] |
Water separator
|
SER NO - 8711162
|
| 18. |
VOE11110668
|
[1] |
Filter
|
|
| 18A. |
VOE11713138
|
[1] |
Filter housing
|
|
| 18B. |
VOE3943382
|
[1] |
Bowl
|
|
| |
VOE11110670
|
[1] |
Water separator
|
SER NO 8711163 -
|
| |
VOE11110668
|
[1] |
Filter
|
|
| 19. |
VOE14381109
|
[1] |
Bracket
|
|
| 20. |
VOE983242
|
[2] |
Hexagon screw
|
|
| 21. |
VOE13955894
|
[2] |
Washer
|
|
| 22. |
VOE983244
|
[2] |
Hexagon screw
|
|
| 23. |
VOE11117464
|
[2] |
Plain washer
|
|
| 24. |
VOE14213266
|
[2] |
Fitting
|
|
| 25. |
VOE13947622
|
[4] |
Plane gasket
|
|
| 26. |
VOE14380542
|
[1] |
Fuel hose
|
|
| 27. |
VOE14213266
|
[1] |
Fitting
|
|
| 28. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 29. |
VOE14377795
|
[1] |
Fuel hose
|
|
| 30. |
VOE11305547
|
[REQ] |
Fuel hose
|
L = 2600
|
| 31. |
VOE943470
|
[2] |
Hose clamp
|
|
| 32. |
VOE983241
|
[1] |
Hexagon screw
|
|
| 33. |
VOE13955894
|
[1] |
Washer
|
|
| 34. |
VOE13949747
|
[1] |
Clamp
|
|
| 35. |
VOE11305547
|
[REQ] |
Fuel hose
|
L = 150
|
| 36. |
VOE943470
|
[1] |
Hose clamp
|
|
| 37. |
VOE14375758
|
[1] |
Retainer
|
|
| 38. |
VOE983241
|
[4] |
Hexagon screw
|
|
| 39. |
VOE13955894
|
[4] |
Washer
|
|
