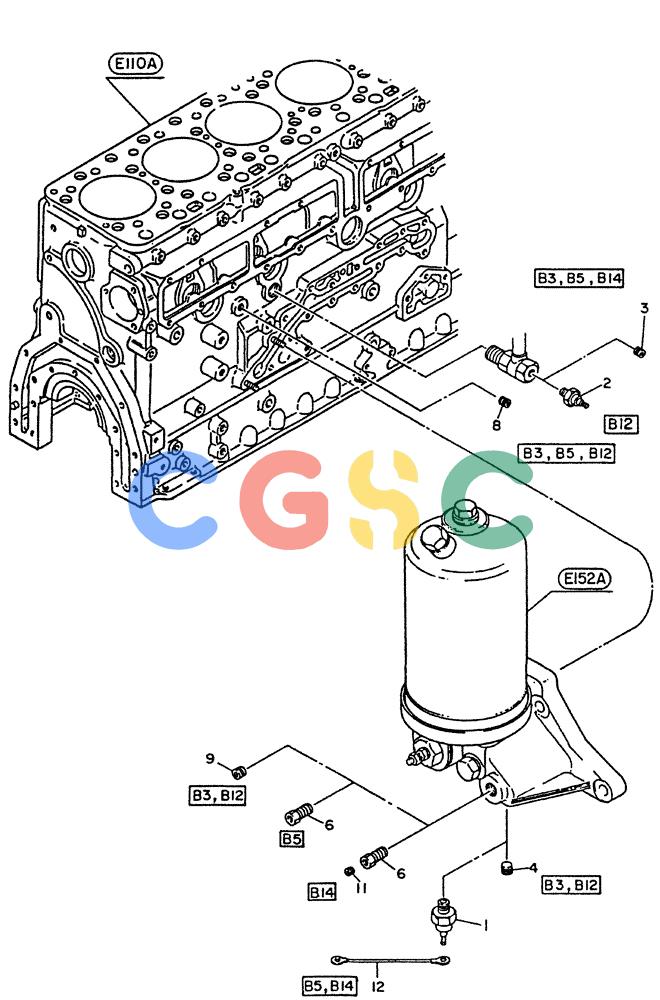

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-003) - CYLINDER BLOCK (FITTING PARTS), SWITCH CONNECTOR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | B3 | [1] | 46,55 | |
| . . | B5 | [1] | ELEC CONNECTOR | A56 |
| . . | B12 | [1] | SPARE PARTS CAT | LITSPARE PARTS CATALOGUE 43 |
| . . | B14 | [1] | 51 | |
| 1. | VG1516096001 | [1] | THERMOSTAT | KOBSWITCH-OIL PRESS (FOR B5,B14) Superseded by part number: VG25240Z550A |
| 2. | VG1516096001 | [1] | THERMOSTAT | KOBSWITCH-OIL PRESS (FOR B12) Superseded by part number: VG25240Z550A |
| 3. | VG0164202014 | [1] | SCREW | KOBPLUG-SCREW,B (FOR B3,B5,B14) |
| 4. | VG0164202014 | [1] | SCREW | KOBPLUG-SCREW,B (FOR B3,B12) |
| 6. | VG4743590003 | [1] | ADAPTER,B (FOR B5,B14) | |
| 8. | VG0164202024 | [1] | PLUG-SCREW,B (FOR B3,B5,B12) | |
| 9. | VG0164202024 | [1] | PLUG-SCREW,B (FOR B3,B12) | |
| 11. | VG0164202014 | [1] | SCREW | KOBPLUG-SCREW,B (FOR B14) |
| 12. | VG2400596000 | [1] | WIRE-HARNESS (FOR B5,B14) | |
