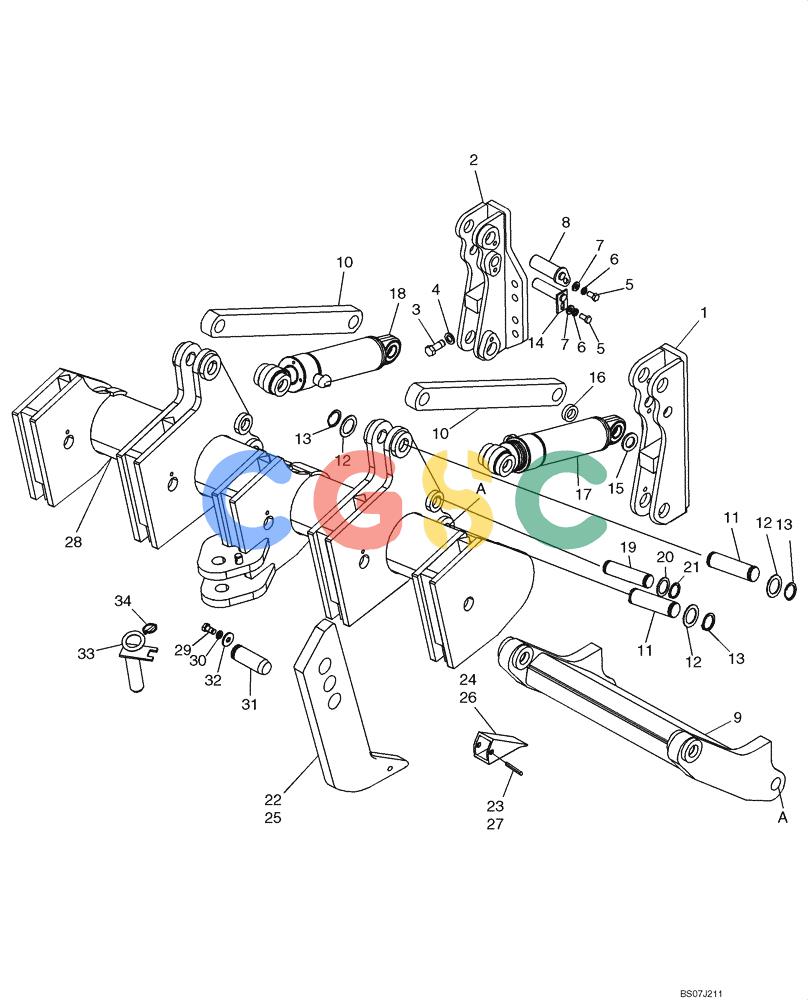

| 1. | 87599804 | [1] | BRACKET | BURBRACKET, Left Hand Plate |
| 2. | 87599803 | [1] | BRACKET | BURBRACKET, Right Hand Plate |
| 3. | 87354794 | [18] | BOLT,Hex, M24 x 60mm, Cl 10.9 | BURM24 x 60; 10.9 Locking Bolt |
| 4. | 896-11024 | [18] | WASHER,26mm ID x 44mm OD x 5mm Thk | IH Superseded by part number: 87016608 |
| 5. | 614-16030 | [6] | BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43167 |
| 6. | 892-11016 | [6] | LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk | CAS Superseded by part number: 87016618 |
| 7. | 896-15016 | [6] | WASHER,17.5mm ID x 34mm OD x 5mm Thk | CAS Superseded by part number: 82848079, 86639326 |
| 8. | 87355606 | [4] | PIN,50.8mm OD x 144.78mm L | BURPIN, 50.80 mm (2 in) dia Pin; Upper and Lower |
| 9. | 87599807 | [1] | ARM | BURLower Arm |
| 10. | 87599808 | [2] | ARM | BURUpper Arm |
| 11. | 87383799 | [4] | PIN,50.8mm OD x 179.8mm L | BURPIN, 50.80 mm (2 in) dia Arm Pin |
| 12. | 495-81282 | [8] | WASHER,2 1/16" x 3" x .109" | CASWASHER, 2-1/16 x 3 x 7/64 Superseded by part number: 86625259 |
| 13. | 103-16200 | [8] | SNAP RING,#200, Ext | CAS Superseded by part number: 84158898 |
| 14. | 87355608 | [2] | PIN,38.1mm OD x 144.78mm L | BURPIN, 38.10 mm (1-1/2 in) dia Cylinder Mounting Pin; Center |
| 15. | 87383796 | [2] | WASHER | BURWASHER, 38.89 ID x 65 OD x 6.4 mm thk; Outer Washer |
| 16. | 87383797 | [2] | WASHER | BURWASHER, 38.89 ID x 65 OD x 17.5 mm thk; Inner Ring |
| 17. | 87651091 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURCYLINDER ASSY., RIPPER; RH, See Figure 08-25 |
| 17. | 87651091R | [1] | REMAN-HYD CYLINDER | BURD150B TIER 3 (HYDRO) (10/07) |
| 17. | 87651091C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 18. | 87651121 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURCYLINDER ASSY., RIPPER; LH, See Figure 08-25 |
| 18. | 87651121R | [1] | REMAN-HYD CYLINDER | BURD150B TIER 3 (HYDRO) (10/07-) |
| 18. | 87651121C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 19. | 87383800 | [2] | PIN,44.45mm OD x 179.8mm L | BURPIN, 44.5 mm (1-3/4 in) dia Cylinder Mounting Pin |
| 20. | 495-81226 | [4] | WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk | CAS Superseded by part number: 87613252 |
| 21. | 103-16175 | [4] | SNAP RING,#175, Ext | CAS Superseded by part number: 86625149 |
| . . | 87599809 | [5] | POINT RIPPER SHANK | BHBSHANK ASSY., H & L Brand Painted Incl. 22 - 24 |
| 22. | 122237A1 | [1] | SHANK, BUCKET TOOTH | CASSHANK, Bucket Tooth |
| 23. | L32090 | [1] | BUCKET TOOTH KEY | CASNo. 25 |
| 24. | D55468 | [1] | POINT | CAS Superseded by part number: 442686A1 |
| 25. | 258725A1 | [1] | SHANK | CASSHANK, Bucket Tooth Superseded by part number: 87383124 |
| 26. | 258726A1 | [1] | TOOTH | CASTOOTH |
| 27. | 258727A1 | [1] | SPECIAL PIN | CASPIN, SPECIAL Superseded by part number: L32090 |
| 28. | 87599806 | [1] | BAR | BURBeam, Tool, Includes Drawbar |
| 29. | 409-91020 | [5] | BOLT | BUR5/8 x 1-1/4 Locking Bolt |
| 30. | 492-11062 | [5] | BEARING WASHER,5/8" | CAS Superseded by part number: 86729275 |
| 31. | 87383798 | [5] | PIN,50.8mm OD x 139.7mm L | BURHeadless Pin, 50.80 mm (2 in) dia |
| 32. | 419223A1 | [5] | WASHER | BURHardened Washer |
| 33. | 87339515 | [1] | PIN | BURPIN, Drawbar |
| 34. | A30338 | [1] | PIN | CAS Superseded by part number: 270184 |
