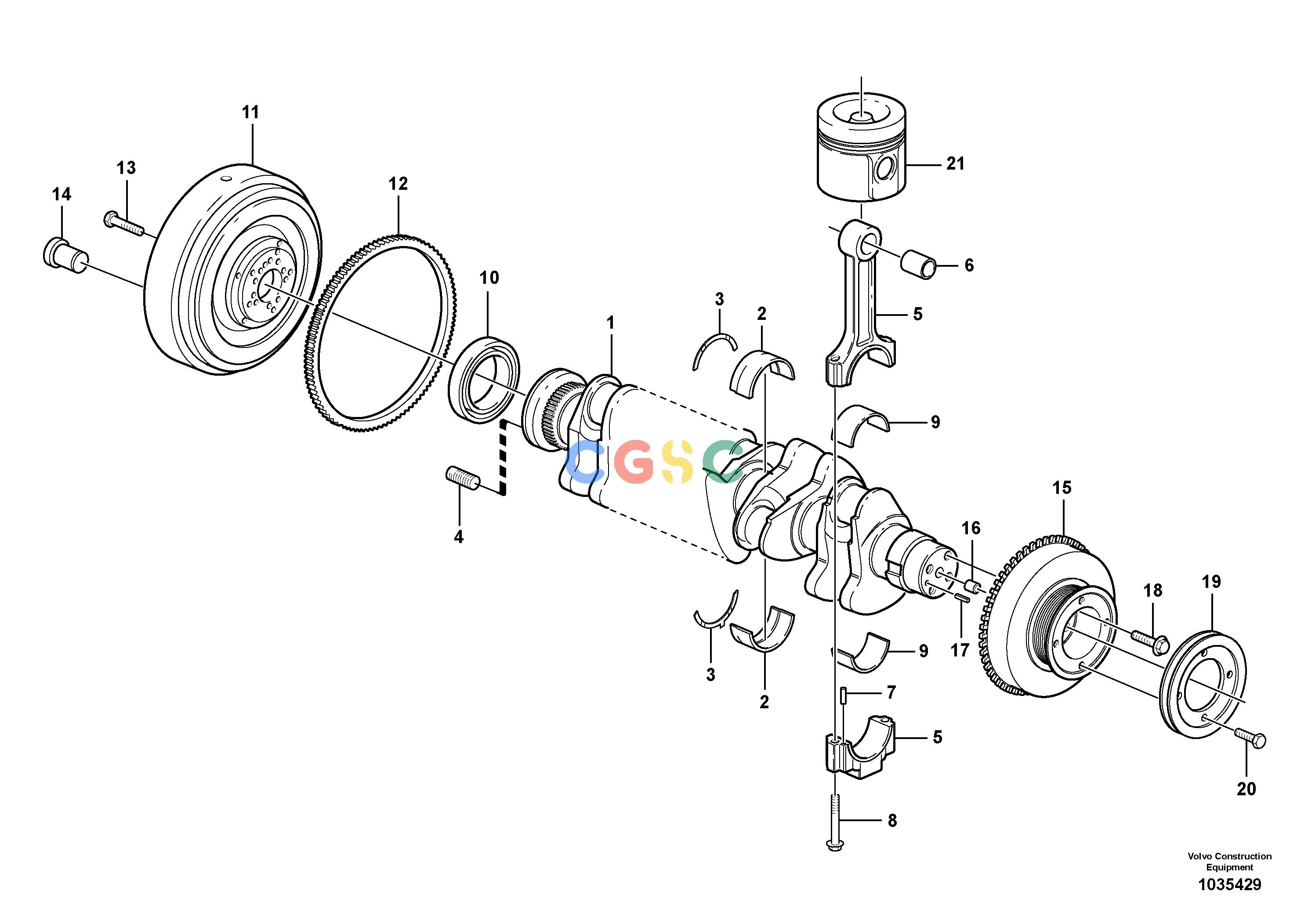

沃尔沃零件查询EW145B Crankshaft and related partsNone8279320-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20459146
|
[1] |
Crankshaft
|
ENG - 851836
|
| |
VOE20769707
|
[1] |
Crankshaft
|
ENG 851837 - 1022416
|
| |
VOE21351400
|
[1] |
Crankshaft
|
ENG 1022417 - 1099383
|
| |
VOE21351400
|
[1] |
Crankshaft
|
ENG 1099384 -
|
| 2. |
VOE20459140
|
[7] |
Main bearing
|
STD 84,00 MM
|
| |
VOE20459139
|
[7] |
Main Bearing
|
U SZ 83,75 MM
|
| 3. |
VOE20459143
|
[REQ] |
Washer
|
STD
WID 10 MM
|
| |
VOE20459142
|
[REQ] |
Thrust Washer
|
WID 10 MM
THICK 2,2 MM
|
| |
VOE20459149
|
[REQ] |
Thrust washer
|
STD
WID 14 MM
|
| |
VOE20459148
|
[REQ] |
Thrust Washer
|
WID 14 MM
THICK 2,2 MM
|
| 4. |
VOE20459144
|
[1] |
Insert
|
|
| 5. |
VOE20882905
|
[6] |
Connecting rod
|
|
| 6. |
VOE20523284
|
[0006] |
Bushing
|
|
| 7. |
VOE20459134
|
[12] |
Pin
|
|
| 8. |
VOE20459133
|
[12] |
Bolt
|
|
| 9. |
VOE20555403
|
[6] |
Bearing
|
ENG - 695616
STD 63,00 MM
|
| |
VOE20459147
|
[6] |
Bearing
|
ENG - 695616
U SZ 62,75 MM
|
| |
VOE20480536
|
[6] |
Bearing
|
ENG 695617 -
STD 63,00 MM
|
| |
VOE20522433
|
[6] |
Bearing
|
ENG 695617 -
U SZ 62,75 MM
|
| 10. |
VOE21628356
|
[1] |
Crankshaft seal
|
|
| 11. |
VOE20524696
|
[1] |
Flywheel
|
|
| 12. |
VOE20706915
|
[1] |
Gear Ring
|
|
| 13. |
VOE20405654
|
[10] |
Bolt
|
|
| 14. |
VOE20405643
|
[5] |
Plug
|
|
| 15. |
VOE20459152
|
[1] |
Pulley
|
|
| 16. |
VOE20405634
|
[1] |
Spring pin
|
|
| 17. |
VOE20450628
|
[1] |
Pin
|
|
| 18. |
VOE20405724
|
[4] |
Screw
|
|
| 19. |
VOE20459155
|
[1] |
Pulley
|
|
| 20. |
VOE20459156
|
[4] |
Screw
|
|
| 21. |
|
[1] |
Piston
|
|
