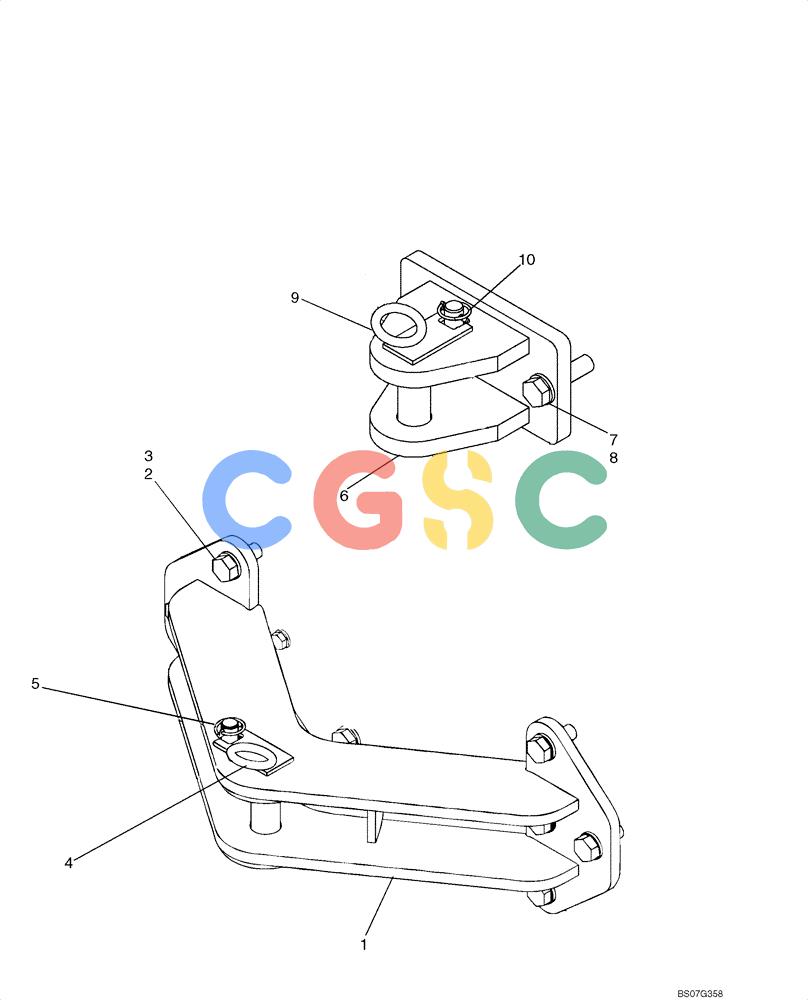

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-06) - DRAWBAR - RETRIEVAL HITCH New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
398 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87601328 | [1] | DRAWBAR | BURDRAWBAR AND HITCH |
| 2. | 627-24060 | [8] | BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86639036 |
| 3. | 896-11024 | [8] | WASHER,26mm ID x 44mm OD x 5mm Thk | IH Superseded by part number: 87016608 |
| 4. | R26750 | [1] | PIN | CASPIN Superseded by part number: 87339515 |
| 5. | A30338 | [1] | PIN | CASPIN Superseded by part number: 270184 |
| 6. | 87682445 | [1] | HITCH | BURHITCH, Retrieval |
| 7. | 827-24090 | [2] | BOLT,Hex, M24 x 3 x 90mm, Cl 10.9 | SUM Superseded by part number: 87017607 |
| 9. | 87339515 | [1] | PIN | BURPIN |
