神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-008[02]) - GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
560 次

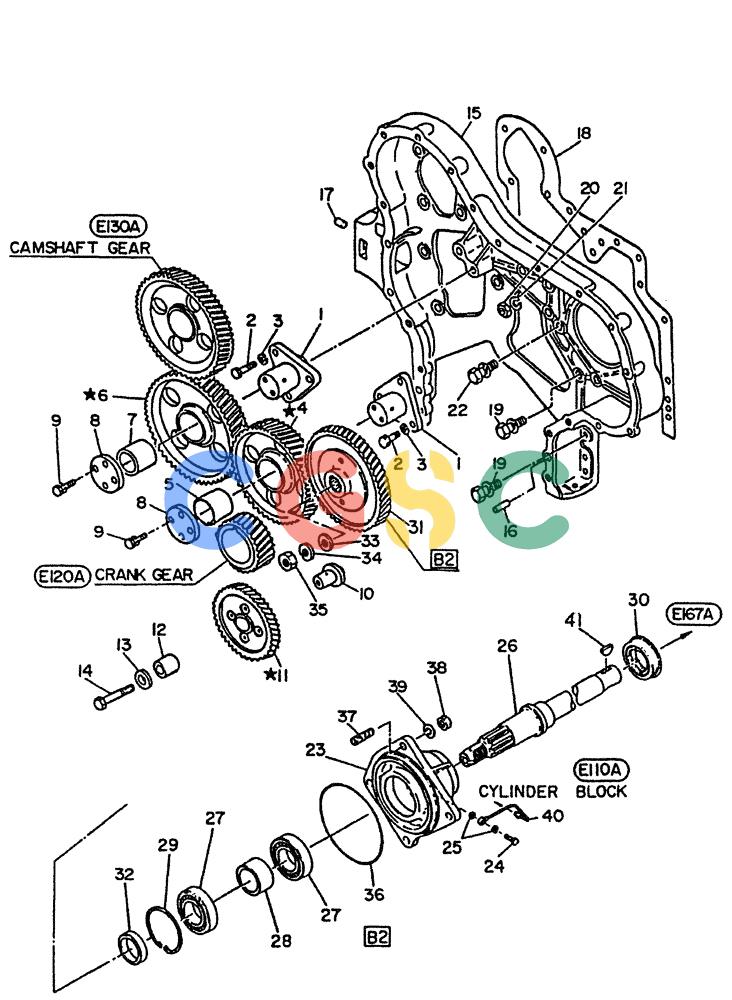

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A1 | [1] | 56 | |
| . . | B2 | [1] | 41,81 | |
| . . | B3 | [1] | 43,46,51,55,70,71,73,76 | |
| 1. | VG1301696002 | [4] | IDLE SHAFT | KOBSHAFT-GEAR |
| 2. | VG0810082510 | [6] | BOLT BOLT | BOLT BOLT |
| 3. | VG0132300084 | [6] | WASHER WASHER-WAVE, Start Year: 01-JAN-85 | WASHER WASHER-WAVE, Start Year: 01-JAN-85 |
| 3. | VG0891513810 | [6] | WASHER SPRING WASHER-SPRING | WASHER SPRING WASHER-SPRING |
| 4.5. | VG1301296002 | [1] | GEAR | KOBGEAR ASSY-IDLER |
| 5. | VG1303296000 | [1] | BUSHING | KOBBUSHING-GEAR |
| 6.7. | VG1301396000 | [1] | DRIVEN GEAR | KOBGEAR ASSY-IDLER |
| 7. | VG1303296000 | [1] | BUSHING | KOBBUSHING-GEAR |
| 8. | VG1301196001 | [2] | PLATE | KOBPLATE-GEAR |
| 9. | VG0812082028 | [4] | BOLT BOLT,W/WA5HER, Start Year: 01-NOV-83 | BOLT BOLT,W/WA5HER, Start Year: 01-NOV-83 |
| 9. | VG0811082062 | [4] | BOLT | KOBBOLT,W/WASHER |
| 10. | VG1302596001 | [1] | IDLE SHAFT | KOBSHAFT-IDLER GEAR |
| 11.12. | VG1301896001 | [1] | GEAR | KOBGEAR ASSY-IDLER |
| 12. | VG1303396002 | [1] | BUSHING | KOBBUSHING-GEAR |
| 13. | VG1302796002 | [1] | PLATE PLATE-IDLER | PLATE PLATE-IDLER |
| 14. | VG1302396003 | [1] | BOLT-IDLER GEAR, Start Year: 01-AUG-85 | |
| 14. | VG1302396002 | [1] | BOLT | KOBBOLT-IDLER GEAR Superseded by part number: VG1302396004 |
| 15. | VG1303496010 | [1] | CASE-GEAR (FOR B2,B3) | |
| 15. | VG1303496001 | [1] | CASE-GEAR (FOR A1) | |
| 16. | VG0152210184 | [2] | PIN PIN-STRAIGHT | PIN PIN-STRAIGHT |
| 17. | VG0164700134 | [1] | PLUG-TAPER (FOR B2,B3), Start Year: 01-OCT-85 | |
| 17. | VG0093321270 | [1] | PLUG-TAPER (FOR B2,B3) | |
| 18. | VG1303596001 | [1] | GASKET | KOBGASKET-CASE(8409) |
| 18. | VG1303596000 | [1] | GASKET | KOBGASKET-CASE Superseded by part number: VG1303596009 |
| 19. | VG0812103028 | [13] | BOLT | KOBBOLT,W/WASHER (FOR A1) |
| 20. | VG0891114010 | [1] | NUT | NUT |
| 21. | VG0891514010 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 22. | VG0812104028 | [2] | BOLTS BOLT,W/WASHER (FOR B2,B3) | BOLTS BOLT,W/WASHER (FOR B2,B3) |
| 23- 30. | VG1305196002 | [1] | SUPPORT ASSY-GEAR (FOR B2) | |
| 23. | VG1306696002 | [1] | SUPPORT-GEAR (FOR B2) | |
| 24. | VG0161900304 | [1] | BOLT-EYE (FOR B2) | |
| 25. | VG0135121084 | [2] | GASKET | KOBGASKET (FOR B2) |
| 26. | VG1302296000 | [1] | SHAFT (FOR B2) | |
| 27. | VG3316490002 | [2] | BEARING-BALL (FOR B2) | |
| 28. | VG1305796000 | [1] | RING-DESTANCE (FOR B2) | |
| 29. | VG0092226200 | [1] | SNAP RING | KOBRING-SNAP (FOR B2) |
| 30. | VG1226090016 | [1] | OIL SEAL | KOBSEAL-OIL (FOR B2) |
| 31. | VG1305296000 | [1] | DRIVEN GEAR | KOBGEAR-DRIVE (FOR B2) |
| 32. | VG1305896000 | [1] | RING-DESTANCE (FOR B2) | |
| 33. | VG0891545410 | [1] | LOCK WASHER | KOBWASHER-PLAIN (FOR B2) |
| 34. | VG0891515410 | [1] | WASHER WASHER-SPRING (FOR B2) | WASHER WASHER-SPRING (FOR B2) |
| 35. | VG9111190014 | [1] | NUT NUT (FOR B2) | NUT NUT (FOR B2) |
| 36. | VG1461296003 | [1] | PISTON RING | KOBO-RING (FOR B2) |
| 37. | VG0822902510 | [4] | STUD | KOBSTUD (FOR B2) |
| 38. | VG0891114010 | [4] | NUT (FOR B2) | NUT (FOR B2) |
| 39. | VG0891514010 | [4] | WASHER WASHER-SPRING (FOR B2) | WASHER WASHER-SPRING (FOR B2) |
| 40. | VG1511296006 | [1] | TUBE-OIL (FOR B2) | |
| 41. | VG0092652200 | [1] | KEY | KOBKEY-WOODRUFF (FOR B2) |
