神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-009[02]) - COVER-FRONT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
121 次

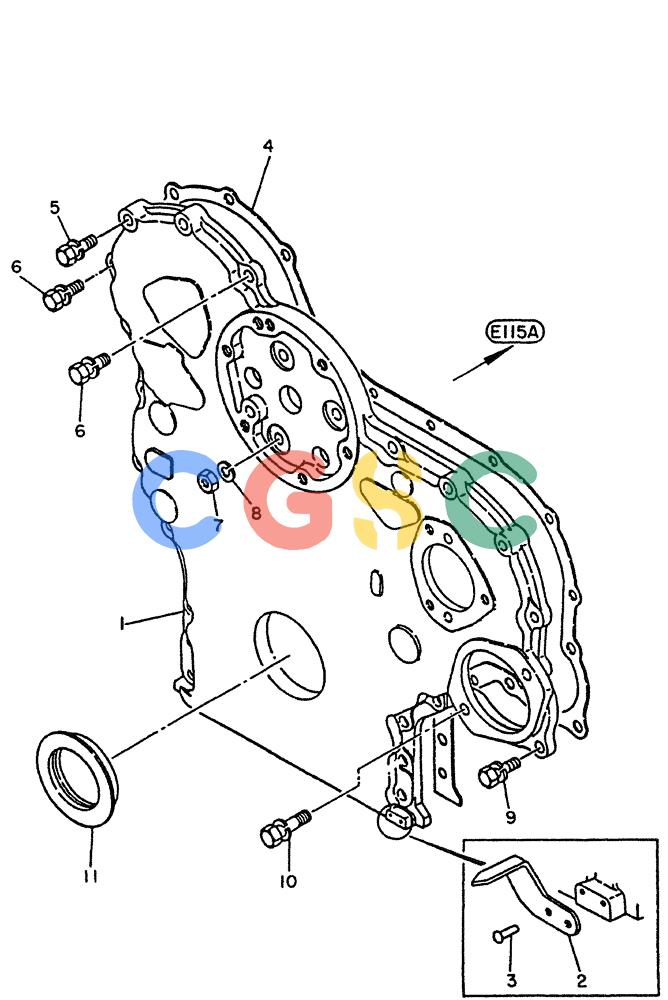

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A1 | [1] | 56 | |
| . . | B2 | [1] | 41,43,46,51,55,81 | |
| . . | B3 | [1] | 70,71,73,76 | |
| 1. | VG1303696076 | [1] | COVER-FRONT (FOR B2,B3), Start Year: 01-MAR-82 | |
| 1. | VG1303696073 | [1] | COVER-FRONT (FOR B2) | |
| 1. | VG1303696002 | [1] | COVER-FRONT (FOR A1) | |
| 2. | VG1304596002 | [1] | POINTER | KOBPOINTER-TIMING (FOR B2) |
| 2. | VG1304596004 | [1] | POINTER-TIMING (FOR A1) | |
| 3. | VG1105390000 | [2] | RIVET (FOR A1,B2) | |
| 4. | VG1303796007 | [1] | GASKET-FRONT COVER (FOR B2,B3), Start Year: 01-SEP-84 | |
| 4. | VG1303796003 | [1] | GASKET-FRONT COVER (FOR B2) | |
| 4. | VG1303796009 | [1] | GASKET | KOBGASKET-FRONT COVER (FOR A1), Start Year: 01-OCT-84 |
| 4. | VG1303796000 | [1] | GASKET | KOBGASKET-FRONT COVER (FOR A1) Superseded by part number: VG1303796009 |
| 5. | VG0812082028 | [2] | BOLT BOLT,W/WASHER (FOR B2,B3) | BOLT BOLT,W/WASHER (FOR B2,B3) |
| 6. | VG0811082562 | [13] | BOLT BOLT,W/WASHER (FOR B2,B3) | BOLT BOLT,W/WASHER (FOR B2,B3) |
| 6. | VG0812082528 | [17] | BOLT BOLT,W/WASHER (FOR A1) | BOLT BOLT,W/WASHER (FOR A1) |
| 7. | VG0891114010 | [1] | NUT (FOR B2,B3) | NUT (FOR B2,B3) |
| 7. | VG0891124010 | [1] | NUT | KOBNUT (FOR A1) |
| 8. | VG0891514010 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 9. | VG0811103062 | [1] | BOLT BOLT,W/WASHER (FOR B2,B3) | BOLT BOLT,W/WASHER (FOR B2,B3) |
| 10. | VG0811104062 | [2] | BOLT,W/WASHER (FOR B2,B3) | |
| 11. | VG1227890006 | [1] | OIL SEAL | KOBSEAL-OIL |
