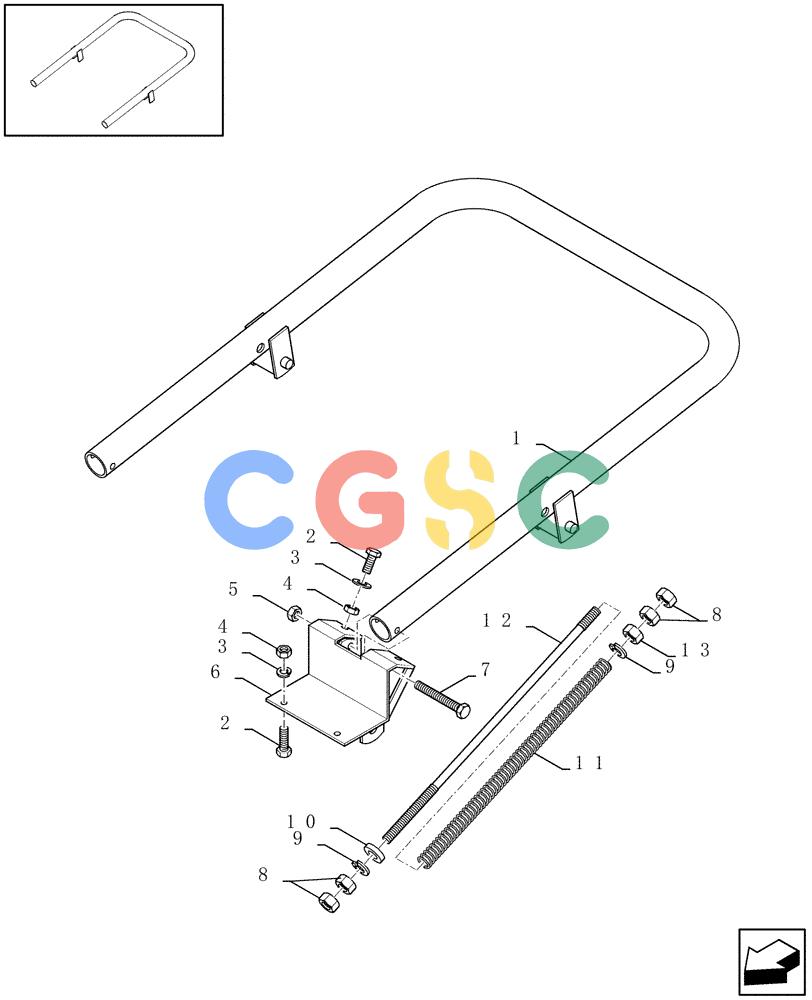

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (16.01[01]) - BALE EJECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84822168
|
[1] |
EJECTOR
|
PLO
, Serial Range: -C667
|
| 1. |
84820731
|
[1] |
EJECTOR
|
PLO
, Start Serial: D668
|
| 2. |
86512446
|
[8] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 3. |
80140045
|
[8] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 4. |
100016
|
[8] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 5. |
80100038
|
[2] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 6. |
84822167
|
[2] |
SUPPORT
|
PLO
, Serial Range: -C667 Superseded by part number: 84820730
|
| 6. |
84020730
|
[2] |
DIA KIT, HARVESTER
|
ATT
, Start Serial: D668
|
| 7. |
86508581
|
[2] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
| 8. |
100020
|
[8] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 9. |
84025088
|
[4] |
RING
|
PLO
|
| 10. |
89510502
|
[2] |
DAMPER
|
ZED
Superseded by part number: 9510502
|
| 11. |
84822169
|
[2] |
SPRING
|
PLO
, Serial Range: -C667 Superseded by part number: 84820732
|
| 11. |
84820732
|
[2] |
SPRING
|
PLO
, Start Serial: D668
|
| 12. |
84024192
|
[2] |
TIE-ROD
|
PLO
|
| 13. |
80100095
|
[4] |
NUT
|
ZED
M16 Superseded by part number: 10717511
|
