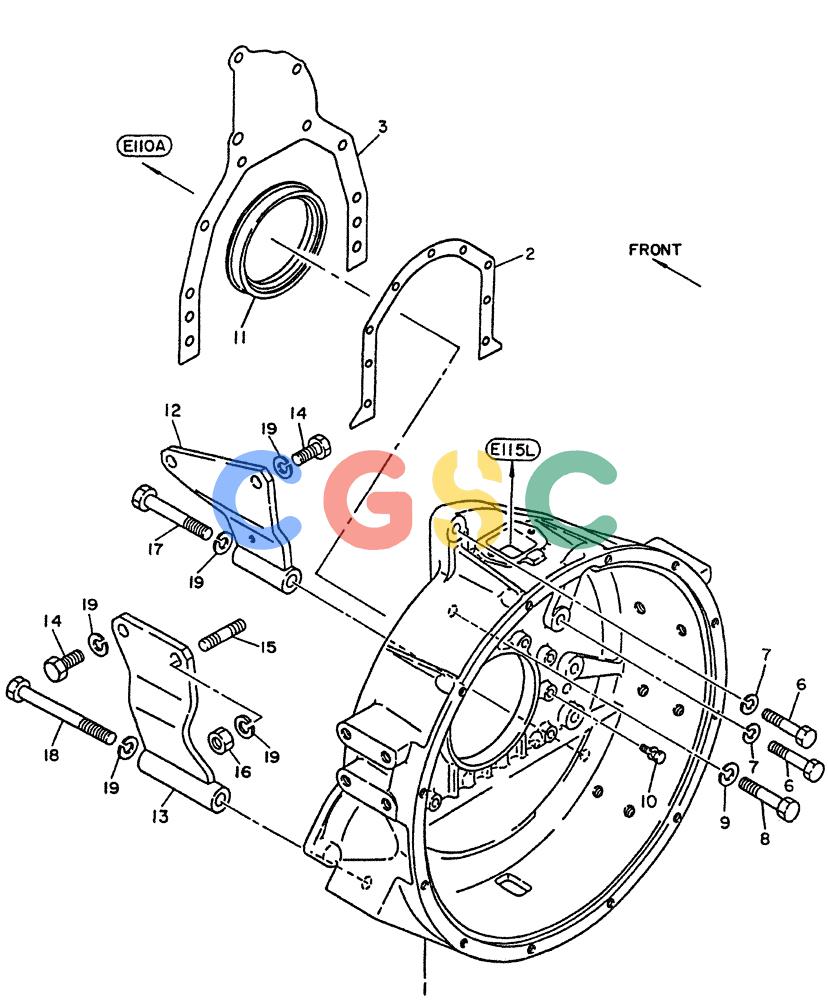

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (01-012[02]) - HOUSING-FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A3 | [1] | 41,43,51,55 | |
| . . | A5 | [1] | 81 | |
| . . | A7 | [1] | 56 | |
| . . | A12 | [1] | SUPPORT | F46 |
| . . | B15 | [1] | SPARE PARTS CAT | LITSPARE PARTS CATALOGUE 70,71,76 |
| 1. | VG1233196104 | [1] | ENGINE FLYWHEEL | KOBHOUSING-FLYWHEEL (FOR A3) |
| 1. | VG1233196105 | [1] | HOUSING-FLYWHEEL (FOR A5) | |
| 1. | VG1233196110 | [1] | HOUSING-FLYWHEEL (FOR A7) | |
| 1. | VG1233196062 | [1] | HOUSING-FLYWHEEL (FOR A12) | |
| 1. | VG1233196066 | [1] | HOUSING-FLYWHEEL (FOR B15) | |
| 2. | VG1233296002 | [1] | GASKET GASKET-HOUSING (FOR A3,A5,B15) | GASKET GASKET-HOUSING (FOR A3,A5,B15) |
| 2. | VG1233296005 | [1] | GASKET | KOBGASKET-HOUSING (FOR A7,A12) |
| 3. | VG1233396001 | [1] | GASKET SPACER (FOR A3,A5,B15) | GASKET SPACER (FOR A3,A5,B15) |
| 6. | VG0813125010 | [10] | BOLT | |
| 7. | VG0891514210 | [10] | WASHER | KOBWASHER WASHER-SPRING Superseded by part number: VG089151421A |
| 8. | VG0813445010 | [1] | BOLT | |
| 9. | VG0891514410 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 10. | VG0812084528 | [9] | SCREW | KOBBOLT,W/WASHER |
| 11. | VG1227997000 | [1] | OIL SEAL | KOBSEAL-OIL (KOYO MAKE) (FOR A3,A5,B15) |
| 11. | VG1227997001 | [1] | OIL SEAL SEAL-OIL (NOK MAKE) (FOR A3,A5,B15) | OIL SEAL SEAL-OIL (NOK MAKE) (FOR A3,A5,B15) |
| 11. | VG1227097002 | [1] | OIL SEAL | KOBSEAL-OIL (W/SLEEVE) (FOR A3,A5,B15) |
| 11. | VG1227996002 | [1] | OIL SEAL | KOBSEAL-OIL (FOR A7,A12) |
| 12. | VG1234596005 | [1] | STIFFENER-UPPER (FOR B15) | |
| 13. | VG1234596006 | [1] | STIFFENER-UPPER (FOR B15) | |
| 14. | VG0812443510 | [3] | BOLT (FOR B15) | |
| 15. | VG9101696001 | [1] | STUD (FOR B15) | |
| 16. | VG0891124410 | [1] | NUT (FOR B15) | |
| 17. | VG0812440210 | [1] | BOLT (FOR B15) | |
| 18. | VG0812440810 | [1] | BOLT (FOR B15) | |
| 19. | VG0891514410 | [6] | WASHER WASHER-SPRING (FOR B15) | WASHER WASHER-SPRING (FOR B15) |
