纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-13) - GUARD, RADIATOR BRUSH SCREEN - GRILL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
863 次

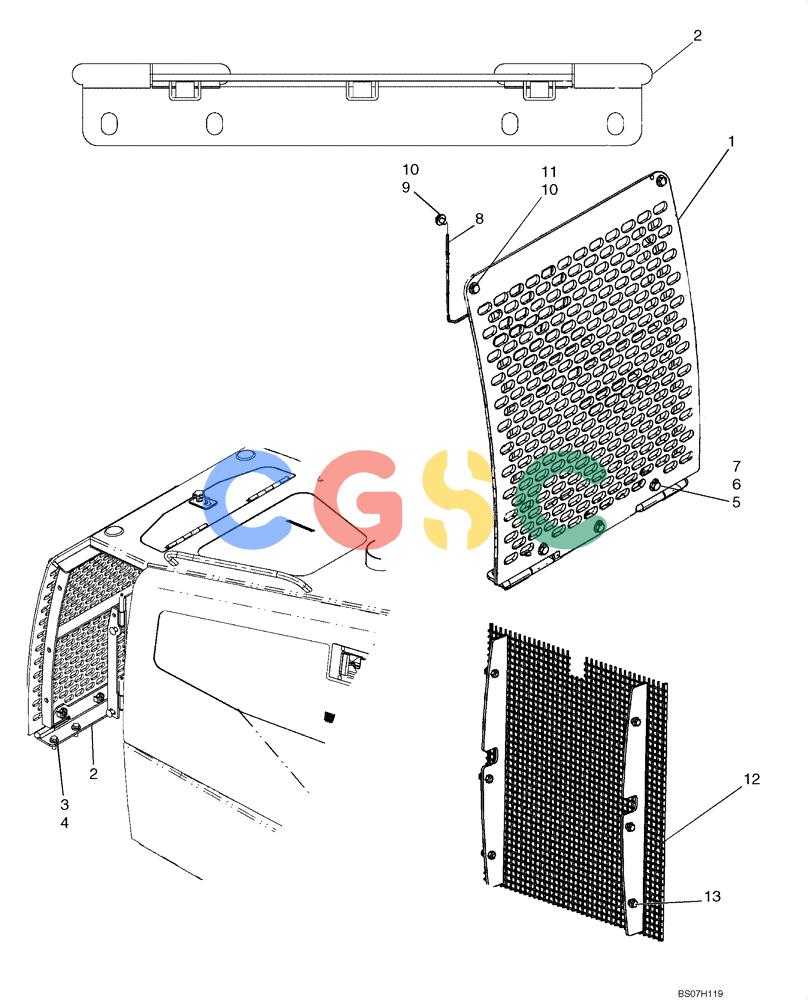

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87691179 | [1] | GRILLE | BURGRILL |
| 2. | 87686089 | [1] | HINGE | BURHINGE, Front Grill |
| 3. | 896-15012 | [4] | WASHER,13.5mm ID x 28mm OD x 4mm Thk | CAS Superseded by part number: 86625256 |
| 4. | 627-12035 | [4] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 5. | 857-12030 | [3] | BOLT,Hvy Hex, M12 x 30mm, Cl 10.9 | CAS Superseded by part number: 87030508 |
| 6. | 87447306 | [3] | SQUARE NUT | CAS |
| 7. | 336371A1 | [3] | PIN | CAS |
| 8. | 87419297 | [1] | CABLE | BURCABLE, Door Retaining |
| 9. | 614-10020 | [1] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43138 |
| 10. | 895-15010 | [2] | WASHER,M11 x 24 x 2 | CAS Superseded by part number: 86625253 |
| 11. | 627-10030 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 12. | 87690529 | [1] | SCREEN | BURSCREEN, Radiator Brush |
| 13. | 87015905 | [6] | BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd | RAC |
