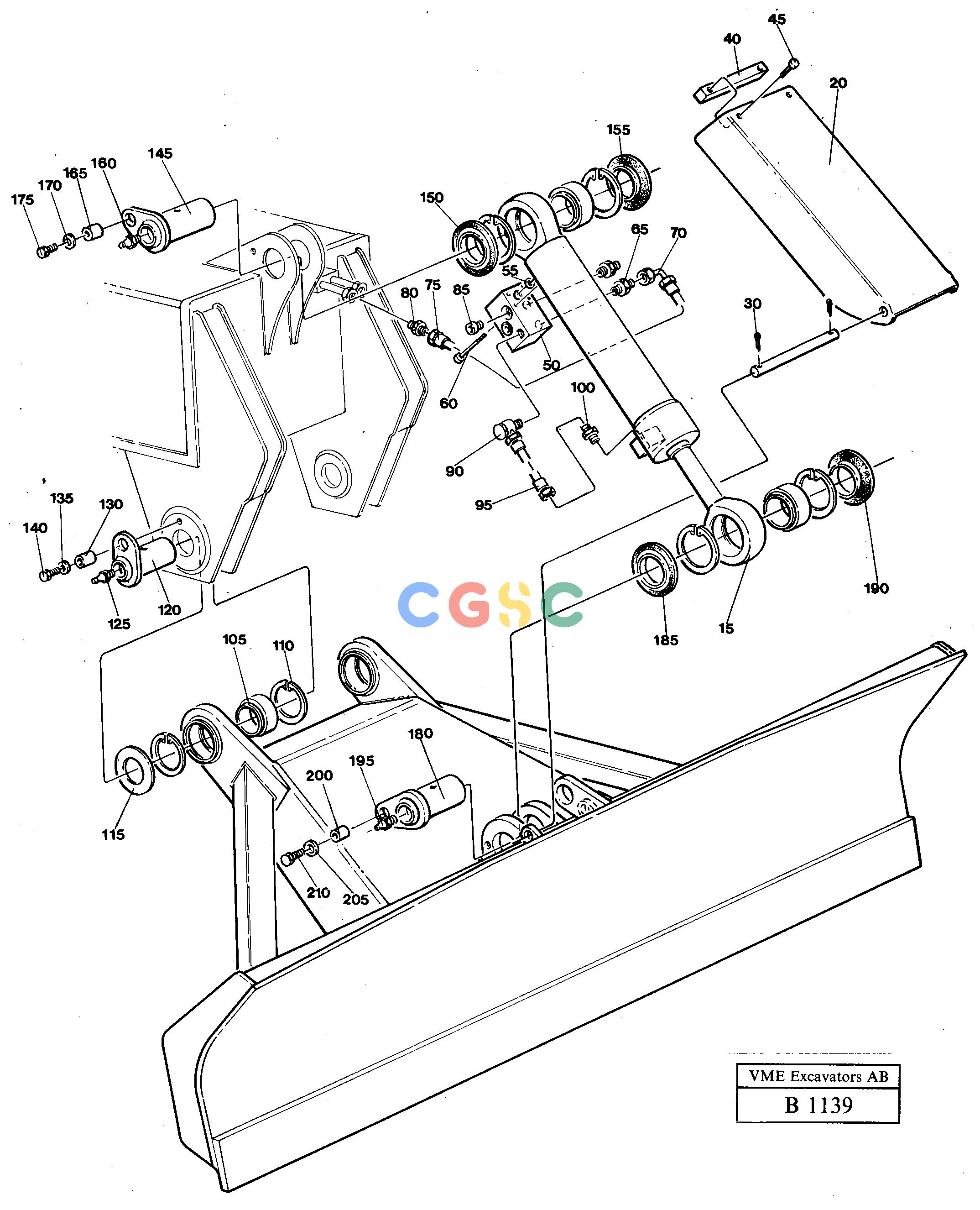

沃尔沃零件查询EW230 ÅKERMAN Dozer blade equipment exterior, 2.5m / 2.6mÅKERMAN EW230 SER NO - 144714244960 2.5m-14257712 2.6mVOE1424496014244960 14257712Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE14244950
|
[1] |
Dozer blade
|
|
| 10. |
VOE14244951
|
|
Dozer blade
|
|
| 15. |
VOE14233660
|
[1] |
Hydraulic cylinder
|
|
| 20. |
VOE14236123
|
[1] |
Protecting plate
|
|
| 25. |
VOE14236124
|
[1] |
Pin
|
|
| 30. |
VOE14015166
|
[2] |
Cotter Pin
|
|
| 35. |
VOE14023619
|
[REQ] |
Lubricating paste
|
|
| 40. |
VOE14243189
|
[1] |
Moulding
|
|
| 45. |
VOE14212800
|
[2] |
Screw
|
|
| 50. |
VOE14242622
|
[1] |
Hydraulic lock
|
|
| 55. |
VOE949659
|
[1] |
O-ring
|
|
| 60. |
VOE959242
|
[4] |
Hex. socket screw
|
|
| 65. |
VOE14012423
|
[2] |
Fitting
|
|
| 70. |
VOE14012395
|
[2] |
Fitting
|
|
| 75. |
VOE14053918
|
[2] |
Hydraulic hose
|
|
| 80. |
VOE14012404
|
[2] |
Fitting
|
|
| 85. |
VOE14023409
|
[3] |
Plug
|
|
| 90. |
VOE14026152
|
[1] |
Banjo fitting
|
|
| 95. |
VOE14054176
|
[1] |
Hydraulic hose
|
|
| 100. |
VOE14012423
|
[1] |
Fitting
|
|
| 105. |
VOE356313
|
[2] |
Link bearing
|
|
| 110. |
VOE914544
|
[4] |
Retaining ring
|
|
| 115. |
VOE14016198
|
[REQ] |
Washer
|
THICK = 1,5
|
| 120. |
VOE14244959
|
[2] |
Pin
|
|
| 125. |
VOE914160
|
[2] |
Lubricating nipple
|
|
| 130. |
VOE14241779
|
[2] |
Sleeve
|
|
| 135. |
VOE13955900
|
[2] |
Washer
|
|
| 140. |
VOE955362
|
[2] |
Hexagon screw
|
|
| 145. |
VOE14244957
|
[1] |
Pin
|
|
| 150. |
VOE14041574
|
[REQ] |
Spacer
|
THICK = 1,0
|
| 155. |
VOE14040806
|
[2] |
Sealing ring
|
|
| 160. |
VOE914160
|
[1] |
Lubricating nipple
|
|
| 165. |
VOE14241779
|
[1] |
Sleeve
|
|
| 170. |
VOE13955900
|
[1] |
Washer
|
|
| 175. |
VOE955362
|
[1] |
Hexagon screw
|
|
| 180. |
VOE14244958
|
[1] |
Pin
|
|
| 185. |
VOE14041574
|
[REQ] |
Spacer
|
THICK = 1,0
|
| 190. |
VOE14040806
|
[2] |
Sealing ring
|
|
| 195. |
VOE914160
|
[1] |
Lubricating nipple
|
|
| 200. |
VOE14241779
|
[1] |
Sleeve
|
|
| 205. |
VOE13955900
|
[1] |
Washer
|
|
| 210. |
VOE955362
|
[1] |
Hexagon screw
|
|
