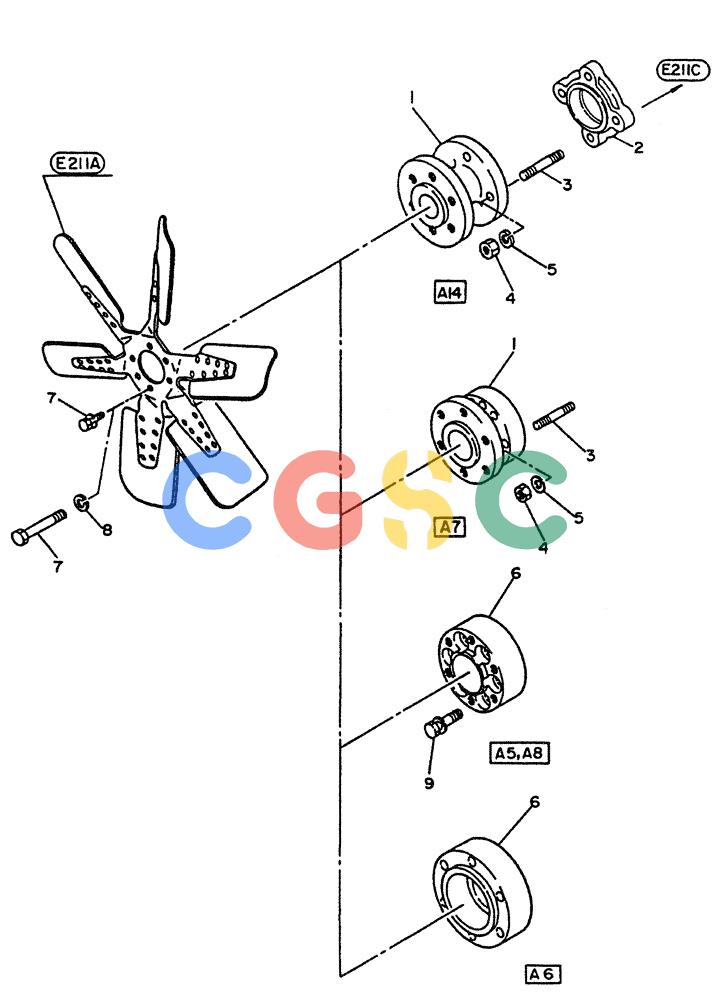

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (06-005) - SPACER-FAN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
342 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG2105296503 | [1] | SPACER-FAN (60H-6-90,T=55) (FOR A14) | |
| 1. | VG2105296011 | [1] | SPACER-FAN (60H-6-90,T=60) (FOR A7) | |
| 2. | VG2105296500 | [1] | SPACER-FAN (T=15) (FOR A14) | |
| 3. | VG0822704510 | [6] | STUD (FOR A7) | |
| 3. | VG0822705010 | [4] | STUD | KOBSTUD (FOR A14) |
| 4. | VG0691124010 | [6] | NUT (FOR A7) | |
| 5. | VG0891514010 | [6] | WASHER SPRING (FOR A7) | WASHER SPRING (FOR A7) |
| 6. | VG2105296060 | [1] | SPACER-FAN (60H-6-90,T=40) (FOR A5) | |
| 6. | VG2105296504 | [1] | SPACER-FAN (90H-6-110,T=40) (FOR A6) | |
| 6. | VG2105296066 | [1] | SPACER | KOBFAN (60H-6-90,T=35) (FOR A8) |
| 7. | VG0812103028 | [6] | BOLT | KOBW/WASHER (FOR A8) |
| 7. | VG0812102528 | [6] | BOLT W/WASHER (FOR A5,A7) | BOLT W/WASHER (FOR A5,A7) |
| 7. | VG0812107010 | [6] | BOLT (FOR A6) | |
| 7. | VG0812402528 | [6] | BOLT,W/WASHER (FOR A14) | |
| 8. | VG0891514010 | [6] | WASHER SPRING (FOR A6) | WASHER SPRING (FOR A6) |
| 9. | VG0812104528 | [6] | BOLT,W/WASHER (FOR A5) | |
| 9. | VG0812105028 | [6] | BOLT W/ WASHER (FOR A8) | BOLT W/ WASHER (FOR A8) |
