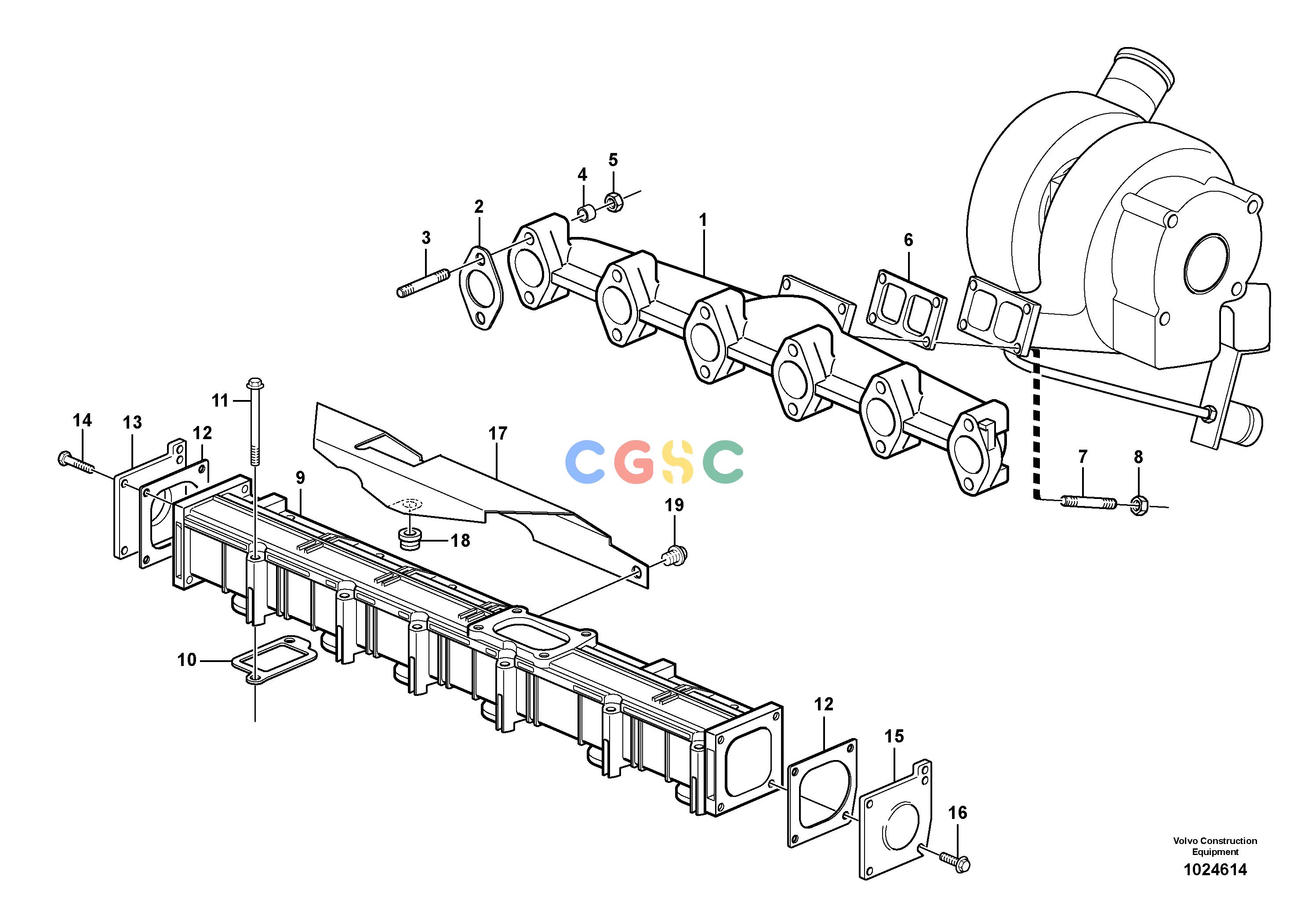

沃尔沃零件查询FC2121C Inlet manifold and exhaust manifoldS/N 110001-1100068281232-NoneVOE8281232NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21007090
|
[1] |
Exhaust pipe
|
|
| 2. |
VOE20933261
|
[6] |
Gasket
|
|
| 3. |
VOE22819604
|
[12] |
Stud
|
|
| 4. |
VOE20575921
|
[12] |
Sleeve
|
|
| 5. |
VOE20505959
|
[12] |
Hexagon nut
|
|
| 6. |
VOE21793270
|
[1] |
Gasket
|
|
| 7. |
VOE20412314
|
[4] |
Stud
|
|
| 8. |
VOE20412308
|
[4] |
Hexagon nut
|
|
| 9. |
VOE22915373
|
[1] |
Charge air pipe
|
|
| 10. |
VOE21815244
|
[6] |
Gasket
|
|
| 11. |
VOE20459830
|
[12] |
Screw
|
|
| 12. |
VOE20459226
|
[2] |
Gasket
|
|
| 13. |
VOE20459229
|
[1] |
Cover
|
|
| 14. |
VOE20460055
|
[4] |
Screw
|
|
| 15. |
VOE20459230
|
[1] |
Cover
|
|
| 16. |
VOE20460055
|
[4] |
Screw
|
|
| 17. |
VOE20914410
|
[1] |
Heat Shield
|
|
| 18. |
VOE20715095
|
[1] |
Closure
|
|
| 19. |
VOE20405729
|
[3] |
Screw
|
|
