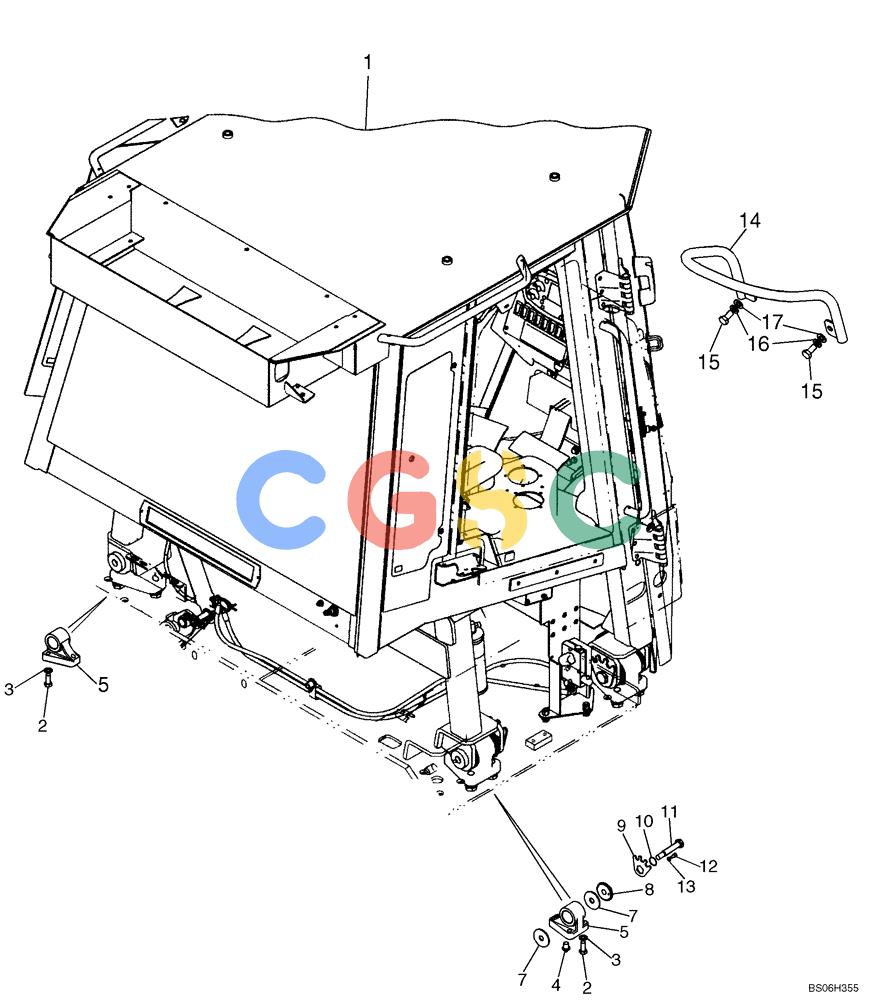

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-25) - CAB - FRAME, MOUNTING AND GRAB HANDLES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87550910 | [1] | CAB | BURASSEMBLY; Includes Frame, Doors, Glass, Consoles, Front Wiper; Order From Machinery Price List |
| 1. | 87517848 | [1] | Frame, Cab Assembly; Order From Machinery Price List | |
| 2. | 514-1211 | [12] | BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9 | CAS |
| 3. | 896-11020 | [12] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS Superseded by part number: 86625260 |
| 4. | 87311743 | [2] | SPECIAL PIN | BURAlignment; Right-Hand Side Only, 45.2 mm Long |
| 5. | 86983061 | [4] | SUPPORT ASSY. | BURIncludes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 4 |
| . . | 79060730 | [2] | BUSHING | LEC |
| 7. | 79085441 | [8] | WASHER,24.6mm ID x 90mm OD x 5mm Thk | LEC |
| 8. | 79084966 | [4] | BUSHING | LEC |
| 9. | 79093828 | [4] | PLATE | LEC |
| 10. | 13398976 | [4] | SNAP RING,M40, Int | JES |
| 11. | 79093830 | [4] | SCREW,Hex, M24 x 2 x 150mm | LEC |
| 12. | 864-10020 | [4] | HEX SOC SCREW,M10 x 20mm, Cl 8.8 | CAS Superseded by part number: 86632600 |
| 13. | 892-11010 | [4] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 14. | 448838A1 | [1] | HANDLE | BURGrab, Front |
| 15. | 627-10020 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 17. | 895-11010 | [2] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
