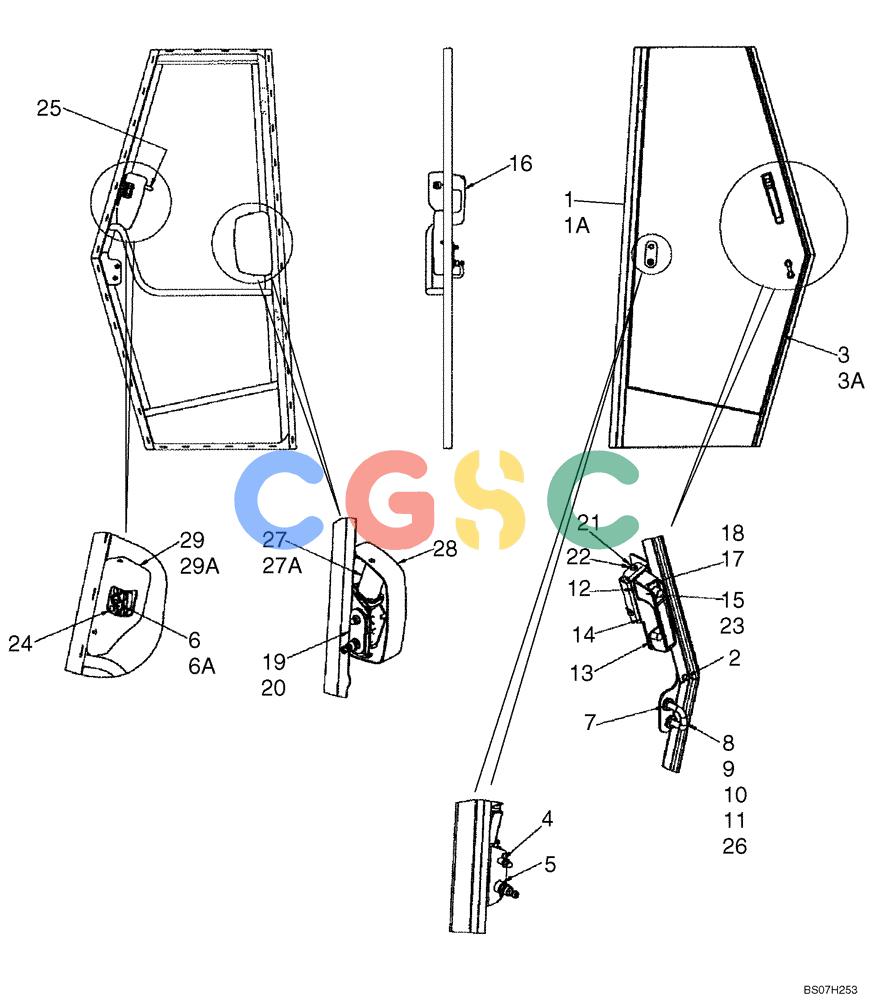

| . . | 87517951 | [1] | RH CAB DOOR | BURASSEMBLY; Right-Hand; Incl. Ref 1, 2, 3, 4 - 6, 7 - 27, 28, 29; Except Where Noted For Left-Hand Door |
| . . | 87517950 | [1] | LH CAB DOOR | BURASSEMBLY;Left-Hand; Incl. Ref 1A, 2, 3A, 4, 5, 6A -26, 27A, 28, 29A; Except Where Noted For Right-Hand Door |
| 1. | 87517953 | [1] | DOOR | BURFRAME, Right-Hand Door; Frame Not Available, Order 87517951 RH Door Assembly |
| 1A. | 87517952 | [1] | DOOR | BURFRAME, Left-Hand Door; Frame Not Available, Order 87517950 LH Door Assembly; Not Illustrated |
| 2. | 87577745 | [7] | BUMPER | BHBBumper, Glues in Glass |
| 3. | 87371775 | [1] | CAB GLASS | BURRight-Hand Door |
| 3A. | 87371774 | [1] | CAB GLASS | BURLeft-Hand Door |
| 4. | 84275040 | [1] | BUSHING | BURNylon 12 dia |
| 5. | 84275038 | [1] | BUSHING | BURNylon 25 dia |
| 6. | 87371740 | [1] | LATCH | BURInterior; Right-Hand Door |
| 6A. | 87371737 | [1] | LATCH | BURInterior; Left-Hand Door |
| 7. | 87615097 | [2] | GROMMET | BUR |
| 8. | 87371994 | [1] | STRIKER PLATE | BURHold Open |
| 9. | 87615084 | [2] | Washer, Flat | |
| 10. | 825-2408 | [2] | FLANGE NUT,M8 x 1.25, Flg, Cl 8 | CAS Superseded by part number: 9804277 |
| 11. | 87517925 | [2] | WASHER | BURFoam |
| 12. | 87517940 | [1] | GASKET | BURDoor Handle |
| 13. | 87517937 | [1] | GASKET | BURDoor Handle |
| 14. | 87517921 | [1] | GASKET,3mm Thk | BURDoor Latch |
| 15. | 87517938 | [3] | BUSHING,6.5mm ID x 9.5mm OD x 9.5mm L | BURDoor |
| 16. | 60-7083T1 | [1] | HANDLE | L Superseded by part number: 9707331 |
| 17. | 87615095 | [1] | Nut, Hex | |
| 18. | 413-432 | [1] | BOLT,Hex, 1/4" - 20 x 2", Gr 5 | IH Superseded by part number: 72187193, 87404 |
| 19. | 87517920 | [1] | GASKET,4.8mm Thk | BURWiper |
| 20. | 87517958 | [1] | MOUNTING PLATE | BURWiper Mount |
| 21. | 87517945 | [6] | NUT | BURNo. 10 |
| 22. | 87517941 | [6] | SCREW,#10 - 24 x 5/8" | BURNo. 10 x 5/8 |
| 23. | 840-1625 | [3] | SCREW,Pan, M6 x 25mm, Cl 4.8 | CAS Superseded by part number: 86511831 |
| 24. | 9707580 | [4] | BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd | NH |
| 25. | 87517939 | [1] | RUBBER SLEEVE | BUR |
| 26. | 87517927 | [2] | LOCK WASHER | BURPushnut Fastener |
| 27. | 87550999 | [1] | WIPER MOTOR,24V | BURWIPER MOTOR, 24 V, Right-Hand Door |
| 27A. | 87550998 | [1] | WIPER MOTOR | BURWIPER MOTOR, 24 V, Left-Hand Door |
| 28. | 87371987 | [1] | DOOR COVER | BURWiper Motor |
| 29. | 87371992 | [1] | DOOR COVER | BURLatch; Right-Hand Door Latch |
| 29A. | 87371990 | [1] | DOOR COVER | BURLatch; Left-Hand Door Latch |
