神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (06-011) - COOLER-OIL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
584 次

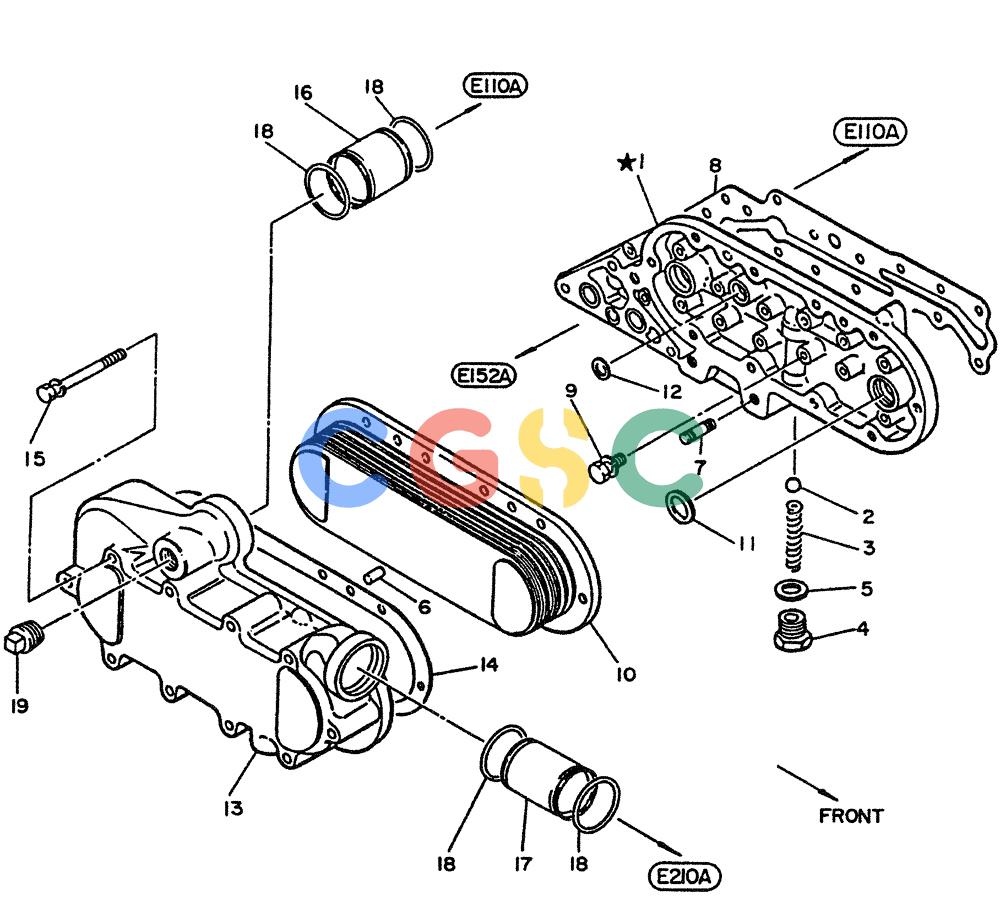

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VG2134096002 | [1] | HYD CONNECTOR | KOBADAPTER ASSY |
| 2. | VG1514190001 | [1] | BALL | KOBSTEEL |
| 3. | VG1516796001 | [1] | SPRING | KOBVALVE |
| 4. | VG1513996000 | [1] | PLUG-SCREW | |
| 5. | VG0135121224 | [1] | GASKET | KOB Superseded by part number: 76601867 |
| 6. | VG0152208224 | [2] | PIN | KOBSTRAIGHT |
| 7. | VG0115105124 | [2] | STUD | KOB |
| 8. | VG2131296000 | [1] | GASKET | KOBADAPTER |
| 9. | VG0812083528 | [15] | BOLT HEX W/WASHER | BOLT HEX W/WASHER |
| 9. | VG0811083562 | [15] | BOLT,W/WASHER | |
| 10. | VG2131796001 | [1] | ELEMENT COOLER | ELEMENT COOLER |
| 11. | VG2138790001 | [2] | RUBBER RING | KOB |
| 12. | VG1104990004 | [1] | RUBBER RING | KOB |
| 13. | VG2130296005 | [1] | MOTOR HOUSING | KOBCOOLER |
| 14. | VG2131096000 | [1] | GASKET | KOBHOUSING Superseded by part number: VG2131097002 |
| 15. | VG0112100154 | [10] | SPECIAL WASHER | KOB |
| 16. | VG2101696004 | [1] | DUCT | KOB |
| 17. | VG2101796002 | [1] | DUCT | KOB |
| 18. | VG2101996006 | [4] | O-RING | KOB |
| 18. | VG2101996000 | [4] | O-RING | KOB |
| 19. | VG0093111210 | [1] | PLUG TPR THO | PLUG TPR THO |
