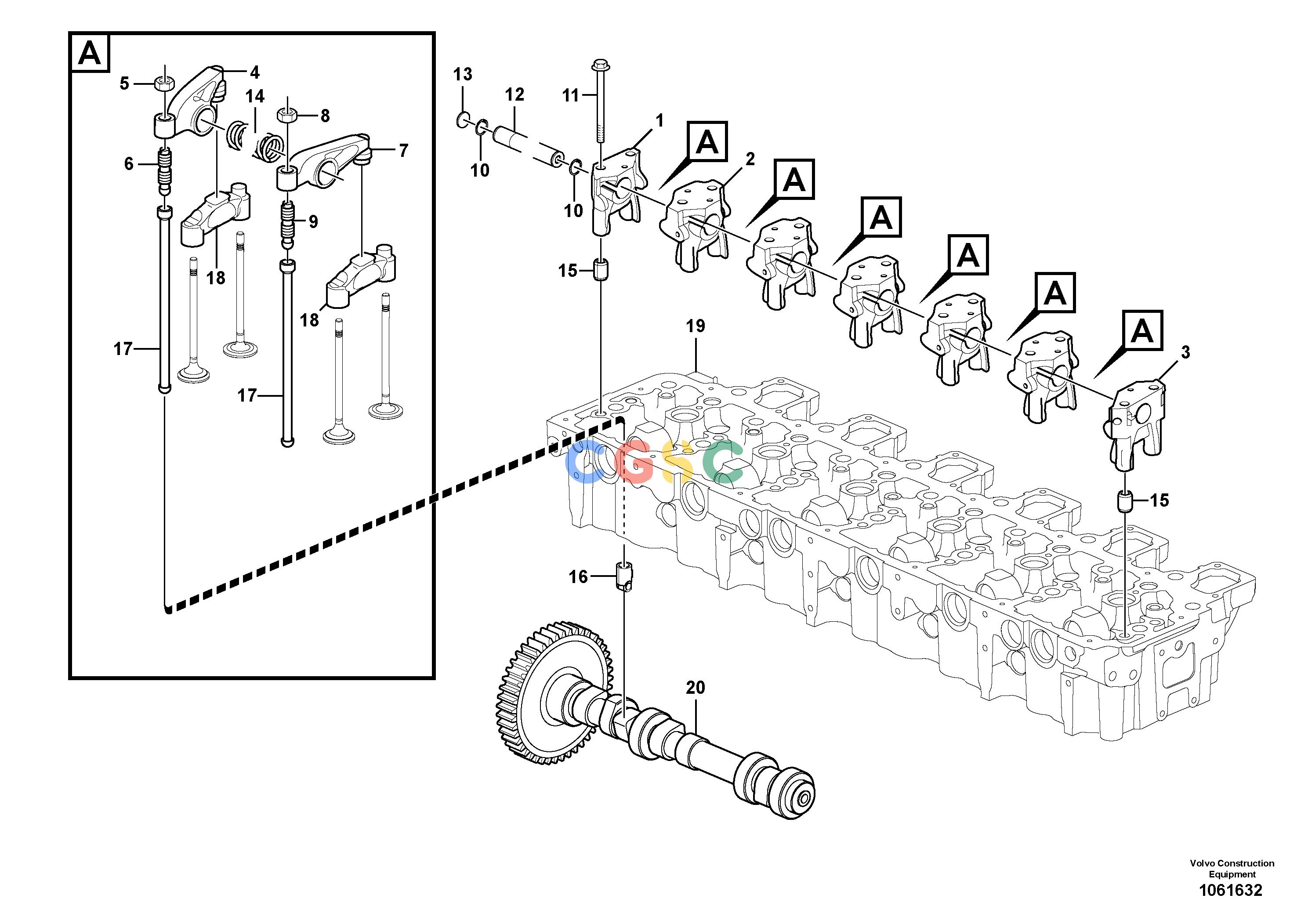

沃尔沃零件查询G900C Valve mechanismG930C/940C/946C/960C S/N 583002 - 586015 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21705340
|
[1] |
Bracket
|
|
| 2. |
VOE21705309
|
[5] |
Bracket
|
|
| 3. |
VOE21705345
|
[1] |
Bracket
|
|
| 4. |
VOE22348723
|
[6] |
Rocker arm
|
INLET
|
| 5. |
VOE11700373
|
[6] |
Nut
|
|
| 6. |
VOE21458899
|
[6] |
Adjusting screw
|
|
| 7. |
VOE22348754
|
[6] |
Rocker arm
|
OUTLET
|
| 8. |
|
[6] |
Nut
|
|
| 9. |
|
[6] |
Adjusting Screw
|
|
| 10. |
VOE914456
|
[2] |
Retaining ring
|
|
| 11. |
VOE993447
|
[14] |
Flange screw
|
|
| 12. |
VOE22644757
|
[1] |
Bracket
|
|
| 13. |
VOE20799622
|
[2] |
Cap plug
|
|
| 14. |
VOE20800018
|
[6] |
Compression spring
|
|
| 15. |
VOE20799596
|
[2] |
Spring pin
|
|
| 16. |
VOE21486078
|
[12] |
Tappet
|
|
| 17. |
VOE21034347
|
[12] |
Push rod
|
|
| 18. |
VOE20861884
|
[12] |
Bridge
|
|
| 19. |
|
[1] |
Cylinder head
|
|
| 20. |
VOE22441854
|
[1] |
Camshaft
|
|
