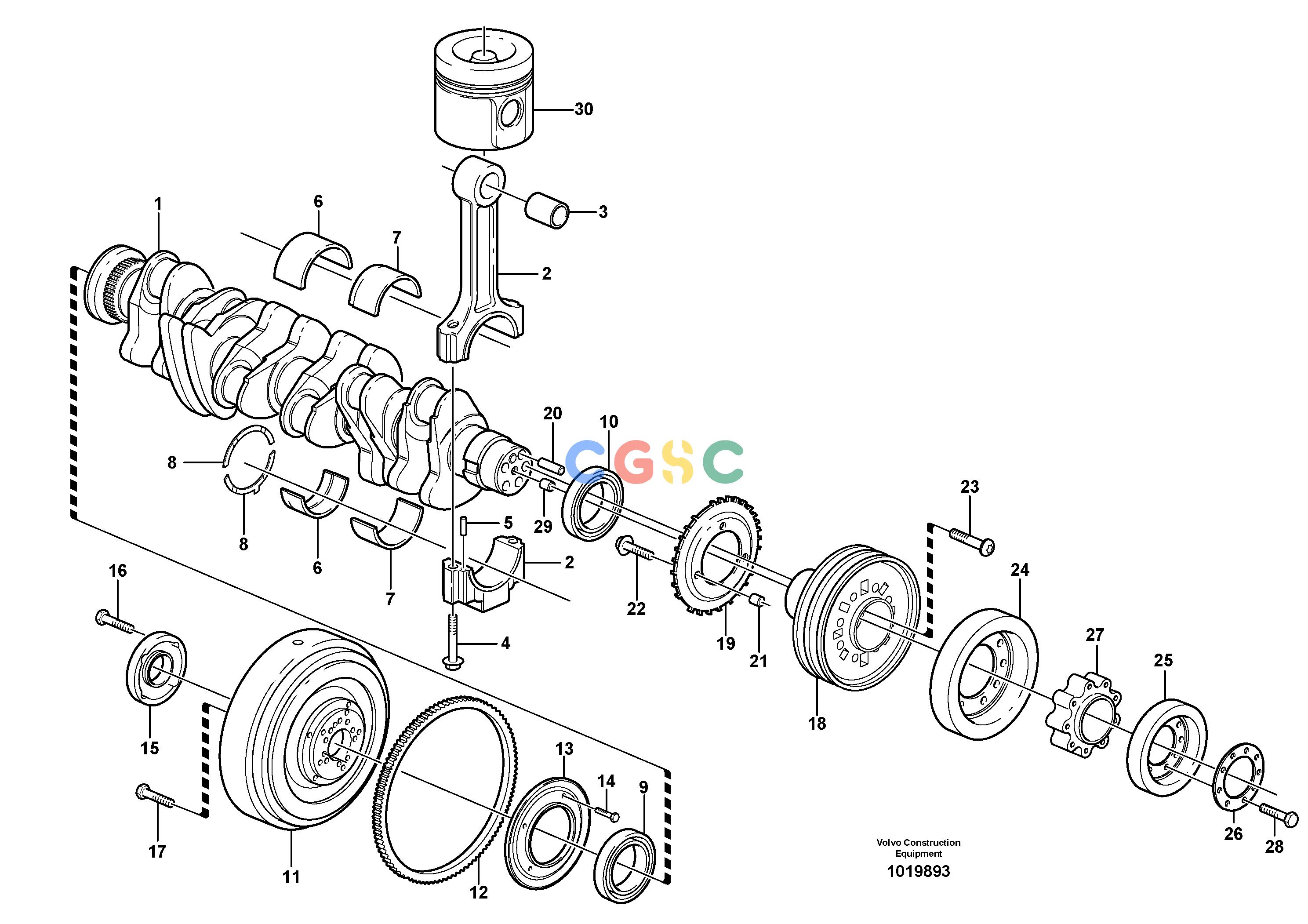

沃尔沃零件查询L110E Crankshaft and related partsS/N 2202- SWE, 61001- USA, 70401-BRA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
464 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21245957
|
[1] |
Crankshaft
|
|
| 2. |
VOE20585982
|
[6] |
Connecting rod
|
|
| 3. |
VOE11700325
|
[6] |
Bushing
|
|
| 4. |
VOE11700326
|
[12] |
Bolt
|
|
| 5. |
VOE20459134
|
[12] |
Pin
|
|
| 6. |
VOE21141948
|
[7] |
Main bearing
|
STD = 85,00 MM
|
| |
VOE21234191
|
[REQ] |
Main bearing
|
U SZ = 84,75 MM
|
| |
VOE20405541
|
[REQ] |
Main bearing
|
U SZ = 84,50 MM
|
| 7. |
VOE20766790
|
[6] |
Big-end Bearing
|
STD = 68,00 MM
|
| |
VOE20790423
|
[REQ] |
Big-end Bearing
|
U SZ = 67,75 MM
|
| |
VOE20790428
|
[REQ] |
Big-end Bearing
|
U SZ = 67,50 MM
|
| 8. |
VOE20405899
|
[1] |
Thrust Washer
|
STD = 2,9 MM
|
| |
VOE21141963
|
[REQ] |
Thrust washer
|
O SZ = 3,1 MM
|
| 9. |
|
[1] |
Sealing ring
|
|
| 10. |
|
[1] |
Sealing ring
|
|
| 11. |
VOE20917910
|
[1] |
Flywheel
|
|
| 12. |
VOE20450830
|
[1] |
Gear
|
|
| 13. |
VOE20918003
|
[1] |
Ring
|
|
| 14. |
VOE20933839
|
[4] |
Screw
|
|
| 15. |
VOE20460793
|
[1] |
Flange
|
|
| 16. |
VOE21000755
|
[5] |
Hexagon screw
|
|
| 17. |
VOE20450835
|
[10] |
Screw
|
|
| 18. |
VOE20483448
|
[1] |
Pulley
|
|
| 19. |
VOE20792423
|
[1] |
Lock Washer
|
|
| 20. |
VOE20450838
|
[1] |
Pin
|
|
| 21. |
VOE20450628
|
[1] |
Pin
|
|
| 22. |
VOE975108
|
[3] |
Flange screw
|
|
| 23. |
VOE20405724
|
[4] |
Screw
|
|
| 24. |
VOE21165424
|
[1] |
Vibration damper
|
|
| 25. |
VOE21083252
|
[1] |
Vibration damper
|
|
| 26. |
VOE20460800
|
[1] |
Washer
|
|
| 27. |
VOE20460799
|
[1] |
Spacer
|
|
| 28. |
VOE996780
|
[9] |
Hexagon screw
|
|
| 29. |
VOE20405634
|
[1] |
Spring pin
|
|
| 30. |
|
[1] |
Piston
|
|
