纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-32A) - CAB - WASHER, WINDSHIELD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
361 次

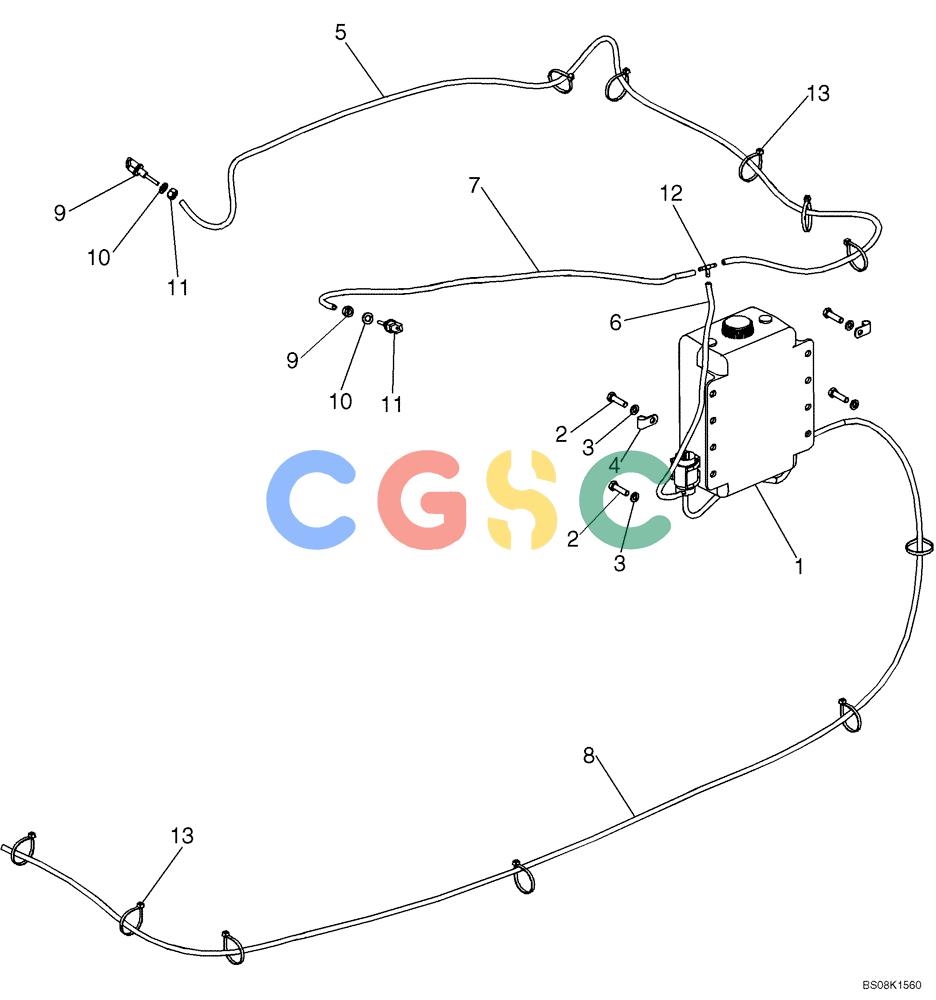

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 236781A1 | [1] | CONTAINER | CASReservoir, Windshield Washer Tank; 4 Quart (3.8 Litre); Includes (2) Pumps, Pump Mounting Side Clips, Tee, (2) Hoses, Cap; Component Parts Not Serviced Separately |
| 2. | 614-8030 | [4] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43128 |
| 3. | 892-11008 | [4] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 4. | 515-22111 | [2] | CLAMP,7/16", Insul, 5/16" Bolt | CAS11.1 mm P Insulated, M8 Bolt Superseded by part number: 858956 |
| 5. | 87728476 | [1] | HOSE | BHBHOSE, 2270 mm (89 3/8 in) Hose; Left-Hand Door; Cut From 397154A1 |
| 6. | 87585496 | [1] | HOSE WASHER | BUR356 mm (14-1/64 in) Hose; RH to LH Door; Cut From 397154A1 |
| 7. | 87728477 | [1] | HOSE WASHER,4.76 mm ID x 790.00 mm | BHBRight-Hand Door; Cut From 397154A1 |
| 8. | 87728478 | [1] | HOSE WASHER,4.76 mm ID x 2475.00 mm | BHBCab Feed. Cut From 397154A1 |
| 9. | 284154A1 | [2] | NOZZLE,3/8" - 16 | CASIncludes A Steel and Rubber Washer, Which Are Not Serviced Separately |
| 10. | 492-11038 | [2] | LOCK WASHER,3/8" | CAS Superseded by part number: 72187249, 80680 |
| 11. | 425-106 | [2] | NUT,3/8"-16, Cl 5 | CAS Superseded by part number: 9628503 |
| 12. | 87427778 | [1] | FITTING | CASTee; 3/16 in |
| 13. | L11541 | [11] | CABLE TIE,203.2mm L, Nylon | CAS Superseded by part number: 87000312 |
