神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (03-003) - MAINFOLD-AIR INTAKE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
341 次

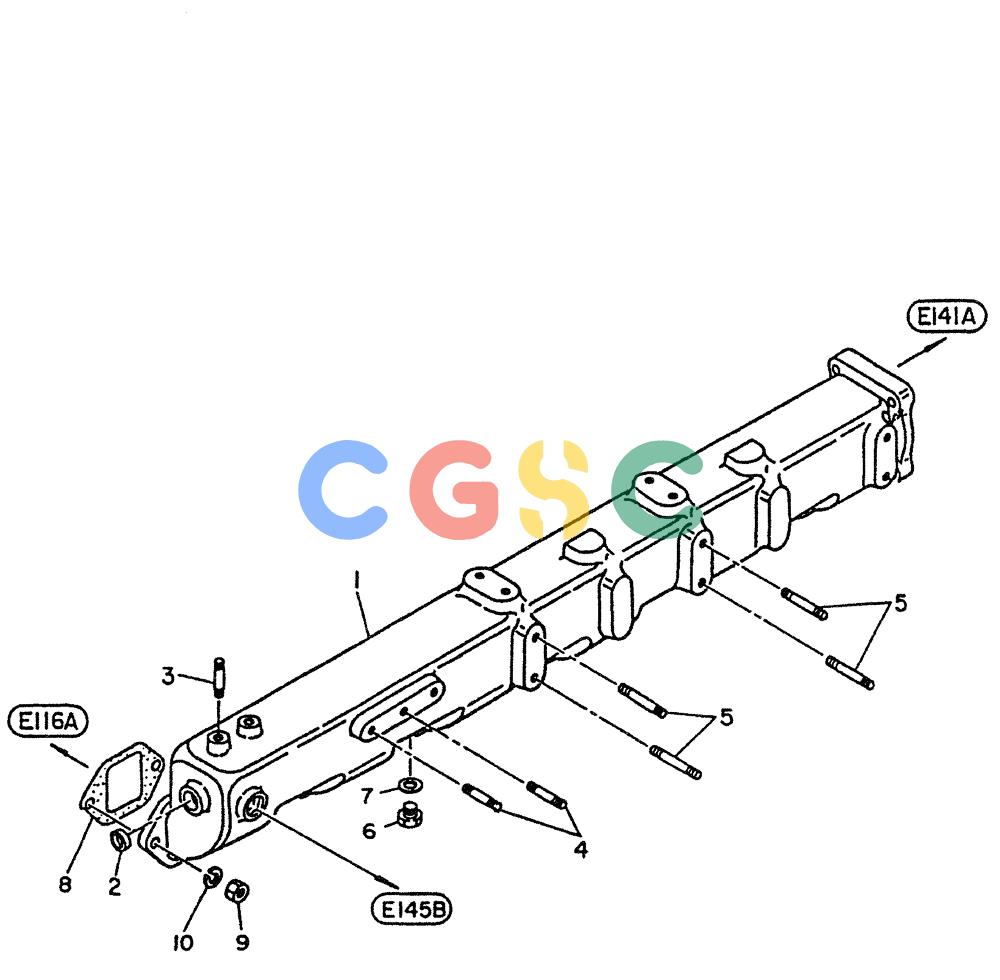

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1400296109 | [1] | INLET MANIFOLD | KOBMANIFOLD-INTAKE (FOR A1) |
| 1. | VG1400296069 | [1] | INTAKE MANIFOLD HANI FOLD-INTAKE (FOR A12,A13) | INTAKE MANIFOLD HANI FOLD-INTAKE (FOR A12,A13) |
| 2. | VG0093312000 | [1] | PLUG PLUG-CUP | PLUG PLUG-CUP |
| 3. | VG0822481610 | [2] | STUD | KOBSTUD (FOR A1), Start Year: 01-DEC-83 |
| 3. | VG0822481410 | [2] | STUD | KOBSTUD (FOR A1) |
| 4. | VG0822481610 | [2] | STUD | KOBSTUD (FOR A1), Start Year: 01-DEC-83 |
| 4. | VG0822481410 | [2] | STUD | KOBSTUD (FOR A1) |
| 5. | VG0822902010 | [4] | STUD STUD (FOR A1) | STUD STUD (FOR A1) |
| 6. | VG0893144210 | [1] | PLUG PLUG-STR THD (FOR A13) | PLUG PLUG-STR THD (FOR A13) |
| 7. | VG0135122124 | [1] | GASKET | KOBGASKET (FOR A13) |
| 8. | VG1403596005 | [6] | GASKET GASKET-MANIFOLD | GASKET GASKET-MANIFOLD |
| 9. | VG0891114010 | [12] | NUT | NUT |
| 10. | VG0891514010 | [12] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
