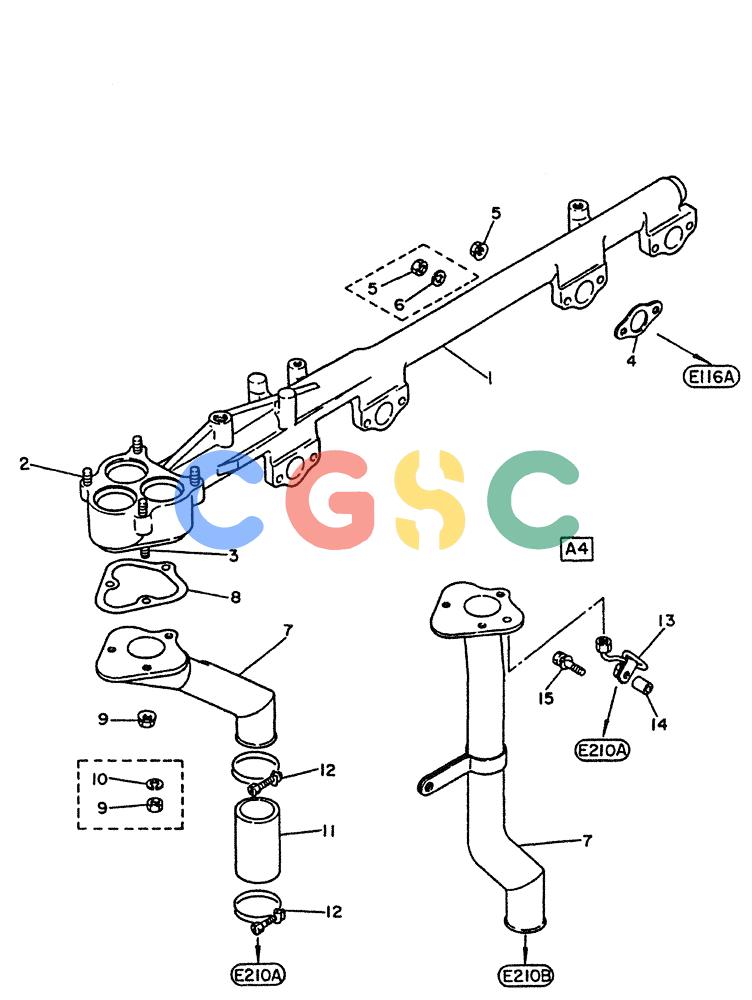

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (03-006) - MAINFOLD-WATER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1106196006 | [1] | INLET MANIFOLD | KOBMANIFOLD-WATER (FOR A2,A4) |
| 1. | VG1106196073 | [1] | MANIFOLD-WATER (FOR A11) | |
| 1. | VG0822483010 | [4] | STUD | KOBSTUD |
| 3. | VG0822482010 | [3] | STUD | KOBSTUD |
| 4. | VG1106296000 | [4] | GASKET-WATER | |
| 5. | VG0891110837 | [8] | NUT W/WASHER NUT,W/WASHER (FOR A4,A11), Start Year: 01-JUL-85 | NUT W/WASHER NUT,W/WASHER (FOR A4,A11), Start Year: 01-JUL-85 |
| 5. | VG0891110810 | [8] | NUT NUT (FOR A4,A11) | NUT NUT (FOR A4,A11) |
| 6. | VG0891513810 | [8] | WASHER SPRING WASHER-SPRING (FOR A4,A11), Years: -01-JUN-85 | WASHER SPRING WASHER-SPRING (FOR A4,A11), Years: -01-JUN-85 |
| 7. | VG2106896009 | [1] | ELBOW | KOBTUBE-BY PASS (FOR A2,A11) |
| 7. | VG2106896005 | [1] | ELBOW | KOBTUBE-BY PASS (FOR A4) |
| 8. | VG2107196000 | [1] | GASKET | KOBGASKET-BY PASS |
| 9. | VG0891110837 | [3] | NUT W/WASHER NUT,W/WASHER (FOR A4,A11), Start Year: 01-JUL-85 | NUT W/WASHER NUT,W/WASHER (FOR A4,A11), Start Year: 01-JUL-85 |
| 9. | VG0891110810 | [3] | NUT NUT (FOR A4,A11) | NUT NUT (FOR A4,A11) |
| 10. | VG0891513810 | [3] | WASHER SPRING WASHER-SPRING (FOR A4,A11), Years: 01-JUN-85-01-JUN-85 | WASHER SPRING WASHER-SPRING (FOR A4,A11), Years: 01-JUN-85-01-JUN-85 |
| 11. | VG2106996010 | [1] | HOSE | KOBHOSE-WATER Superseded by part number: VG2106996013 |
| 12. | VG2138396011 | [2] | CLAMP | KOBCLAMP-HOSE |
| 13. | VG2138996001 | [1] | PIPE | KOBPIPE-BLEED (FOR A4) |
| 14. | VG4879390000 | [1] | SPACER (FOR A4) | |
| 15. | VG0812083028 | [1] | BOLT W/ WASHER BOLT,W/WASHER (FOR A4) | BOLT W/ WASHER BOLT,W/WASHER (FOR A4) |
