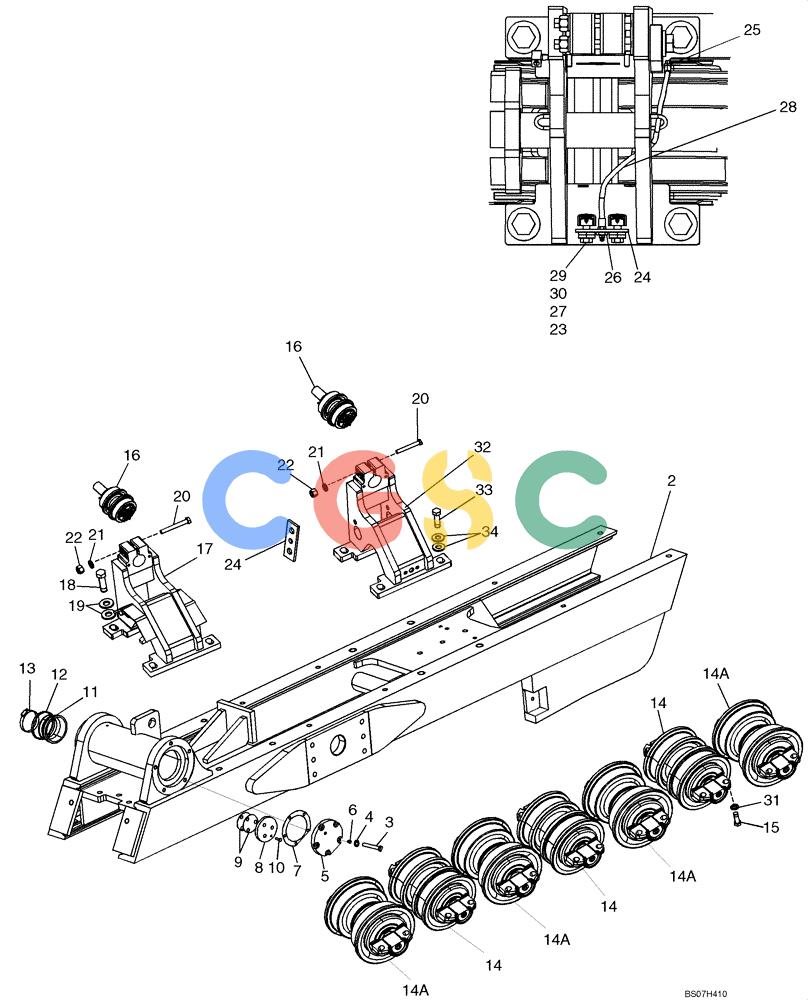

| 1. | 87688742 | [1] | FRAME | BURFRAME, Track, Left Hand, Not Illustrated |
| 2. | 87688743 | [1] | FRAME | BURFRAME, Track, Right Hand |
| 3. | 814-12050 | [10] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 9706702 |
| 4. | 892-11012 | [10] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 5. | 87599552 | [2] | COVER | BURPivot Shaft |
| 6. | 217-432 | [4] | PLUG,Hex Soc, 1/4"-18 | CAS Superseded by part number: 9617020 |
| 7. | R27377 | [2] | GASKET,0.38mm Thk | CASGasket |
| 8. | R36950 | [2] | PLATE | CASPLATE, Pivot Shaft End |
| 9. | R28436 | [16] | SHIM,69.85mm ID x 96.52mm OD x 0.79mm Thk | CASSHIM |
| 10. | 627-16050 | [6] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CAS Superseded by part number: 412398 |
| 11. | R42082 | [2] | SEAL | CAS Superseded by part number: CASR42082 |
| 12. | R55586 | [2] | GUARD | CASGUARD, Pivot Shaft Seal |
| 13. | 214-3172 | [2] | HOSE CLAMP,3-3/4" - 4-5/8", HD Worm | CAS |
| 14. | 87582768 | [6] | ROLLER | BURDouble Flanged Roller, See Figure 05-06 |
| 14A. | 87582767 | [8] | ROLLER | BURSingle Flanged Roller, See Figure 05-06 |
| 15. | 87563126 | [28] | BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8 | BHBBOLT, Locking |
| 16. | 87582766 | [4] | ROLLER | BURCarrier, Component Parts not Serviced Separately |
| 17. | 87599543 | [2] | BRACKET | BURSupport |
| 18. | 87352548 | [8] | BOLT,Hex, M20 x 75mm, Cl 10.9 | BHBBOLT |
| 19. | 86639847 | [16] | WASHER,21.8mm ID x 44.5mm OD x 5mm Thk | RAC |
| 20. | 827-16120 | [8] | BOLT,Hex, M16 x 2 x 120mm, Cl 10.9 | CAS Superseded by part number: 43281 |
| 21. | 87563152 | [8] | WASHER,17mm ID x 26.5mm OD x 4mm Thk | WICWASHER |
| 22. | 832-41416 | [8] | NUT,M16 x 2, Cl 10 | CAS Superseded by part number: 86512555 |
| 23. | 336371A1 | [4] | PIN | CAS |
| 24. | 87599553 | [2] | COVER PLATE | BUR |
| 25. | 217-1014 | [2] | ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male | CAS Superseded by part number: 217-20 |
| 26. | F53473 | [2] | LOCK NUT,1/8-27 NPSM | CAS Superseded by part number: 76085536 |
| 27. | 87447306 | [4] | SQUARE NUT | CAS |
| 28. | 87567381 | [2] | HOSE ASSY. | BURGrease, 390mm (15 - 3/8 in) |
| 29. | 86566268 | [4] | LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd | NH |
| 30. | 87376144 | [8] | WASHER,13mm ID x 28mm OD x 5mm Thk | FLX |
| 31. | 86625260 | [38] | WASHER,21.8mm ID x 37.5mm OD x 4mm Thk | FAR |
| 32. | 87599542 | [2] | BRACKET | BURSupport, Equalizer Beam Superseded by part number: 87714082 |
| 33. | 87564731 | [8] | BOLT,Hex, M24 x 80mm, Cl 10.9 | BURBOLT, Locking |
| 34. | 87016613 | [16] | WASHER,25.8mm ID x 56.5mm OD x 6mm Thk | RAC |
