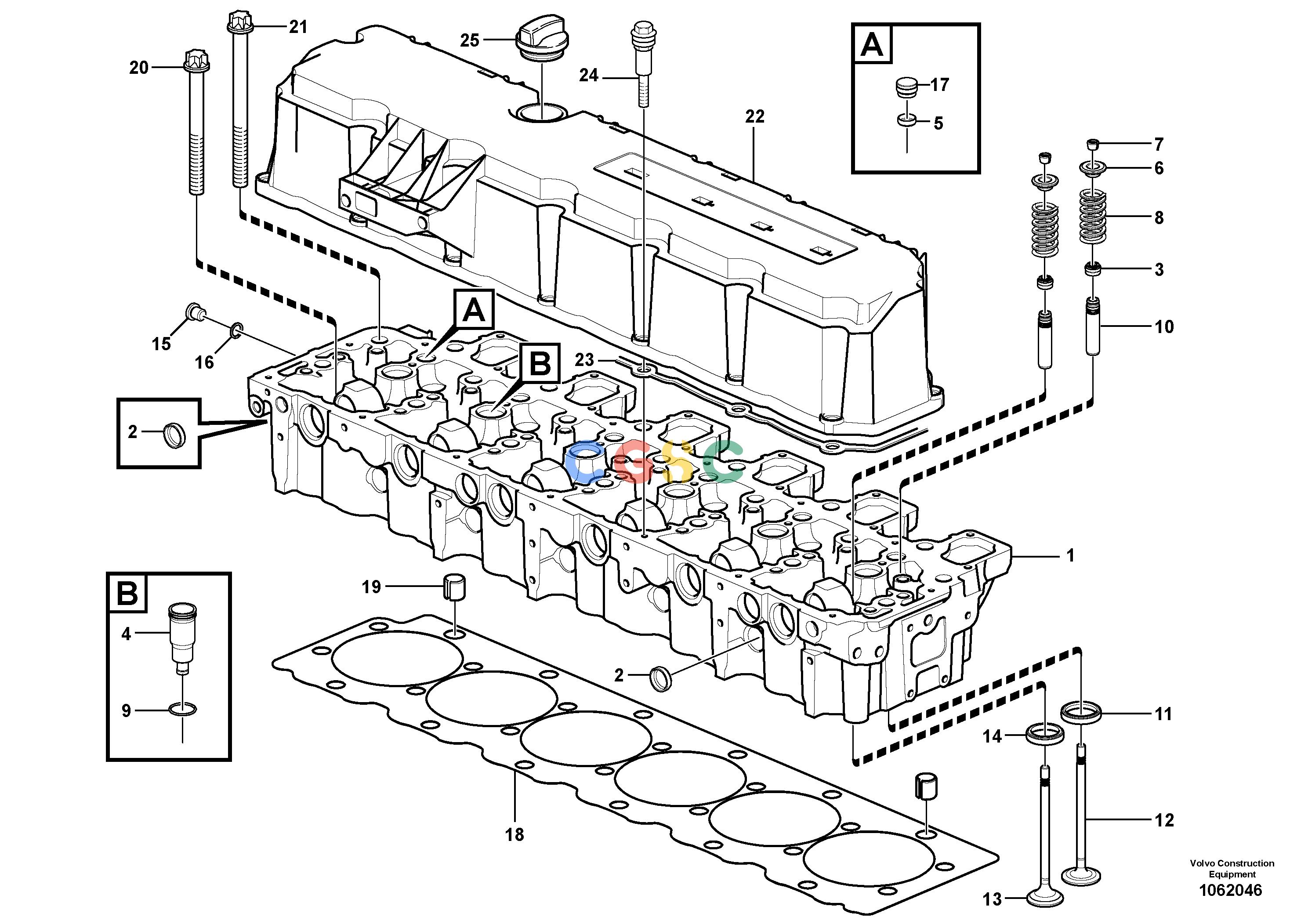

沃尔沃零件查询L120G Cylinder head with fitting partsS/N 30001-31533 NoneNone84663, 85100Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22086829
|
[1] |
Cylinder head
|
|
| 2. |
VOE20834024
|
[6] |
Cap plug
|
|
| 3. |
VOE21751313
|
[24] |
Valve stem seal
|
|
| 4. |
VOE20903104
|
[6] |
Sleeve
|
|
| 5. |
VOE20799312
|
[6] |
Cap plug
|
|
| 6. |
VOE20788860
|
[24] |
Cap
|
|
| 7. |
VOE20459857
|
[48] |
Valve sleeve
|
|
| 8. |
VOE20859646
|
[24] |
Compression spring
|
|
| 9. |
VOE20903092
|
[6] |
O-ring
|
|
| 10. |
VOE21714188
|
[24] |
Valve guide
|
|
| 11. |
VOE21714184
|
[12] |
Valve insert
|
|
| 12. |
VOE21777587
|
[12] |
Inlet valve
|
|
| 13. |
VOE20833936
|
[12] |
Exhaust valve
|
|
| 14. |
VOE20833930
|
[12] |
Valve seat
|
|
| 15. |
VOE20459941
|
[1] |
Plug
|
|
| 16. |
VOE20460061
|
[1] |
Sealing ring
|
|
| 17. |
VOE20834024
|
[6] |
Cap plug
|
|
| 18. |
VOE21714215
|
[1] |
Gasket
|
THICK = 1,15 mm
|
| 18. |
VOE21714221
|
[1] |
Gasket
|
THICK = 1,25 mm
|
| 19. |
VOE20799601
|
[2] |
Spring pin
|
|
| 20. |
VOE20792992
|
[6] |
Six point screw
|
|
| 21. |
VOE20793002
|
[20] |
Six point screw
|
|
| 22. |
VOE21002531
|
[1] |
Valve cover
|
|
| 23. |
VOE20788793
|
[1] |
Gasket
|
|
| 24. |
VOE20833901
|
[15] |
Screw
|
|
| 25. |
VOE20902400
|
[1] |
Filler cap
|
|
