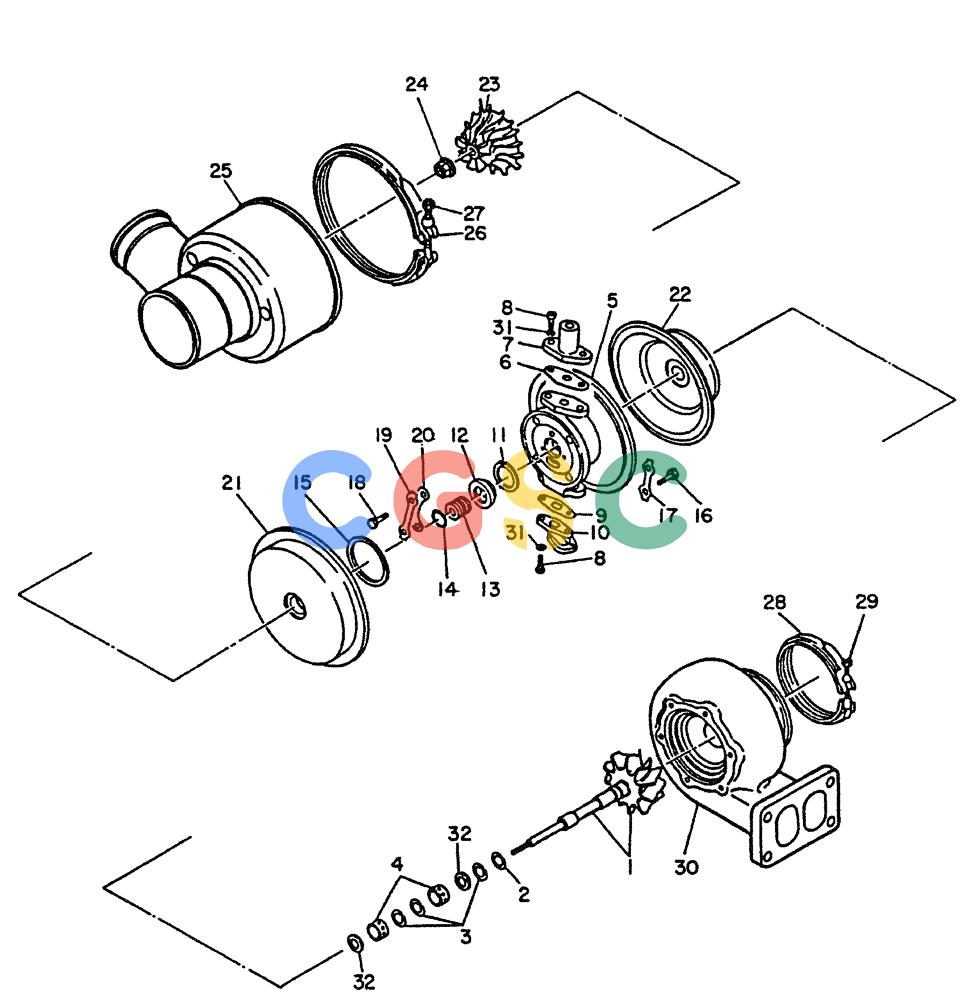

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (03-008) - TURBO-EXHAUST, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-32. | VG1420196003 | [1] | TURBOCHARGER | KOBTURBO-EXHAUST |
| 1. | VG1420499000 | [1] | WHEEL SHAFT | KOBSHAFT-WHEEL |
| 2. | VG1420599000 | [1] | PISTON RING SET | KOBRING-PISTON |
| 3. | VG1420699000 | [3] | PISTON RING SET | KOBRING-RETAINING |
| 4. | VG1420799011 | [2] | SET OF STD MAIN BRGS | KOBBEARING |
| 5. | VG1420899000 | [1] | HOUSING-CENTER | |
| 6. | VG1420999000 | [1] | GASKET | KOBGASKET |
| 7. | VG1421099002 | [1] | ADAPTER | |
| 8. | VG1421199000 | [4] | SCREW | |
| 9. | VG1421299000 | [1] | GASKET | KOBGASKET |
| 10. | VG1421399002 | [1] | ADAPTER | |
| 11. | VG1421499000 | [1] | SET OF STD MAIN BRGS | KOBBEARING |
| 12. | VG1421599000 | [1] | COLLAR CLAMP | KOBCOLLAR-THRUST |
| 13. | VG1421699000 | [1] | SPACER | KOBSPACER-THRUST |
| 14. | VG1420599003 | [1] | PISTON RING | KOBRING-PISTON |
| 15. | VG1421799000 | [1] | SEAL RETAINER | KOBRING-SEAL |
| 16. | VG1421899000 | [4] | BOLT BOLT | BOLT BOLT |
| 17. | VG1421999000 | [2] | PLATE | KOBPLATE-LOCK |
| 18. | VG1422099000 | [6] | BOLT | |
| 19. | VG1421999004 | [3] | PLATE | KOBPLATE-LOCK |
| 20. | VG1422199002 | [3] | CLAMP | KOBCLAMP |
| 21. | VG1422299000 | [1] | PLATE | KOBPLATE ASSY |
| 22. | VG1422399000 | [1] | SHROUD | |
| 23. | VG1422499000 | [1] | IMPELLER | |
| 24. | VG1422599000 | [1] | NUT | |
| 25. | VG1422699000 | [1] | HOUSING | |
| 26. | VG1423099007 | [1] | BAND-V | |
| 27. | VG1420399001 | [1] | NUT | |
| 28. | VG1423096000 | [1] | V-BAND BAND-V | V-BAND BAND-V |
| 29. | VG1420399000 | [1] | NUT LOCK NUT | NUT LOCK NUT |
| 30. | VG1420299000 | [1] | HOUSING | |
| 31. | VG1422799000 | [4] | WASHER WASHER | WASHER WASHER |
| 32. | VG1421999012 | [2] | WASHER | |
| . . | VG1420199026 | [1] | KIT | KOBROTATING KIT(INC.KEY NO.1-6,9,11-24,27,29) |
| . . | VG1420199025 | [1] | COLLAR CLAMP | KOBREPLACEMENT KIT (INC.KEY. NO.2-4,6, 9,14,15,17-20,24,27,29) |
