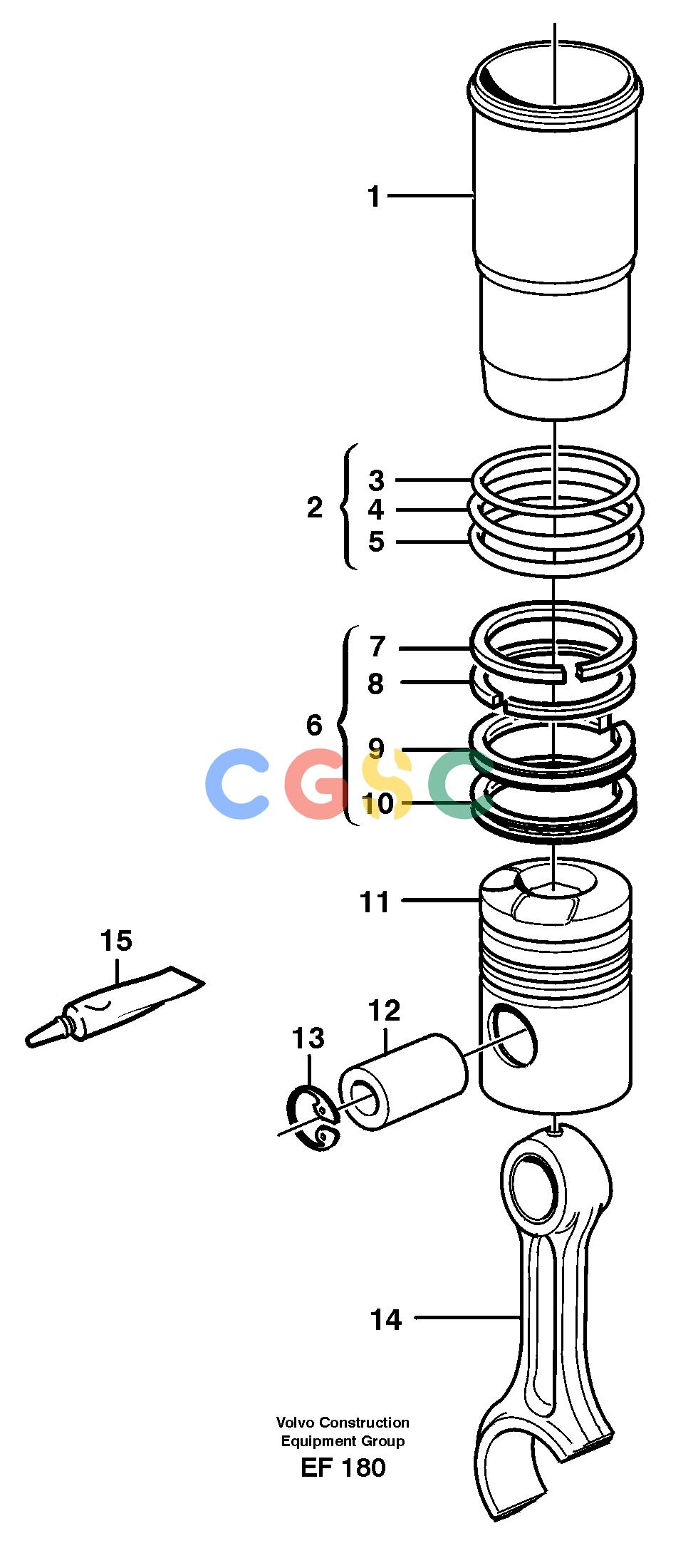

沃尔沃零件查询L150D Cylinder liner and pistonNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
891 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE3827150
|
[6] |
Cylinder liner kit
|
|
| 1. |
VOE479380
|
[6] |
Cylinder liner
|
|
| 2. |
VOE271157
|
[6] |
Sealing kit
|
|
| 3. |
VOE422713
|
[6] |
Sealing ring
|
UPPER
|
| 4. |
VOE1546229
|
[6] |
Sealing ring
|
CENT
|
| 5. |
VOE424832
|
[6] |
Sealing ring
|
LOW
|
| 6. |
VOE276197
|
[6] |
Piston ring kit
|
|
| 7. |
VOE479445
|
[6] |
Compression ring
|
UPPER
|
| 8. |
VOE864510
|
[6] |
Compression ring
|
LOW
|
| 9. |
VOE422617
|
[6] |
Oil scraper ring
|
|
| 10. |
VOE467479
|
[6] |
Expansion ring
|
|
| 11. |
VOE8194470
|
[6] |
Piston
|
|
| 12. |
VOE8194586
|
[6] |
Gudgeon pin
|
|
| 13. |
VOE914529
|
[12] |
Retaining ring
|
|
| 14. |
|
[1] |
Connecting rod
|
|
| 15. |
VOE1161277
|
[REQ] |
Sealant
|
20 GRAM
|
| |
VOE11713514
|
[REQ] |
Sealant
|
304 ML
|
