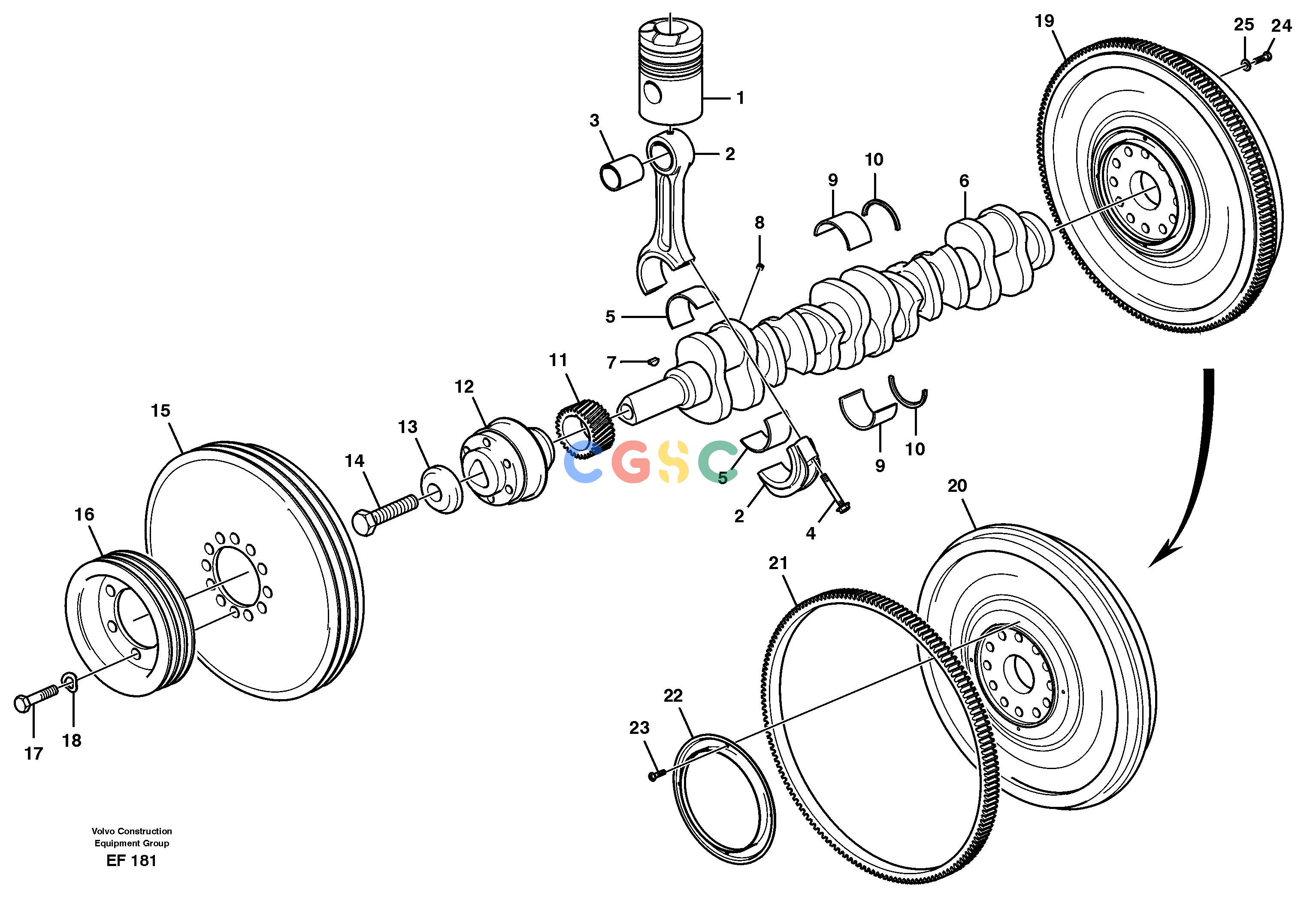

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Piston
|
|
| |
VOE422706
|
[6] |
Connecting rod
|
|
| 2. |
VOE422425
|
[6] |
Connecting rod
|
|
| 3. |
VOE422708
|
[6] |
Bushing
|
|
| 4. |
VOE1545479
|
[12] |
Screw
|
|
| 5. |
VOE270124
|
[6] |
Big End Brg Kit
|
STD
|
| |
VOE270125
|
[6] |
Big End Brg Kit
|
0,25 MM U SZ
|
| |
VOE270126
|
[6] |
Big End Brg Kit
|
0,50 MM U SZ
|
| |
VOE270127
|
[6] |
Big End Brg Kit
|
0,75 MM U SZ
|
| |
VOE270128
|
[6] |
Big End Brg Kit
|
1,00 MM U SZ
|
| |
VOE20381957
|
[1] |
Crankshaft
|
|
| 6. |
VOE8125584
|
[1] |
Crankshaft
|
|
| 7. |
VOE422253
|
[1] |
Key
|
|
| 8. |
VOE13978130
|
[6] |
Plug
|
|
| 9. |
VOE270438
|
[7] |
Main bearing kit
|
STD
|
| |
VOE270439
|
[7] |
Main bearing kit
|
0,25 MM U SZ
|
| |
VOE270440
|
[7] |
Main bearing kit
|
0,50 MM U SZ
|
| |
VOE270441
|
[7] |
Main bearing kit
|
0,75 MM U SZ
|
| |
VOE270442
|
[7] |
Main bearing kit
|
1,00 MM U SZ
|
| |
VOE270443
|
[7] |
Main bearing kit
|
1,25 MM U SZ
|
| 10. |
VOE276758
|
[0001] |
Thrust washer kit
|
STD
|
| |
VOE276759
|
[00 1] |
Thrust washer kit
|
0,1 MM O SZ
|
| |
VOE276760
|
[0 1] |
Thrust washer kit
|
0,2 MM O SZ
|
| |
VOE276761
|
[1] |
Thrust washer kit
|
0,3 MM O SZ
|
| 11. |
VOE423080
|
[1] |
Gear
|
|
| 12. |
VOE424958
|
[1] |
Hub
|
(VOE 478506)
|
| 13. |
VOE422124
|
[1] |
Washer
|
|
| 14. |
VOE941494
|
[1] |
Screw
|
|
| 15. |
VOE422924
|
[1] |
Vibration damper
|
|
| 16. |
VOE468187
|
[1] |
Pulley
|
|
| 17. |
VOE955549
|
[6] |
Hexagon screw
|
|
| 18. |
VOE13941909
|
[6] |
Washer
|
|
| 19. |
VOE11031833
|
[1] |
Flywheel
|
|
| 20. |
VOE11031797
|
[1] |
Flywheel
|
|
| 21. |
VOE420794
|
[1] |
Gear ring
|
|
| 22. |
VOE11031772
|
[1] |
Oil deflector ring
|
|
| 23. |
VOE13905650
|
[4] |
Drive screw
|
|
| 24. |
VOE478717
|
[14] |
Screw
|
|
| 25. |
VOE467773
|
[14] |
Washer
|
|
