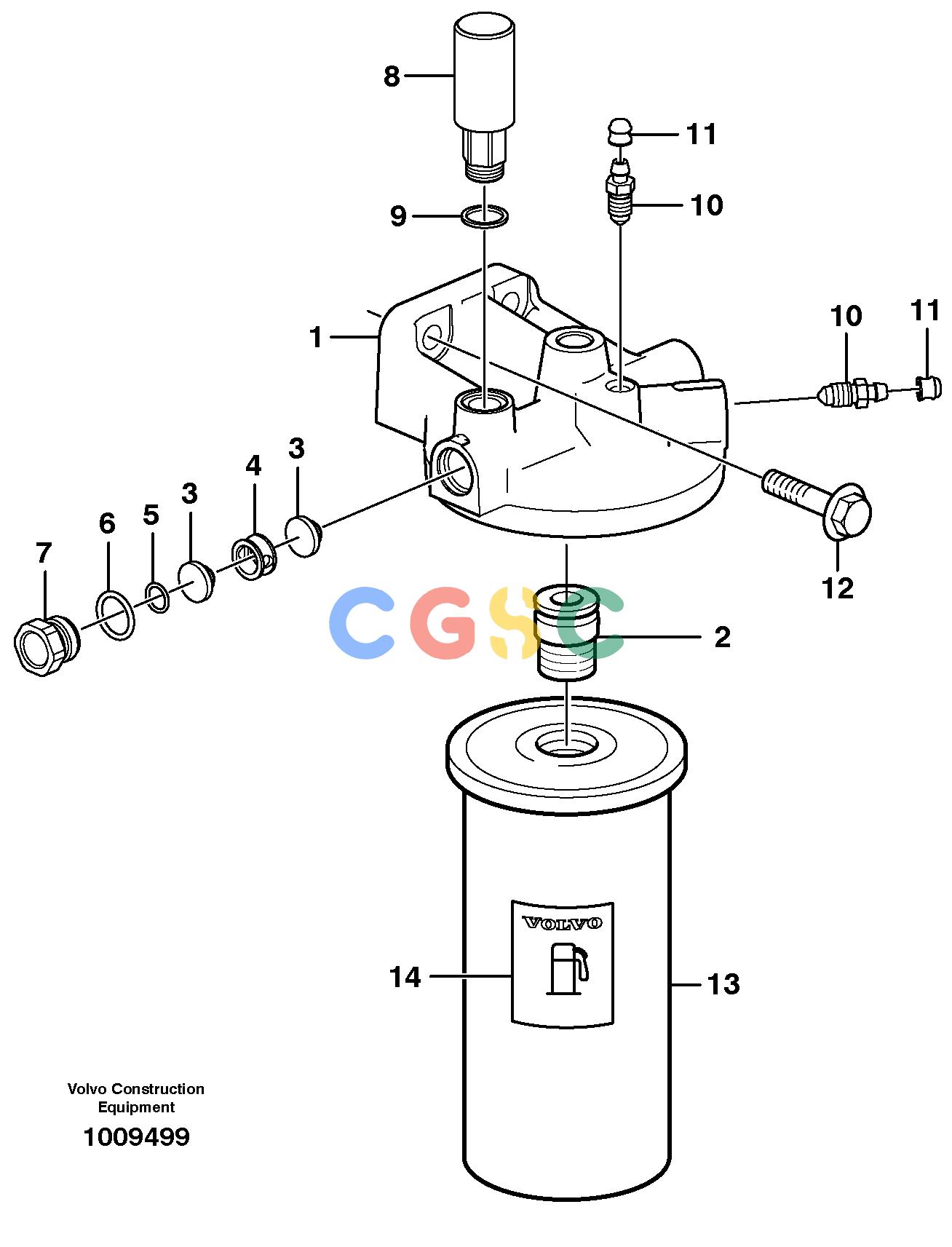

沃尔沃零件查询L150E Fuel filterS/N 8001 - 9455 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11128033
|
[1] |
Filter housing
|
|
| 1. |
VOE11128032
|
[1] |
Filter housing
|
|
| 2. |
VOE20381169
|
[1] |
Nipple
|
|
| 3. |
VOE244834
|
[2] |
Valve
|
|
| 4. |
VOE3964717
|
[1] |
Spacer sleeve
|
|
| 5. |
VOE976971
|
[1] |
O-ring
|
|
| 6. |
VOE1526474
|
[1] |
O-ring
|
|
| 7. |
VOE8148328
|
[1] |
Nipple
|
|
| 8. |
VOE11716756
|
[1] |
Hand pump
|
|
| 9. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 10. |
VOE20548012
|
[2] |
Nipple
|
|
| 11. |
VOE7656456
|
[2] |
Bellows
|
|
| 12. |
|
[2] |
Flange screw
|
|
| 13. |
VOE15126069
|
[1] |
Fuel filter
|
|
| 14. |
VOE11128131
|
[1] |
Decal
|
|
