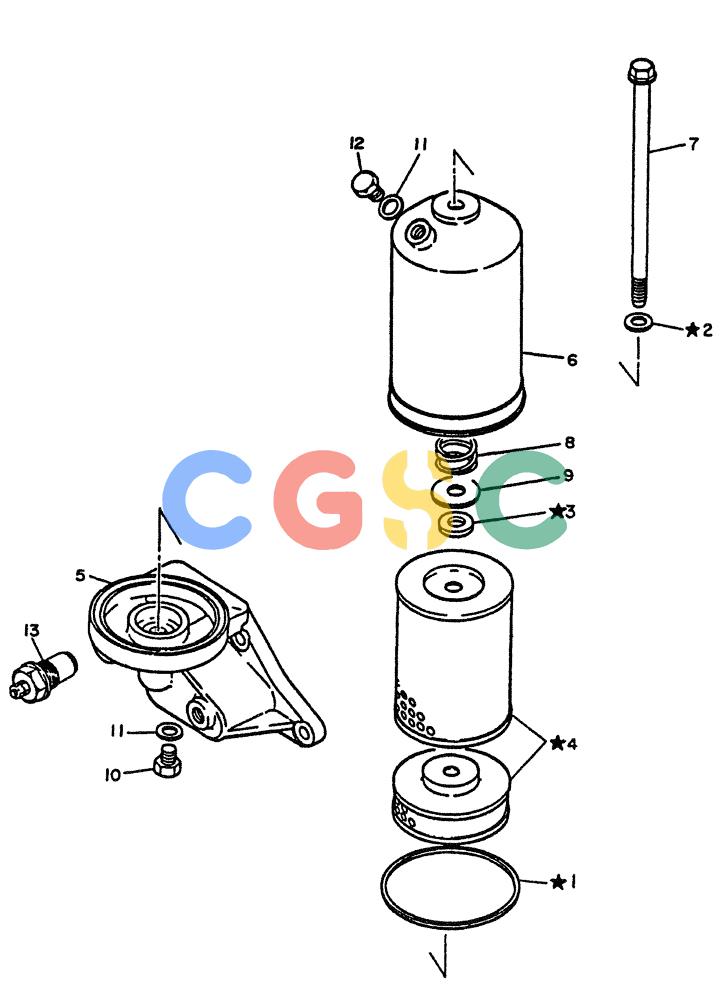

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (04-005) - FILTER-OIL, (INNER PARTS), FULL FLOW Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
134 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VG1520096007 | [1] | FILTER ASSY FILTER-OIL | FILTER ASSY FILTER-OIL |
| 1-4. | VG1527490225 | [1] | ELEMENT | KOBELEMENT KIT (2451R131-1F) Superseded by part number: 2451U275-1 |
| 5. | VG1527199103 | [1] | U-BRACKET | KOBBODY ASSY |
| 6. | VG1527299009 | [1] | FILTER | KOBCASE |
| 7. | VG1527599013 | [1] | BOLT | KOBBOLT-CENTER Superseded by part number: VG1527599010 |
| 8. | VG1529090002 | [1] | SPRING | KOBSPRING-SET |
| 9. | VG1529190001 | [1] | SPRING SEAT | KOBRETAINER-SPRING |
| 10. | VG1528499001 | [1] | DRAIN PLUG | KOBPLUG-DRAIN Superseded by part number: VG1528499010 |
| 11. | VG0998121400 | [2] | GASKET | KOBPACKING Superseded by part number: VG0135122144 |
| 12. | VG1528699002 | [1] | PLUG PLUG-AIR | PLUG PLUG-AIR |
| 13. | VG1527099026 | [1] | ALARM | KOBALARM KIT |
