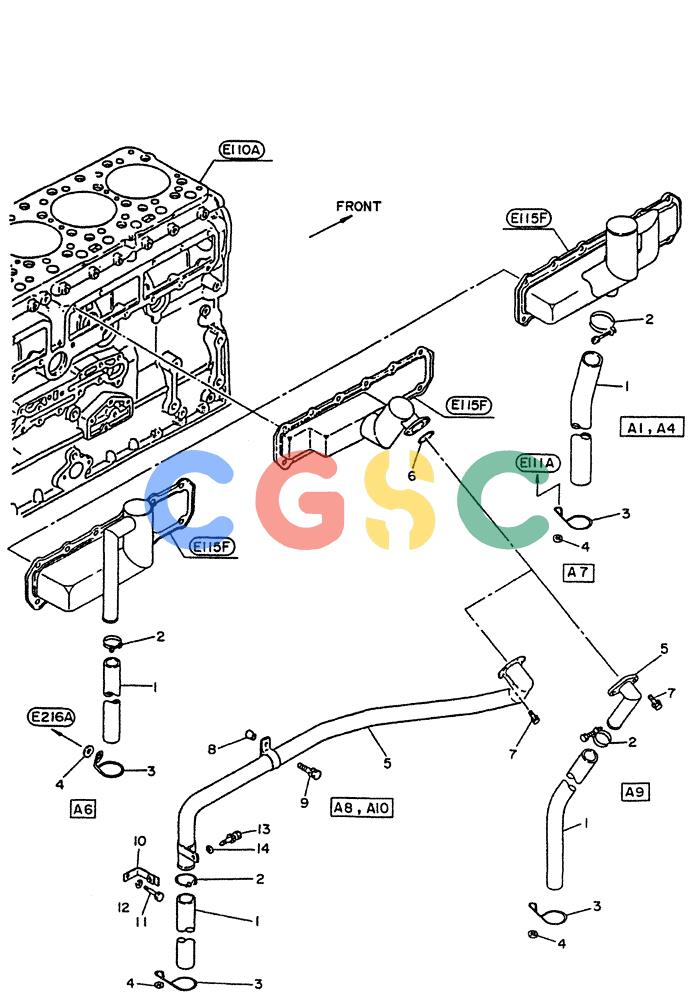

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (04-007) - HOSE-BREATHER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1526395001 | [1] | HOSE | KOBHOSE-VINYL(L=600) (FOR A1) |
| 1. | VG1526396005 | [1] | HOSE | KOBHOSE-VINYL(L=800) (FOR A4,A9,A10) |
| 1. | VG1526397002 | [1] | HOSE-VINYL(L=1000) (FOR A6) | |
| 1. | VG1526396008 | [1] | HOSE-VINYL(L=430) (FOR A8) | |
| 2. | VG2138397000 | [1] | CLIP-HOSE (FOR A1,A4,A6,A8,A9,A10) | |
| 3. | VG1527696004 | [1] | RETAINER-HOSE (FOR A1,A4,A7,A8,A9,A10) | |
| 3. | VG1527696006 | [1] | RETAINER-HOSE (FOR A6) | |
| 4. | VG0891543810 | [1] | WASHER WASHER-PLAIN | WASHER WASHER-PLAIN |
| 5. | VG1151096000 | [1] | PIPE-BREATHER (FOR A8,A10) | |
| 5. | VG1151096003 | [1] | PIPE-BREATHER (FOR A9) (01/1985) | |
| 5. | VG1151096001 | [1] | PIPE-BREATHER (FOR A9) | |
| 6. | VG1511896002 | [1] | RUBBER RING | KOBO RING (FOR A8,A9,A10) |
| 7. | VG0811082062 | [2] | BOLT | KOBBOLT,W/WASHER (FOR A8,A9,A10) |
| 8. | VG0193100154 | [1] | SPACER (FOR A8,A10) | |
| 9. | VG0811083062 | [1] | BOLT,W/WASHER (FOR A8,A10) | |
| 10. | VG0193512394 | [1] | STAY (FOR A8,A10) | |
| 11. | VG0812102010 | [1] | BOLT (FOR A8,A10) | |
| 12. | VG0891514010 | [1] | WASHER WASHER-SPRING (FOR A8,A10) | WASHER WASHER-SPRING (FOR A8,A10) |
| 13. | VG0811081662 | [1] | BOLT BOLT,W/WASHER (FOR A8,A10) | BOLT BOLT,W/WASHER (FOR A8,A10) |
| 14. | VG0891543810 | [1] | WASHER WASHER-PLAIN (FOR A8,A10) | WASHER WASHER-PLAIN (FOR A8,A10) |
