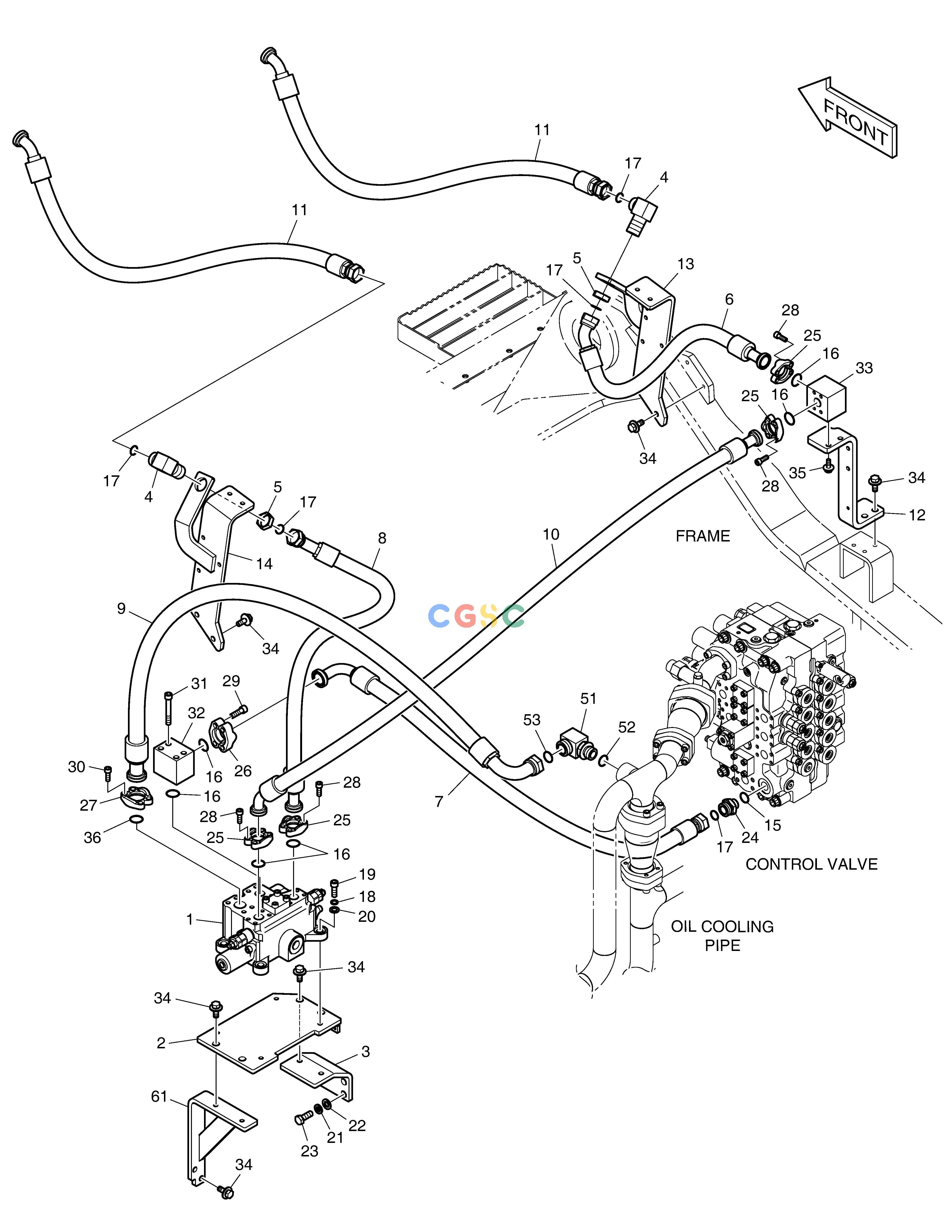

斗山零件查询MAIN PIPING - ARTI. BOOM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05126
|
[-] |
|
|
| -. |
K1042459
|
[-] |
MAIN PIPING;ARTI BOOM
|
|
| 1. |
K1033235A
|
[1] |
VALVE;CONTROL
|
|
| 10. |
DS2039222
|
[1] |
|
|
| 11. |
DS2017063
|
[2] |
HOSE
|
|
| 12. |
K1049064
|
[1] |
BRACKET
|
|
| 13. |
K1049065
|
[1] |
BRACKET
|
|
| 14. |
K1049066
|
[1] |
BRACKET
|
|
| 15. |
S8000241
|
[1] |
O-RING
|
|
| 16. |
DS2856003
|
[6] |
O-RING
|
|
| 16. |
2180-1026D19
|
[6] |
O-RING
|
DS2856003
|
| 17. |
S8030161
|
[5] |
O-RING
|
|
| 18. |
S5110703
|
[4] |
WASHER
|
|
| 19. |
S2215366
|
[4] |
BOLT
|
|
| 2. |
K1024011C
|
[1] |
BRACKET
|
|
| 20. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 21. |
S5010813
|
[4] |
WASHER;PLAIN
|
|
| 22. |
S5102803
|
[4] |
WASHER
|
|
| 23. |
S0518466
|
[4] |
BOLT
|
|
| 24. |
DS2232232
|
[1] |
ADAPTER
|
|
| 25. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 26. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 27. |
4215-1003D7
|
[2] |
FLANGE;HALF
|
|
| 28. |
S2212266
|
[16] |
BOLT
|
|
| 29. |
S2215466
|
[4] |
BOLT
|
|
| 3. |
K1049268
|
[1] |
BRACKET
|
|
| 30. |
S2215266
|
[4] |
BOLT
|
|
| 31. |
S2216366
|
[4] |
BOLT;SOCKET
|
|
| 32. |
K1037707A
|
[1] |
BLOCK
|
|
| 33. |
423-00180
|
[1] |
BLOCK
|
|
| 34. |
DS0025020
|
[13] |
BOLT
|
|
| 35. |
DS0025016
|
[2] |
BOLT
|
|
| 36. |
2180-1026D23
|
[1] |
O-RING
|
DS2856004
|
| 36. |
DS2856004
|
[1] |
O-RING
|
|
| 4. |
DS2290010
|
[2] |
ELBOW
|
|
| 5. |
121-00010D9
|
[2] |
NUT
|
|
| 51. |
DS2304096
|
[1] |
ELBOW
|
|
| 52. |
S8000291
|
[1] |
O-RING
|
|
| 53. |
2180-1026D37
|
[1] |
O-RING
|
|
| 6. |
DS2082013
|
[1] |
HOSE
|
|
| 61. |
K1029828A
|
[1] |
BRACKET
|
|
| 7. |
DS2018214
|
[1] |
HOSE
|
|
| 8. |
DS2082029
|
[1] |
HOSE
|
|
| 9. |
DS2025128
|
[1] |
HOSE
|
|
