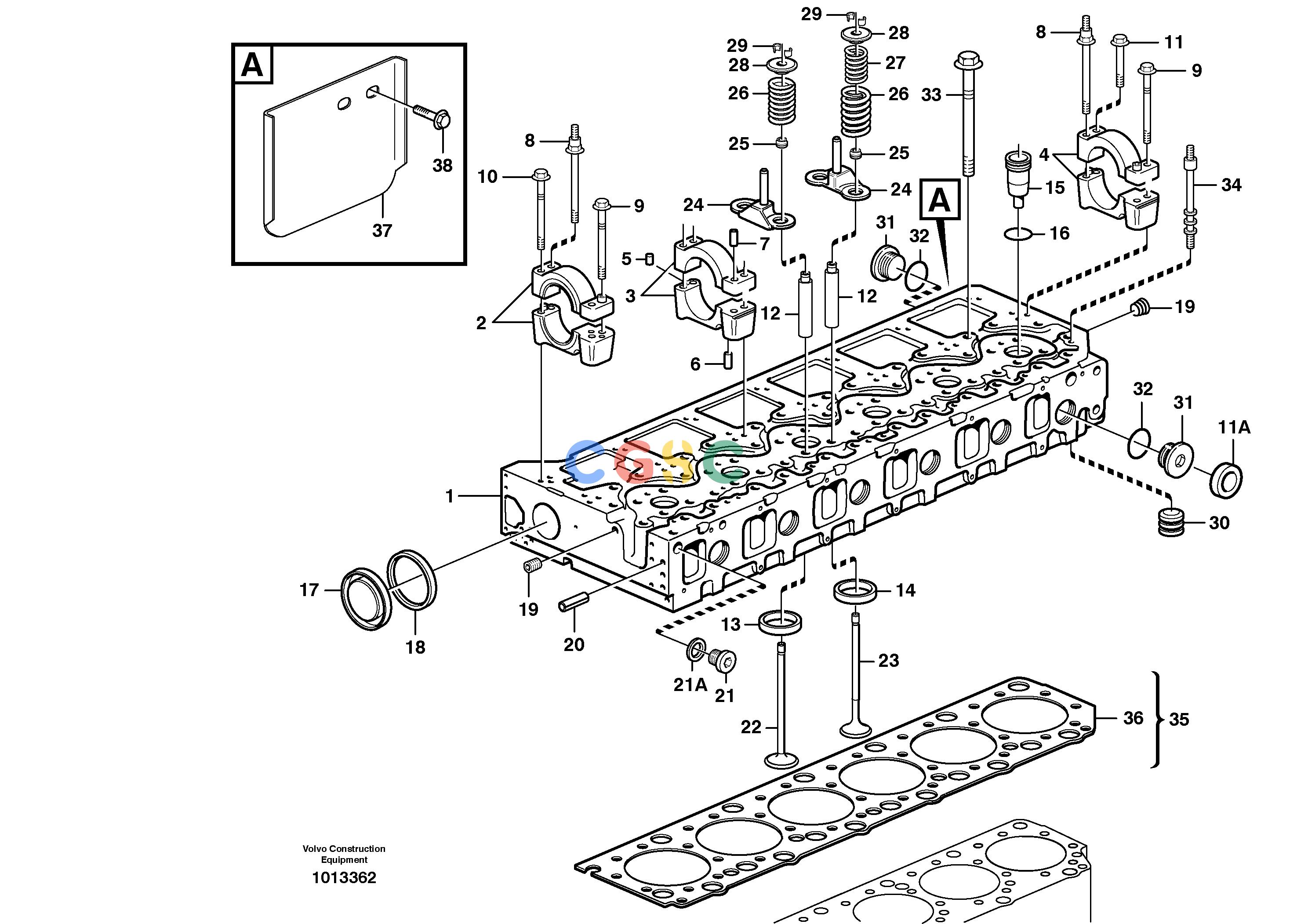

沃尔沃零件查询L180E Cylinder head.HIGH-LIFT S/N 5004 - 7398ENG - 250005-ENG 250006 - 302887NoneNone8188170 ENG - 302887Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE3165239
|
[1] |
Cylinder head
|
|
| |
VOE20561911
|
|
Cylinder head
|
|
| |
|
[1] |
Cylinder head
|
|
| |
VOE20535867
|
|
Cylinder head
|
|
| 1. |
VOE3165381
|
[1] |
Cylinder head
|
|
| |
VOE3165309
|
[1] |
Bearing housing
|
|
| 2. |
VOE3165130
|
[1] |
Bearing housing
|
|
| 3. |
VOE3165133
|
[5] |
Bearing housing
|
|
| 4. |
VOE3165136
|
[1] |
Bearing housing
|
|
| 5. |
VOE950542
|
[7] |
Pin
|
|
| 6. |
VOE950562
|
[14] |
Pin
|
|
| 7. |
VOE1546484
|
[14] |
Sleeve
|
|
| 8. |
VOE21344812
|
[7] |
Stud
|
|
| 9. |
VOE1547889
|
[14] |
Screw
|
L = 127 MM
|
| 10. |
VOE21344752
|
[1] |
Flange screw
|
L = 106 MM
|
| 11. |
VOE1677283
|
[6] |
Screw
|
L = 70 MM
|
| 11A. |
VOE8131707
|
|
Cap plug
|
|
| 12. |
VOE20905400
|
[24] |
Valve guide
|
|
| 13. |
VOE3183227
|
[12] |
Valve seat
|
STD, Inlet
|
| |
VOE3183228
|
[12] |
Valve seat
|
0,2 MM, O SZ, Inlet
|
| 14. |
VOE3165369
|
[12] |
Valve seat
|
STD, Outlet
|
| |
VOE3165397
|
[12] |
Valve seat
|
0,2 MM, O SZ, Outlet
|
| 15. |
VOE3183241
|
[6] |
Sleeve
|
|
| |
VOE3183241
|
|
Sleeve
|
|
| 16. |
VOE20536487
|
[6] |
O-ring
|
|
| |
VOE20536487
|
|
O-ring
|
|
| 17. |
VOE8170553
|
[1] |
Cap plug
|
|
| 18. |
VOE1544710
|
[1] |
Sealing ring
|
|
| 19. |
VOE13968062
|
[2] |
Plug
|
|
| 20. |
VOE422426
|
[1] |
Pin
|
|
| 21. |
VOE968060
|
[1] |
Plug
|
|
| 21A. |
VOE13947281
|
[1] |
Gasket
|
|
| 22. |
VOE3169490
|
[12] |
Inlet valve
|
|
| 23. |
VOE20441945
|
[12] |
Exhaust valve
|
|
| 24. |
VOE1677963
|
[12] |
Guide pin
|
|
| 25. |
VOE21501189
|
[24] |
Valve stem seal
|
|
| 26. |
VOE22691232
|
[24] |
Valve spring
|
|
| 27. |
VOE3183211
|
[12] |
Valve spring
|
|
| 28. |
VOE1546487
|
[24] |
Valve spring washer
|
|
| 29. |
VOE1677875
|
[48] |
Valve sleeve
|
|
| 30. |
VOE3155057
|
[6] |
Nozzle
|
|
| |
VOE3165025
|
[12] |
Plug
|
|
| 31. |
VOE3155171
|
[12] |
Plug
|
|
| 32. |
VOE949659
|
[12] |
O-ring
|
|
| 33. |
VOE21345131
|
[38] |
Flange screw
|
|
| 34. |
VOE21344784
|
[9] |
Stud
|
|
| 35. |
VOE3099100
|
[1] |
Gasket kit
|
ENG 251793 -
|
| 36. |
VOE20412953
|
[1] |
Gasket
|
|
| 37. |
VOE11127534
|
[1] |
Protecting plate
|
|
| 38. |
VOE946441
|
[2] |
Flange screw
|
|
