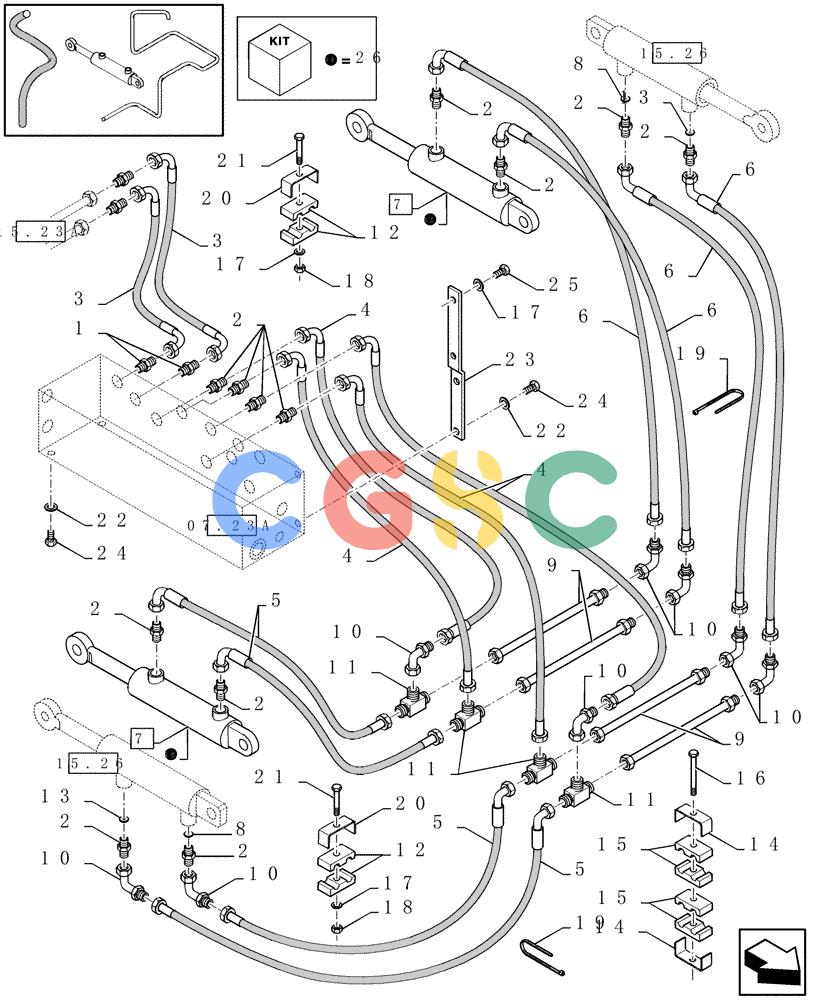

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (07.21A[01]) - HYDRAULICS - D652 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80395782
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395782
|
| 2. |
80386215
|
[12] |
HYD CONNECTOR
|
ZED
Superseded by part number: 386215
|
| 3. |
84821254
|
[2] |
FLEXIBLE HOSE
|
PLO
|
| 4. |
84446084
|
[4] |
HYDRAULIC HOSE
|
PLO
|
| 5. |
84446086
|
[4] |
HYDRAULIC HOSE
|
PLO
|
| 6. |
84821255
|
[4] |
HYDRAULIC HOSE
|
PLO
|
| 7. |
84818032
|
[2] |
HYDRAULIC CYLINDER
|
PLO
(26)
|
| 8. |
84446695
|
[2] |
RESTRICTOR VALVE
|
PLO
|
| 9. |
84821253
|
[4] |
HYD TUBE,8 mm DIA x 2050 mm L
|
PLO
|
| 10. |
80418283
|
[8] |
ELBOW
|
ZED
Superseded by part number: 418283
|
| 11. |
80379430
|
[4] |
3 WAY CONNECTION
|
ZED
Superseded by part number: 379430
|
| 12. |
80430356
|
[4] |
CLAMP
|
ZED
Superseded by part number: 430356
|
| 13. |
80385686
|
[2] |
ORIFICE
|
ZED
Superseded by part number: 84043754
|
| 14. |
80431941
|
[4] |
SUPPORT
|
ZED
Superseded by part number: 431941
|
| 15. |
80430357
|
[8] |
CLAMP
|
ZED
Superseded by part number: 430357
|
| 16. |
86508569
|
[2] |
BOLT,Hex, M6 x 70mm, Cl 8.8
|
NH
|
| 17. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8.2MM Superseded by part number: 322358
|
| 19. |
89993154
|
[10] |
CLAMP
|
ZED
Superseded by part number: 263117
|
| 20. |
80454708
|
[2] |
SUPPORT
|
ZED
|
| 21. |
80120061
|
[2] |
BOLT,M8 x 60mm
|
ZED
M8x60 Superseded by part number: 120061
|
| 22. |
80140045
|
[4] |
WASHER
|
ZED
10.2MM Superseded by part number: 140045
|
| 23. |
84818770
|
[1] |
SUPPORT
|
PLO
|
| 24. |
43138
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 25. |
80120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 26. |
84819502
|
[2] |
SEAL KIT
|
PLO
|
| 18. |
89706690
|
[2] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
