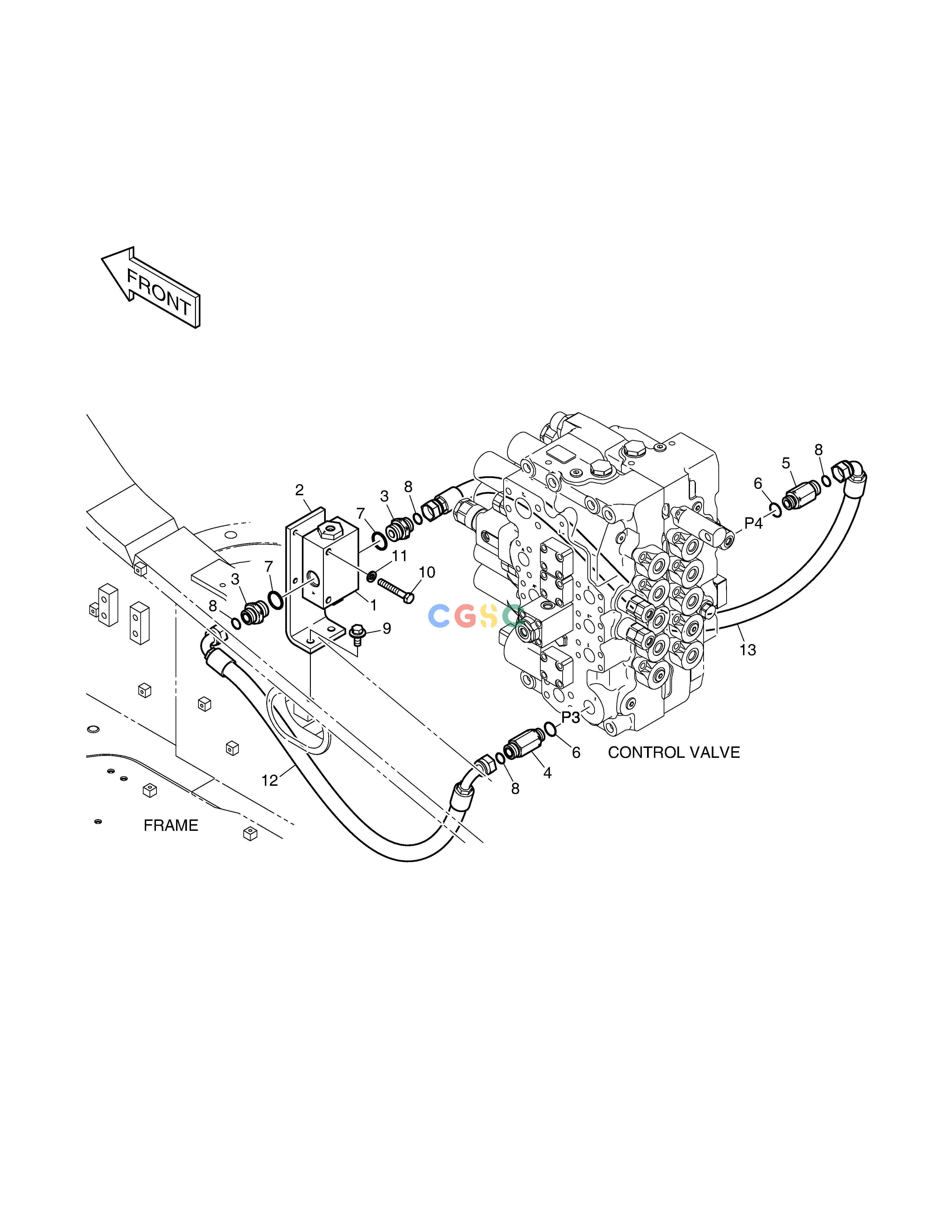

斗山零件查询MAIN PIPING - TWO PUMP DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00822
|
[-] |
|
|
| 1. |
426-00250A
|
[1] |
VALVE;STOP
|
410137-00082
|
| 1. |
410137-00082
|
[1] |
|
|
| 10. |
S0561366
|
[2] |
BOLT
|
|
| 11. |
S5102703
|
[2] |
WASHER
|
|
| 12. |
DS2023092
|
[1] |
|
|
| 13. |
DS2013649
|
[1] |
HOSE
|
|
| 2. |
K1010007
|
[1] |
BRACKET
|
|
| 3. |
2181-2627D15
|
[2] |
ADAPTER
|
DS2232003
|
| 3. |
DS2232003
|
[2] |
ADAPTER
|
|
| 4. |
2181-2627D11
|
[1] |
ADAPTER
|
DS2404011
|
| 4. |
DS2404011
|
[1] |
|
|
| 5. |
2181-2627D3
|
[1] |
ADAPTER
|
DS2404003
|
| 5. |
DS2404003
|
[1] |
|
|
| 6. |
S8000231
|
[2] |
O-RING
|
|
| 7. |
S8000291
|
[2] |
O-RING
|
|
| 8. |
S8030121
|
[4] |
O-RING
|
|
| 9. |
DS0025020
|
[2] |
BOLT
|
|
