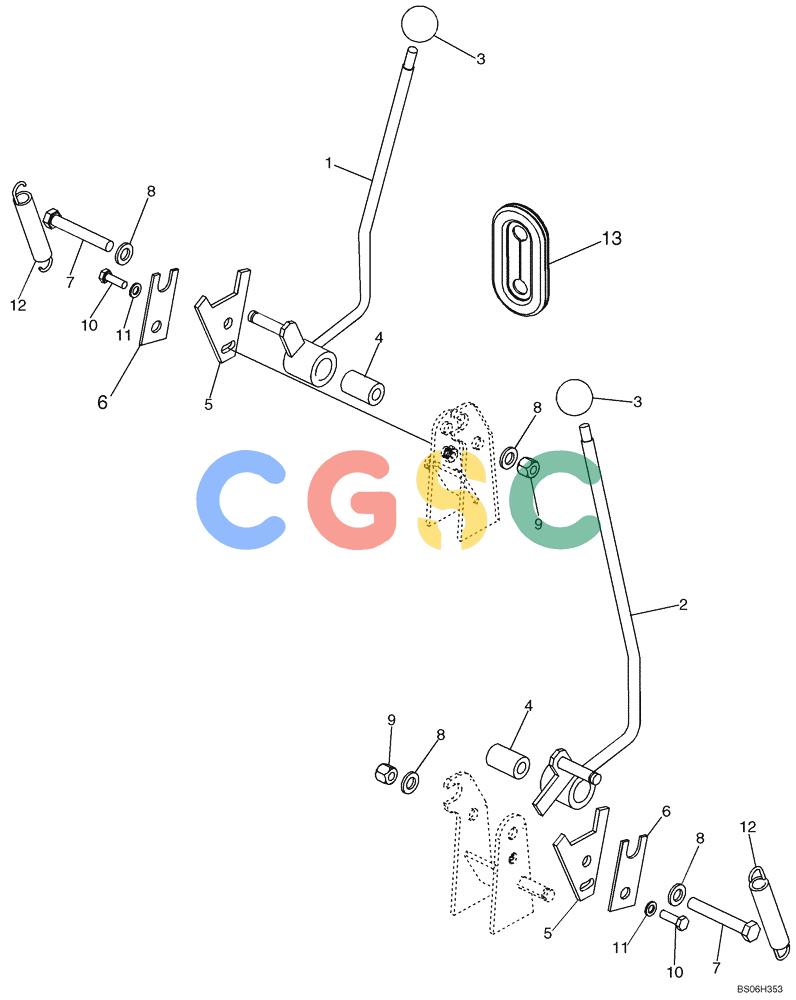

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (07-04) - BRAKE, PARKING/LOCKOUT LEVERS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067241 | [1] | LEVER | LECLockout; Left-Hand |
| 2. | 87364034 | [1] | LEVER | BURLockout; Right-Hand |
| 3. | 76067250 | [2] | HANDLE GRIP | LECBall, M10; Use With Loctite 243 |
| 4. | 76067251 | [2] | BUSHING | LEC25 OD x 40 mm lg |
| 5. | 76067421 | [2] | YOKE | LECPlate |
| 6. | 76067420 | [2] | PLATE | LECSensor Mount |
| 7. | 827-12080 | [2] | BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9 | CAS Superseded by part number: 412085 |
| 8. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 9. | 832-10412 | [2] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 10. | 614-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 11. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 12. | 76067454 | [2] | SPRING | LEC |
| 13. | 76067249 | [2] | SHIELD | LECSeal |
