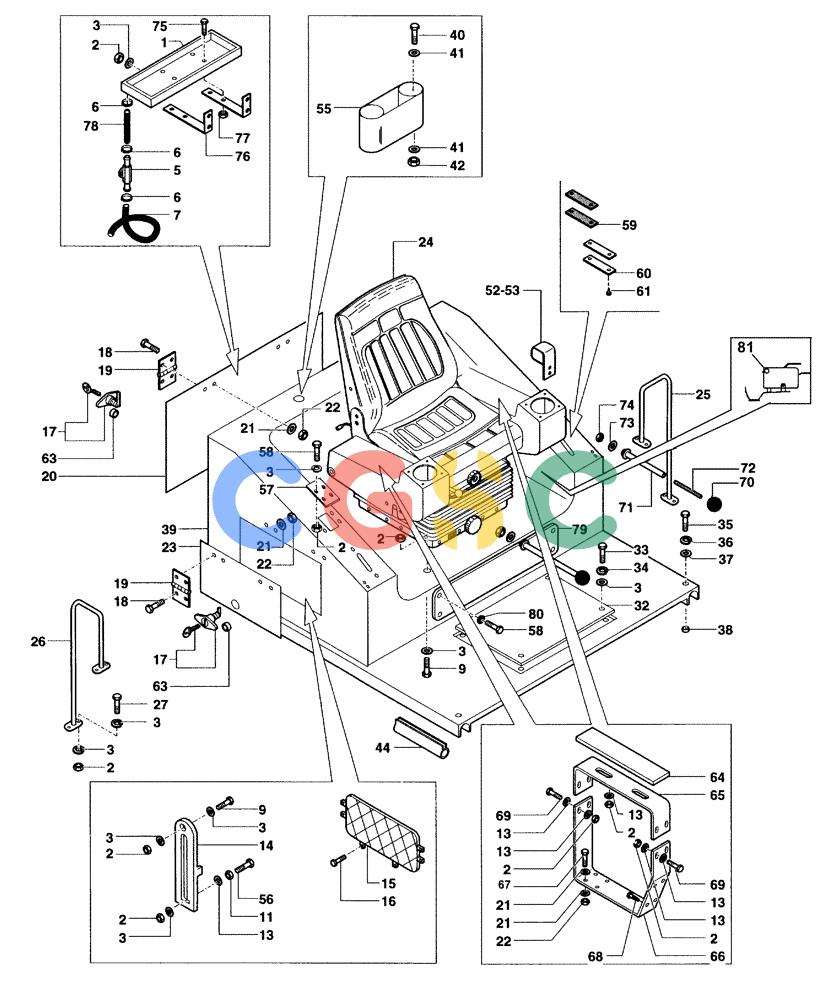

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (5.669[01P]) - OPERATOR'S COMPARTMENT - (DC100 STD. S/N 13111123 TO 13111229; LGP S/N 13115020 TO 13115068) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76609657 | [1] | PAN | MAC |
| 2. | 76590848 | [36] | NUT | MAC- SELF-LOCKING Superseded by part number: 15503611 |
| 3. | 76590847 | [24] | WASHER | MAC Superseded by part number: 10519624 |
| 5. | 76609658 | [1] | DRAINCOCK/TAP SUPPLY | MAC |
| 6. | 76590893 | [1] | CLAMP | MAC Superseded by part number: 12178990 |
| 7. | 76609659 | [1] | FLEXIBLE HOSE | MAC |
| 9. | 76590928 | [7] | SCREW | MAC Superseded by part number: 16043824 |
| 11. | 76590929 | [3] | NUT | MAC Superseded by part number: 43362 |
| 13. | 76590895 | [15] | WASHER | MAC Superseded by part number: 86639313 |
| 14. | 76591345 | [3] | STOP DEVICE | MAC |
| 15. | 76591346 | [1] | UTILITY HOLDER | MAC- MANUAL HOLDING |
| 16. | 76593312 | [4] | SCREW | MAC |
| 17. | 76593253 | [3] | LOCK | MAC |
| 17. | 75128717 | [3] | WRENCH | NHKEY, LOCK |
| 18. | 76591349 | [24] | SCREW | MAC Superseded by part number: 14441431 |
| 19. | 76593313 | [6] | HINGE | MAC |
| 20. | 76591351 | [1] | COVER | MAC |
| 21. | 76592882 | [32] | WASHER | MAC Superseded by part number: 12640604 |
| 22. | 76590934 | [28] | NUT | MAC- SELF-LOCKING Superseded by part number: 12574221 |
| 23. | 76606034 | [2] | COVER | MAC |
| 24. | 76609972 | [1] | DRIVER SEAT | MAC |
| 25. | 76591356 | [1] | HANDLE | MAC- GRAB |
| 26. | 76591357 | [1] | HANDRAIL | MAC- GRAB |
| 32. | 76591363 | [1] | COVER | MAC |
| 33. | 76591364 | [4] | SCREW | MAC Superseded by part number: 628-8020 |
| 34. | 76598290 | [4] | LOCK WASHER | MAC Superseded by part number: 11194079 |
| 35. | 76598502 | [1] | SCREW | MAC |
| 36. | 76598239 | [4] | LOCK WASHER | MAC Superseded by part number: 76605521 |
| 38. | 76591369 | [4] | SPACER | MAC |
| 39. | 76606035 | [1] | SUPPORT | MACSUPPORT |
| 40. | 76590719 | [9] | SCREW | MAC Superseded by part number: 9706704 |
| 41. | 76590713 | [18] | WASHER | MAC Superseded by part number: 14496621 |
| 42. | 76590715 | [9] | NUT | MAC |
| 44. | 76591375 | [1] | RUBBER WEATHERSTRIP | MAC |
| 52. | 76591383 | [1] | SUPPORT | MAC |
| 53. | 76591384 | [1] | SUPPORT | MAC |
| 55. | 76606041 | [1] | UTILITY HOLDER | MAC |
| 56. | 76598511 | [3] | SCREW | MAC |
| 57. | 76593314 | [1] | COVER | MAC |
| 58. | 76590845 | [8] | SCREW | MAC |
| 59. | 76593316 | [2] | GASKET | MAC |
| 60. | 76593317 | [2] | CLIP | MAC |
| 61. | 76593318 | [4] | RIVET | MAC Superseded by part number: 87032572 |
| 63. | 76593309 | [3] | SPACER | MAC |
| 64. | 76598505 | [2] | SEAT ACCESSORY | MAC- ARMREST |
| 65. | 76598506 | [1] | SEAT ACCESSORY | MAC- SUPPORT |
| 66. | 76598507 | [1] | SEAT ACCESSORY | MAC- SUPPORT |
| 67. | 76590872 | [4] | SCREW | MAC Superseded by part number: 120100 |
| 68. | 76598458 | [4] | SCREW | MAC |
| 70. | 76605345 | [2] | KNOB | MAC |
| 71. | 76606036 | [2] | ROD | MAC |
| 72. | 76606037 | [2] | TIE-ROD | MAC |
| 73. | 76590716 | [2] | WASHER | MAC |
| 74. | 76590744 | [2] | NUT | MAC Superseded by part number: 12577521 |
| 75. | 76609660 | [4] | SCREW | MAC |
| 76. | 76609661 | [2] | SUPPORT | MAC |
| 79. | 76598821 | [1] | SWITCH ASSY | MACCOVER Superseded by part number: 82845267 |
| 80. | 76591021 | [4] | LOCK WASHER | MAC |
