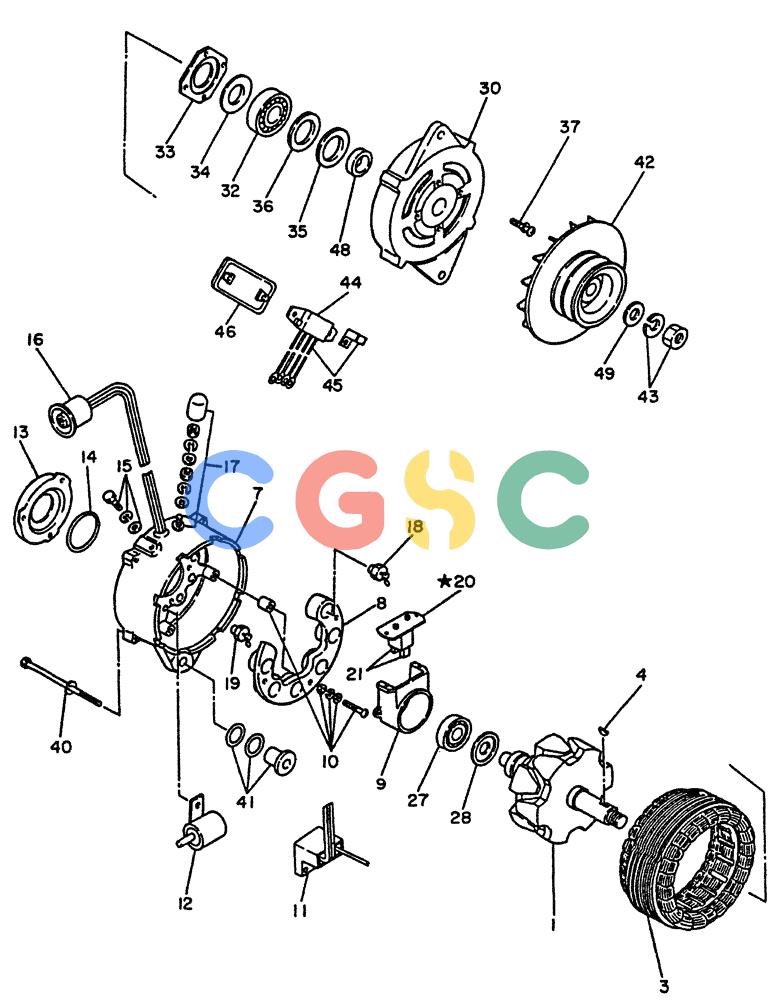

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (07-005) - GENERATOR, (INNER PARTS), (SAWAFUJI MAKE 110A) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-49. | VG2310096178 | [1] | GENERATOR, (BX3) (FOR A1) | |
| 1-49. | VG2310097072 | [1] | GENERATOR GENERATOR, (BX2) (FOR A2) | GENERATOR GENERATOR, (BX2) (FOR A2) |
| 1. | VG2310899115 | [1] | ROTOR ASSY | |
| 3. | VG2310299108 | [1] | COIL-STARTER | |
| 4. | VG0092651900 | [1] | KEY | KOB |
| 7-19. | VG2312799309 | [1] | BRACKET ASSY-REAR | |
| 7. | VG2312899201 | [1] | BRACKET | |
| 8. | VG2310999103 | [1] | HEAT SINK ASSY | |
| 9. | VG2313499010 | [1] | HOUSING | |
| 10. | VG2315799107 | [1] | SCREW SET | |
| 11. | VG2313299001 | [1] | CLARGE LAMP CIR | |
| 12. | VG2312999001 | [1] | CONDENSER | |
| 13. | VG2312699006 | [1] | COVER | |
| 14. | VG2334499009 | [1] | O-RING | |
| 15. | VG2314799101 | [1] | BOLT | |
| 16. | VG2316599200 | [1] | COUPLER ASSY | |
| 17. | VG2314799102 | [1] | TERMINAL ASSY | |
| 18. | VG2313799012 | [6] | DIODE | |
| 19. | VG2313799013 | [6] | DIODE | |
| 20-21. | VG2313399011 | [1] | SCREW | KOB |
| 21. | VG2313599013 | [2] | BRUSH | KOB |
| 27. | VG2312099018 | [1] | BALL BEARING | KOB |
| 28. | VG2311799011 | [1] | COVER | |
| 30-37. | VG2311899100 | [1] | BRACKET ASSY-FRONT | |
| 30. | VG2311999108 | [1] | BRACKET | |
| 32. | VG2313099004 | [1] | BALL BEARING | KOB Superseded by part number: VG23120Z9017 |
| 33. | VG2314599009 | [1] | COVER-BEARING | |
| 34. | VG2311799012 | [1] | COVER | |
| 35. | VG2311699007 | [1] | FELT | |
| 36. | VG2311799013 | [1] | COVER | |
| 37. | VG2315799103 | [4] | SCREW,W/WASHER | |
| 40. | VG2313199018 | [4] | BOLT.W/WASHER | |
| 41. | VG2311599000 | [1] | COLLAR ASSY | |
| 42. | VG2315199309 | [1] | PULLEY ASSY (FOR F1) | |
| 42. | VG2315199215 | [1] | PULLEY ASSY (FOR F1) | |
| 43. | VG2315299005 | [1] | NUT | |
| 44. | VG2350099005 | [1] | REGULATOR | KOBASSEMBLY |
| 45. | VG2345699001 | [1] | CORD ASSY | |
| 46. | VG2320699002 | [1] | COVER | |
| 48. | VG2311599001 | [1] | COLLAR | |
| 49. | VG2312699007 | [1] | WASHER | |
