纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (5.669[02]) - SEAT - SERVICE COMPONENTS DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
564 次

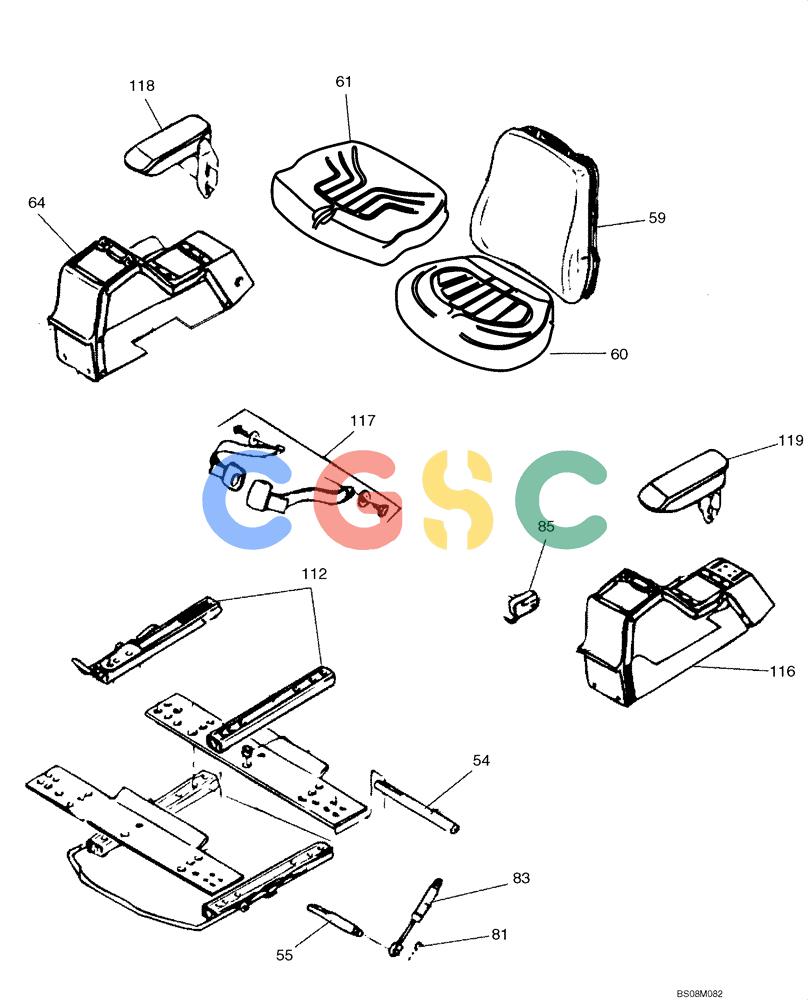

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 54. | 75128971 | [2] | ROD | NH- ARM PIVOT |
| 55. | 75128966 | [2] | ROD | NH- ARM SHOCK ABSORBER MOUNTING |
| 59. | 75128967 | [1] | SEAT BACK | NH |
| 60. | 75128968 | [1] | SEAT CUSHION | NH- Bottom; Vinyl; If Used |
| 61. | 47323104 | [1] | DRIVER SEAT | MAC- Bottom; Vinyl; If Used |
| 64. | 76598820 | [1] | ARM | MAC- ARM RH |
| 81. | V43085 | [1] | LOCK WASHER | WIN- LOCKING Superseded by part number: 81827575 |
| 83. | 76605773 | [2] | GAS STRUT | MAC- ARM PIVOT |
| 85. | 76598821 | [2] | SWITCH ASSY | MAC- SAFETY Superseded by part number: 82845267 |
| 112. | 75128972 | [1] | SLIDE GUIDE | NH- KIT |
| 116. | 76598819 | [1] | GAS STRUT | MAC- ARM LH |
| 117. | 75128973 | [1] | SEAT BELT | NH |
| 118. | 75128969 | [1] | ARMREST | NH- RH Superseded by part number: 254754A1 |
| 119. | 75128970 | [1] | ARMREST | NH- LH Superseded by part number: 85817453 |
