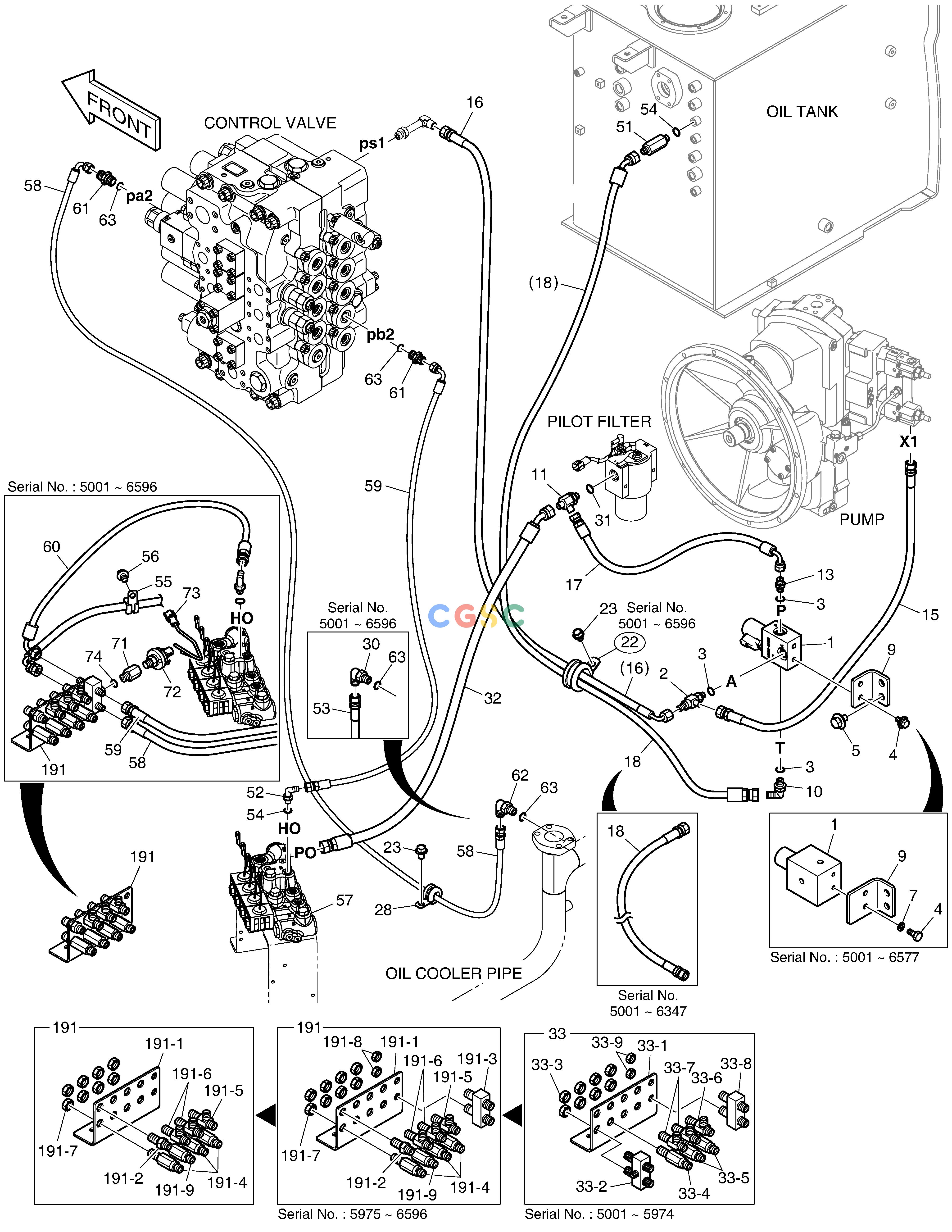

斗山零件查询PILOT PIPING - ONE & TWO WAY DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00820
|
[-] |
|
|
| 1. |
426-00266
|
[1] |
VALVE;EPPR
|
|
| 1. |
410116-00526
|
[1] |
|
|
| 10. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 11. |
2181-1951D19
|
[1] |
TEE
|
|
| 13. |
2471-1133
|
[1] |
FILTER;ADAPTER
|
|
| 15. |
DS2094006
|
[1] |
HOSE
|
|
| 16. |
DS2093118
|
[1] |
HOSE
|
|
| 16. |
DS2093122
|
[1] |
HOSE
|
|
| 17. |
DS2093032
|
[1] |
HOSE
|
|
| 18. |
DS2094113
|
[1] |
HOSE
|
|
| 18. |
DS2092013
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 18. |
DS2092312
|
[1] |
|
|
| 191. |
430216-00004
|
[1] |
|
|
| 191. |
K1044992
|
[1] |
JOINT PLATE SUB ASS'Y
|
430216-00006
|
| 191. |
430216-00006
|
[1] |
|
|
| 191-1. |
K1000354
|
[1] |
PLATE
|
|
| 191-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 191-3. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 191-4. |
DS2410009
|
[3] |
ADAPTER
|
|
| 191-5. |
181-00086D1
|
[1] |
TEE
|
|
| 191-6. |
181-00086D2
|
[2] |
TEE
|
|
| 191-7. |
121-00010D1
|
[8] |
NUT
|
|
| 191-8. |
121-00010D7
|
[2] |
NUT
|
|
| 191-9. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 2. |
181-00779
|
[1] |
TEE
|
|
| 22. |
124-00208D5
|
[1] |
CLIP
|
|
| 23. |
K1001029
|
[2] |
BOLT
|
|
| 28. |
124-00208D2
|
[1] |
CLAMP
|
|
| 3. |
S8000111
|
[4] |
O-RING
|
|
| 30. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 31. |
S8000181
|
[1] |
O-RING
|
|
| 32. |
DS2053393
|
[1] |
HOSE
|
|
| 33. |
K1044992
|
[1] |
JOINT PLATE SUB ASS'Y
|
|
| 33-1. |
K1000354
|
[1] |
PLATE
|
|
| 33-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 33-3. |
121-00010D1
|
[8] |
NUT
|
|
| 33-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 33-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 33-6. |
181-00086D1
|
[1] |
TEE
|
|
| 33-7. |
181-00086D2
|
[2] |
TEE
|
|
| 33-8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 33-9. |
121-00010D7
|
[2] |
NUT
|
|
| 4. |
S0508766
|
[2] |
BOLT
|
|
| 4. |
DS0025033
|
[2] |
BOLT
|
|
| 5. |
DS0025013
|
[2] |
BOLT
|
|
| 51. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 52. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 53. |
DS2093014
|
[1] |
HOSE
|
|
| 54. |
S8000111
|
[2] |
O-RING
|
|
| 55. |
124-00208D2
|
[1] |
CLAMP
|
|
| 56. |
K1001029
|
[1] |
BOLT
|
|
| 57. |
K1047556
|
[1] |
VALVE;SOLENOID
|
|
| 58. |
DS2093163
|
[1] |
HOSE
|
|
| 59. |
DS2093101
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 59. |
DS2093025
|
[1] |
HOSE
|
|
| 60. |
DS2093005
|
[1] |
HOSE
|
|
| 61. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 62. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 63. |
S8000141
|
[3] |
O-RING
|
|
| 7. |
S5102503
|
[2] |
. WASHER
|
|
| 71. |
DS2242017
|
[1] |
REDUCER
|
|
| 72. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 73. |
530-00067
|
[1] |
HARNESS
|
|
| 74. |
S8000111
|
[1] |
O-RING
|
|
| 9. |
195-02711B
|
[1] |
BRACKET
|
|
| 9. |
110425-00201
|
[1] |
|
|
