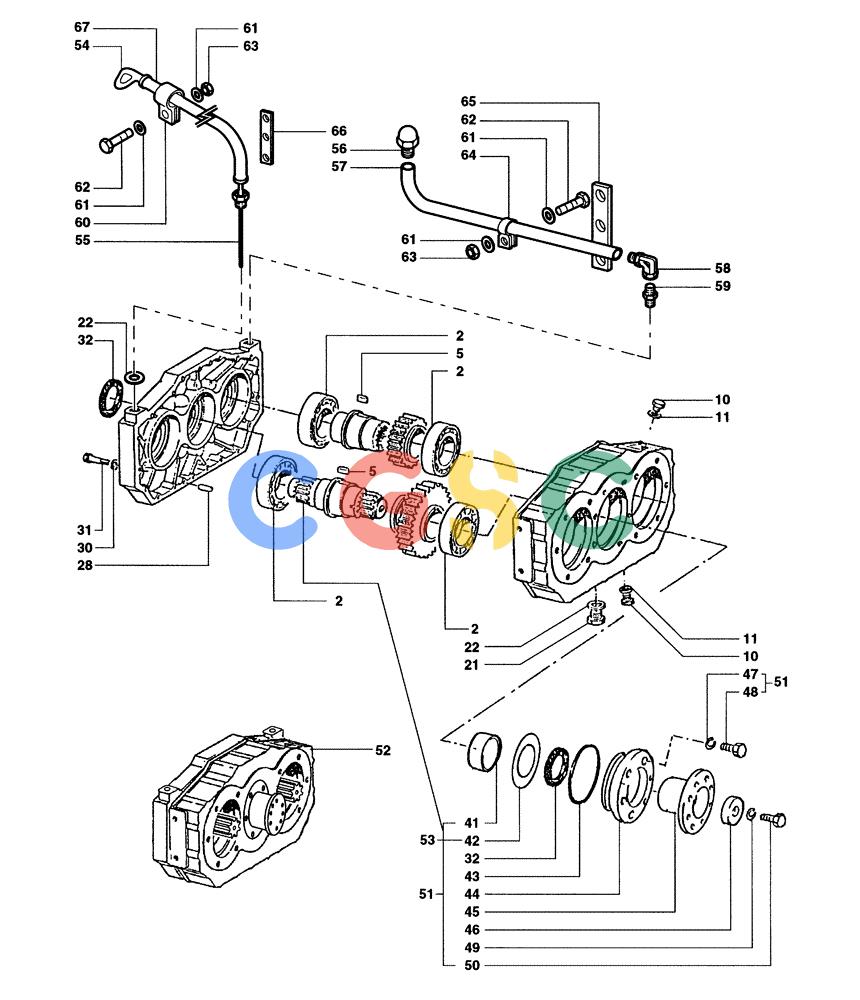

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.323[01C]) - COUPLER WITH ENGINE PTO DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 76596056 | [6] | BEARING | MAC; See Figure 9.380(01E) Ref 6 for Shafts Superseded by part number: 84330092 |
| 5. | 76596057 | [3] | KEY | MAC |
| 10. | 76595993 | [3] | PLUG | MAC |
| 11. | 76592970 | [3] | WASHER | MAC |
| 21. | 76591437 | [2] | PLUG | MAC Superseded by part number: 10304911 |
| 22. | 76591438 | [2] | GASKET | MAC Superseded by part number: 98429280 |
| 28. | 76596058 | [1] | PIN | MAC |
| 30. | 76590721 | [23] | LOCK WASHER | MACLOCHWASHER |
| 31. | 76590714 | [23] | SCREW | MAC Superseded by part number: 9515003 |
| 32. | 76596059 | [2] | GASKET | MACOIL SEAL |
| 41. | 76596060 | [1] | SPACER | MAC |
| 42. | 76591434 | [1] | SHIM | MAC Superseded by part number: 76606889 |
| 43. | 76590938 | [1] | O-RING | MACO'RING Superseded by part number: 70923601 |
| 44. | 76596062 | [1] | COVER | MAC |
| 45. | 76596063 | [1] | FLANGE | MAC |
| 46. | 76596064 | [1] | LOCK WASHER | MACWASHER |
| 48. | 76590946 | [6] | SCREW | LEC |
| 49. | 76590727 | [1] | WASHER | MAC Superseded by part number: 412123 |
| 50. | 76590781 | [1] | SCREW | MAC Superseded by part number: 615-12035 |
| 51. | 76596023 | [1] | COUPLING | MACFLANGE |
| 52. | 76604202 | [1] | QUICK FEMALE COUPLING | MACCOUPLING |
| 53. | 76606889 | [1] | SHIM | MAC |
| 54. | 47323066 | [1] | ROD | MAC |
| 55. | 47323067 | [1] | HYD CONNECTOR | MACFITTING |
| 56. | 47323068 | [1] | PLUG | MAC |
| 57. | 47323069 | [1] | RIGID TUBE | MACHOSE |
| 58. | 47323070 | [1] | HYD CONNECTOR | MACFITTING |
| 59. | 47323071 | [1] | HYD CONNECTOR | MACFITTING |
| 60. | 47323072 | [1] | CLAMP | MAC |
| 61. | 76590713 | [6] | WASHER | MAC Superseded by part number: 14496621 |
| 63. | 47323073 | [3] | NUT | MAC Superseded by part number: 190003888452 |
| 64. | 76593024 | [1] | CLAMP | MAC |
| 65. | 47323074 | [1] | BRACKET | MAC |
| 66. | 47323064 | [1] | BRACKET | MAC |
| 67. | 47323075 | [1] | RIGID TUBE | MACHOSE |
