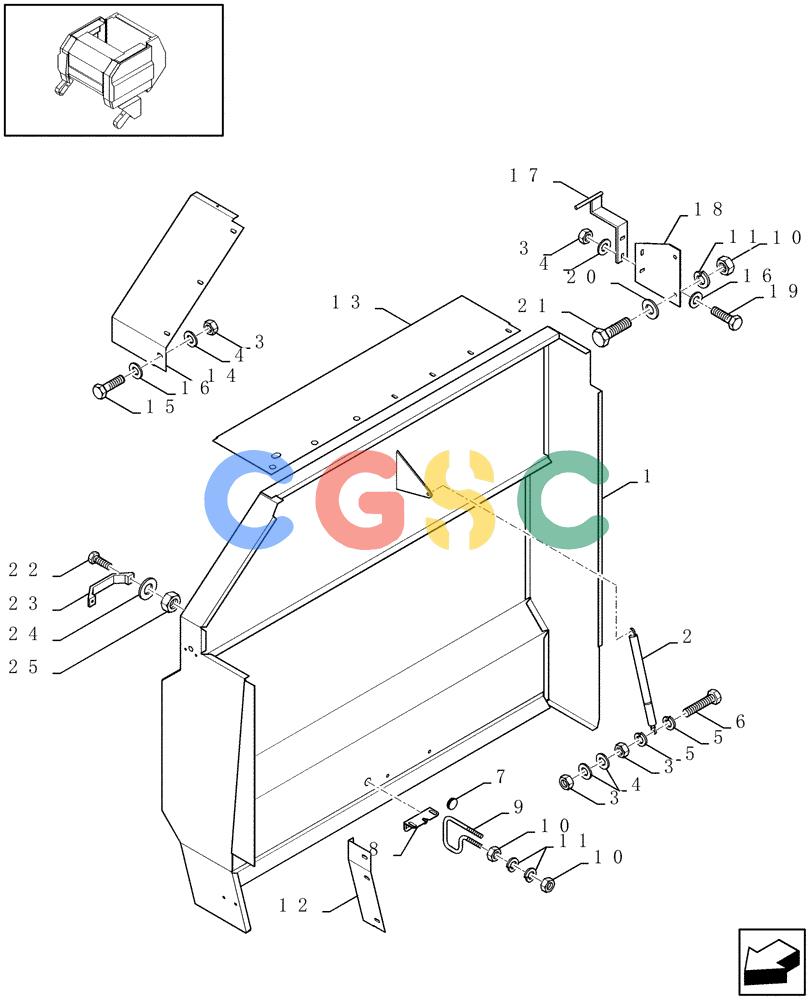

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (08.04[01]) - SHIELDS, RH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84818609
|
[1] |
SHIELD
|
PLO
|
| 2. |
84024982
|
[1] |
SHOCK ABSORBER
|
PLO
|
| 3. |
43362
|
[1] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 4. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 5. |
80394628
|
[4] |
LOCK WASHER
|
ZED
Superseded by part number: 12647121
|
| 6. |
412479
|
[2] |
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
|
NH
|
| 7. |
80331231
|
[1] |
RUBBER BUSHING
|
ZED
Superseded by part number: 285412
|
| 8. |
84015292
|
[1] |
LATCH
|
ZED
|
| 9. |
84001544
|
[1] |
CLAMP
|
ZED
|
| 10. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 12. |
84822212
|
[1] |
COVER PLATE
|
PLO
, Serial Range: -C667 Superseded by part number: 84820644
|
| 12. |
84820644
|
[1] |
COVER PLATE
|
PLO
, Start Serial: D668
|
| 13. |
84822215
|
[1] |
PLATE
|
PLO
|
| 14. |
84822214
|
[1] |
PLATE
|
PLO
|
| 15. |
120104
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 16. |
80378243
|
[1] |
WASHER
|
ZED
Superseded by part number: 378243
|
| 17. |
84822221
|
[1] |
HINGE
|
PLO
|
| 18. |
84024604
|
[2] |
COVER PLATE
|
PLO
|
| 19. |
43128
|
[4] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 20. |
80378244
|
[2] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 21. |
80120111
|
[2] |
SCREW
|
ZED
M10x30 Superseded by part number: 43140
|
| 22. |
80120099
|
[2] |
BOLT,Hex, M6 x 16, 8.8
|
ZED
Superseded by part number: 86508568
|
| 23. |
300131394
|
[1] |
HANDLE
|
PLO
|
| 24. |
80140015
|
[2] |
WASHER
|
ZED
6MM Superseded by part number: 86588450
|
| 25. |
15896221
|
[2] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
